LED Pole Light 150W/120W/100W with Dusk to Dawn Photocell, 5700K, 133LM/W, Universal Mount (Adjustable Slip Fitter + Wall Mount), Bronze, AC120-277V, Waterproof IP65, Parking Lot Lights, Outdoor Area Street Security Lighting Fixture - 1-Pack
- 30 Days Return
- 5 Years Warranty
LED Parking Lot Lights with Photocell, 150W/120W/100W, Bronze, UL, DLC Listed, Dusk to Dawn, LED Shoebox Area Yard Street Lights
Dedicatedly designed to increase safety and security, these LED Pole Lights are the perfect illumination for your outdoor spaces. The most suitable places to install these LED Area Lights are building entrances, parking lots, parkways, streets, gardens, hotel walkways, and other outdoor spaces. Pole lights of 150/120/100 Watt replace metal halide bulbs of 525 Watt and deliver superior lumen output of 19950 lumens and a CCT of 5700K. These high-voltage pole lights are a durable and long-lasting lighting fixture. Tested to last around 50,000 hours. These LED Pole Lights have a robust build and IP65 certification, proving the fixture to be splash and dirt proof. This pole light fixture is photocell compatible (dusk to dawn sensors) and can help you regulate energy usage by automating the ON/ OFF process.
Features of 150W/120W/100W LED Pole Light with Photocell, 5700K - Universal Mount - Bronze, AC120-277V
- Available Wattage: 150W/120W/100W
- Color Temperature Available: 5700K
- Luminous Flux: 19950 Lumens
- Wattage Equivalent: 525W
- Lifespan: 50,000 hours
- Voltage: 120V - 277V
- Color: Bronze
- Mounting Option: Universal Mount [Slip, Direct and Adjustable Mount]
- Photocell Sensor - Yes
- IP65 Rated
- UL, DLC approved
- 5 years of Manufacturer's Warranty

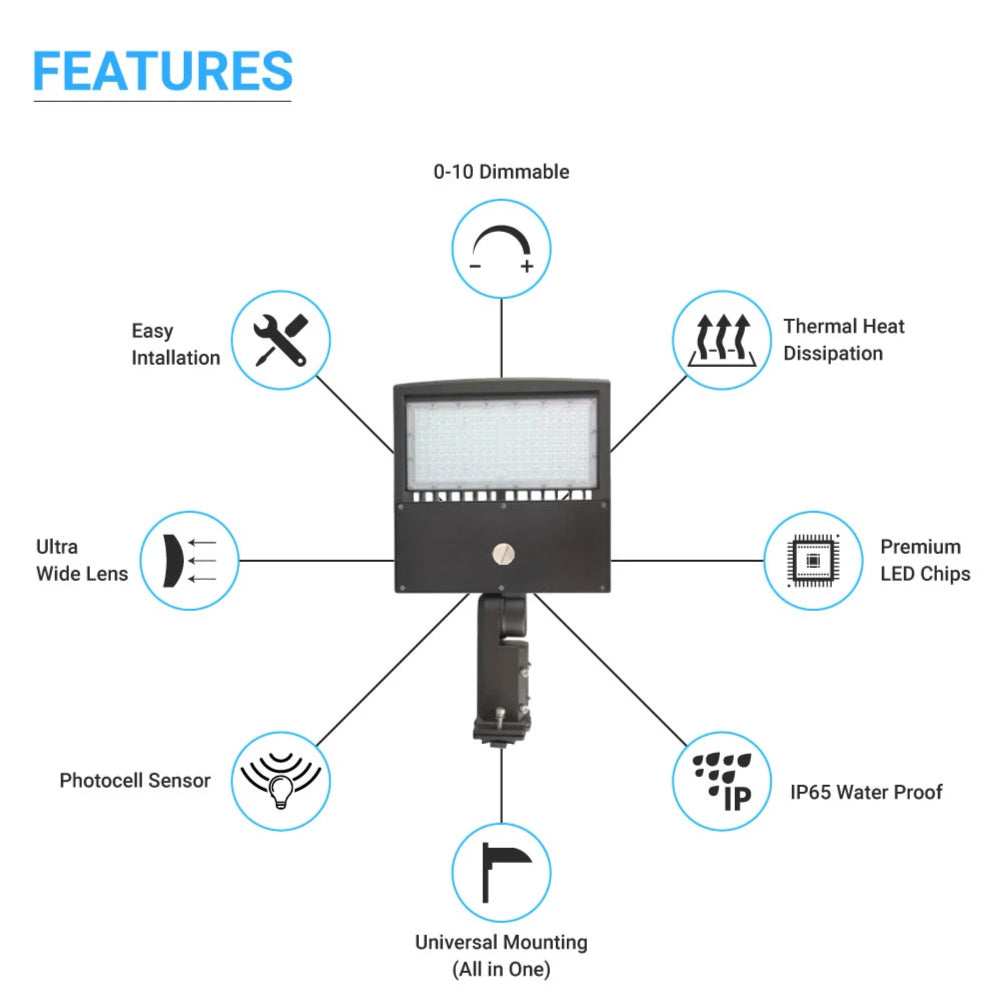

features Specs.
-
Easy Installation
-
UNIVERSAL MOUNTING (All in One)
-
An IP65 Rating for Water-Resistance
-
Polycarbonate Optics
-
Commercial Grade Construction- For Optimal Performance and Durability
-
Thermal Heat Dissipation
-
Ultra Wide Angle Lens
-
Premium LED Chips
-
0-10 Dimmable
-
CRI >80
-
Low Cost Maintenance
-
Dusk To Dawn Sensor
-
Vibration Test Passed
-
Rebate Eligible
-
Compatible Dimmers
Easy Installation:
Extremely easy to install, these lights come with a universal mount, giving you the option to install them in any desired location be it a yoke, adjustable slip fitter, knuckle mounting, or just a plain wall.

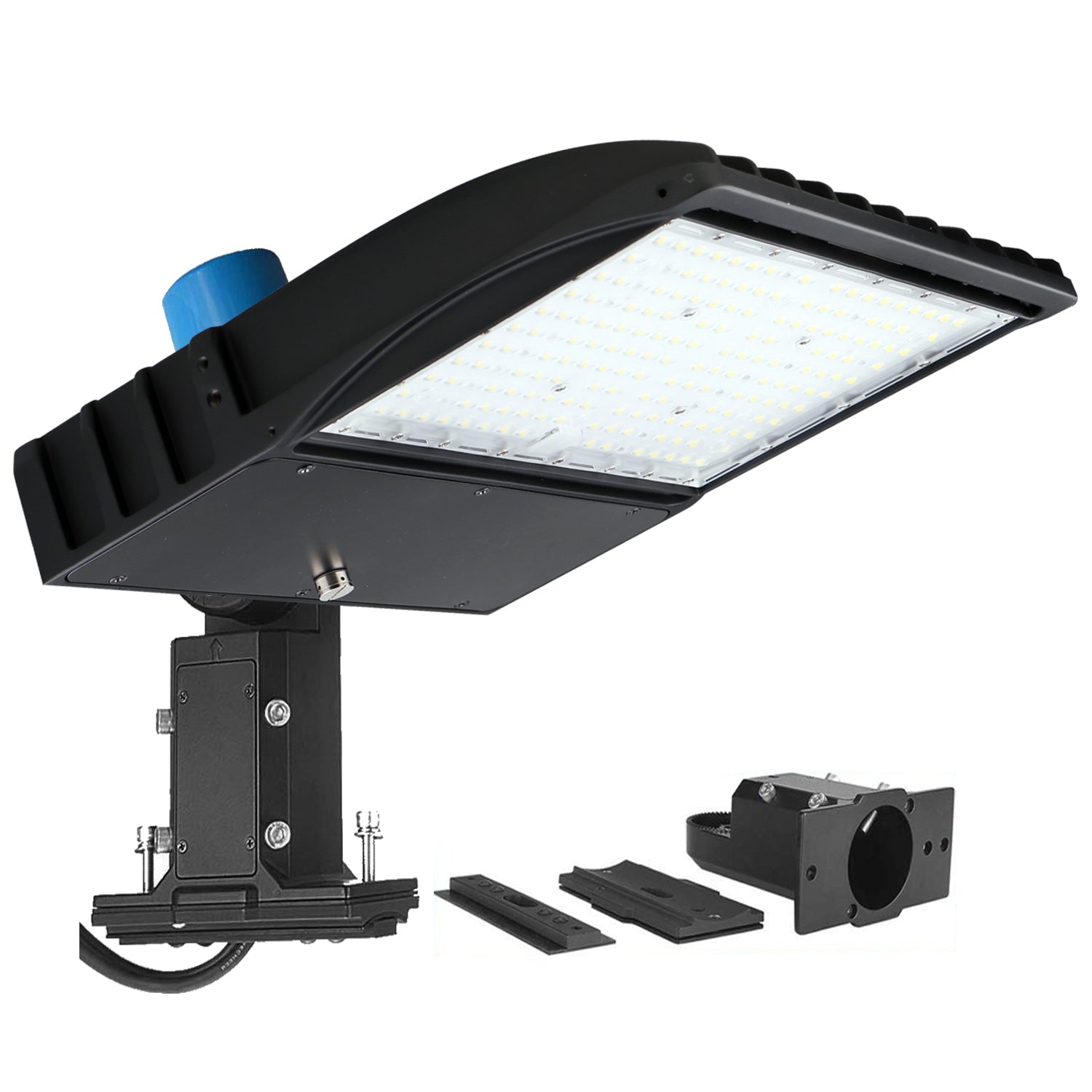

UNIVERSAL MOUNTING (All in One)
LEDMyplace offers one of the best mounting options that lowers your installation costs by enabling a hassle-free, easy self-installation. This is suitable for both kinds of poles - round, square and also for wall mounting with flexibility to adjust the head. Apart from easy self-installation, the universal mounting option also reduces your time by not requiring any re-drilling or cutting any pole tops when allowing for a change in the mounting process. With just two holes inside the poles and with just two bolts, you can easily undertake Universal Mounting. Our 150W LED pole light luminaire thus enables mounting in two ways -- vertical and horizontal. And, what you get out of these options is -- an enhanced optical control and to a certain degree the luminaire efficiency.
An IP65 Rating for Water-Resistance:
This LED pole light comes with an IP65 certified driver that can withstand harsh weather conditions. The lighting fixture is designed and tested to resist ingress of dust, dirt, or water (from the water jet or rainfall) making them dust and splash-proof. Hence, these LED Pole lights are ideal to use in outdoor locations where there are chances of dust, dirt, and dampness.
Polycarbonate Optics - For Optimal Performance and Durability:
Polycarbonate is used as an outer coating for our LED Pole light which results in optimal lighting performance and durability. The polycarbonate is responsible for dimensional stability, and high resistance towards external heat and any other impact.
Rugged Construction:
LED Pole lights have a robust build and simple design. With rugged aluminum casing on the outside, our outdoor area lights are built for durability. These lights can handle wind, dust, moisture, or snow. With a sturdy build and a tested lifespan of 50,000 hours our LED lights are a superior luminaire compared to HID or metal-halide lamps.
Thermal Heat Dissipation:
The High performance modular LED street light fixtures are engineered to remove heat through quality thermal management. For efficient and effective dissipation of heat, aluminum is used in the heat sink inside these high voltage pole lights. Being a good conductor aluminum can dissipate heat more easily. Giving these lights better durability and performance.
Ultra Wide Angle Lens
The PCB mounted LED technology comprised of multi-cluster LED's on single metal core board and is available in various color temperature options of 3000K, 4000K and 5700K with CRI of 80 minimum. Polycarbonate prismatic optics ensure longevity and maximise dirt and bug resistance. Zero uptight optics reduce sky glow and meets Dark Sky requirements. Our special polycarbonate optics provide overlapping pattern on application space eliminating dark spots. The use of ultra wide angled polycarbonate optics provides high application efficacy, uniformity, and glare control, with more uniformed light distribution, especially over wide areas and spaces.

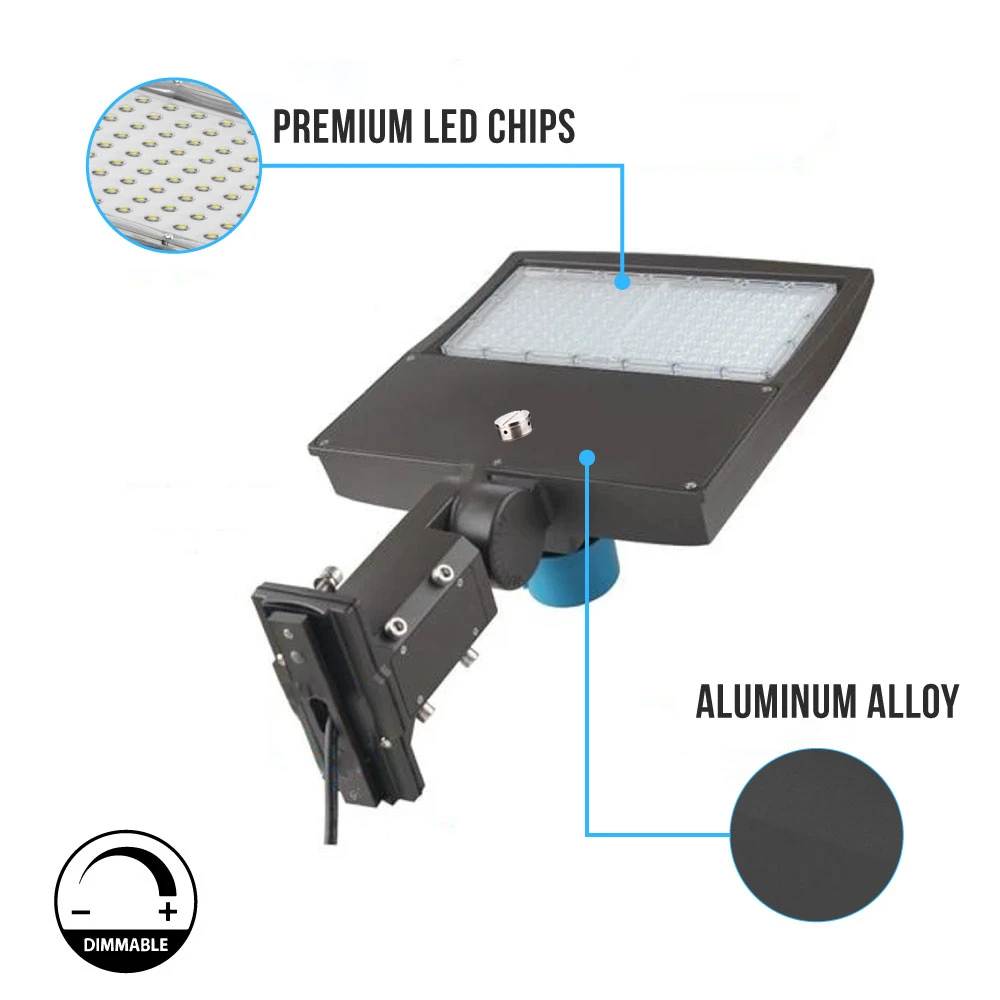

Premium LED Chips:
Customer satisfaction is our first priority, that's why we ensure the best quality by using premium quality chips inside our LED light fixtures making them work with the highest operational efficiency.
Dimmable
The dimmable fixtures are the ideal replacement for traditional incandescent metal halide bulbs in terms of light quality, output, and compatibility. LEDMyplace's wide array of dimmable lighting results in easy to adjust light intensity at the location. Even at very minimal light levels, these Pole Lights remain stable and pure.
>80 CRI:
The LED Pole light has a Color Rendering Index(CRI) of 70, which means the colors you see under this light are accurate up to 70% compared to daylight(CRI=100).
Low-Cost Maintenance:
The LED pole lights are extremely low maintenance as it uses the latest LED technology. Moreover, with a low lumen depreciation, these lights function flawlessly until the end of their lifespan reducing maintenance costs.
Dusk To Dawn Sensor
Depending upon the amount of light reaching the fixture, the Dusk to Dawn sensor gets automatically trigerred. This sensor light fixture will Auto On at night, Auto off in Daytime, Built -in Photocell Sensor will work automatically according to surrounding brightness. These sensors improve the security and safety at the location by automatically turning on lights when it gets dark or they detect motion. This results in auto-energy saving, when lights get turned off.
Vibration Test Pass
It is required to test the luminaires for assuring that the fixtures are resistant to vibration. All our LED Lights have cleared pre-qualified tests for vibration. The vibration testing makes sure that the LED fixtures do not have any lack such as; loose parts, structural damage, power off, or any other anomalies.
Rebate Eligible:
LED pole lights are DLC-approved products, which makes you eligible for rebates and other incentives.
Compatible Dimmers
This product is compatible with the following dimmers. These dimmers work perfectly with our lights.
- DS710
- IP710
- NTSTV-DV
- NFTV
- DVTV-WH
- H4FBL3PW
**For any other Dimmer please contact our customer support or check with your electrician.
Installation Instruction
Specifications
| Beam Angle: | 150x80° Beam Angle |
| Certifications: | UL, DLC Listed |
| Color Temperature (Kelvin): | 5700 Kelvin |
| Dimmable: | 1-10V Dimmable |
| Fixture Color: | Bronze |
| IP Rating: | IP65 Rated |
| Lumens: | 19950 Lumens |
| Power Factor: | ≥0.9 |
| SKU: | WEN-S-G07-150WCT3A1-BRPA&D5700K-W-PCELL |
| Warranty: | 5 Years |
| Operating Temperature: | -4 Degree F To +113 Degree F |
| Brand: | LEDMyplace |
| Color Rendering Index(CRI): | >80 CRI |

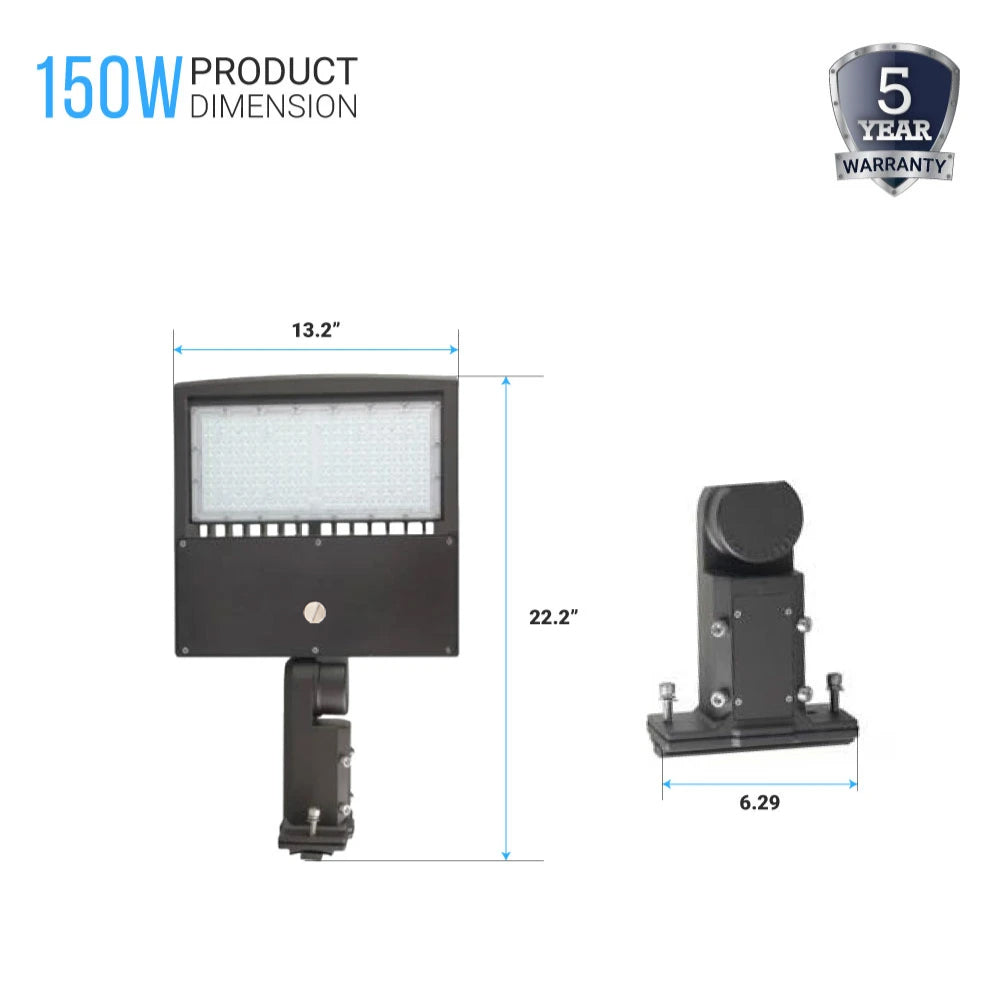

| Dimensions (L x W x H): | 23 x 15.2 x 6.3 |
| DLC Listed: | Yes |
| Housing: | Aluminum |
| Life Hours: | 50,000 Hours |
| MPN (Part No.): | PL021 |
| Replaces: | 525 Watt Replacement |
| Voltage: | 120-277 Volt |
| Wattage: | 150/120/100 Watt |
