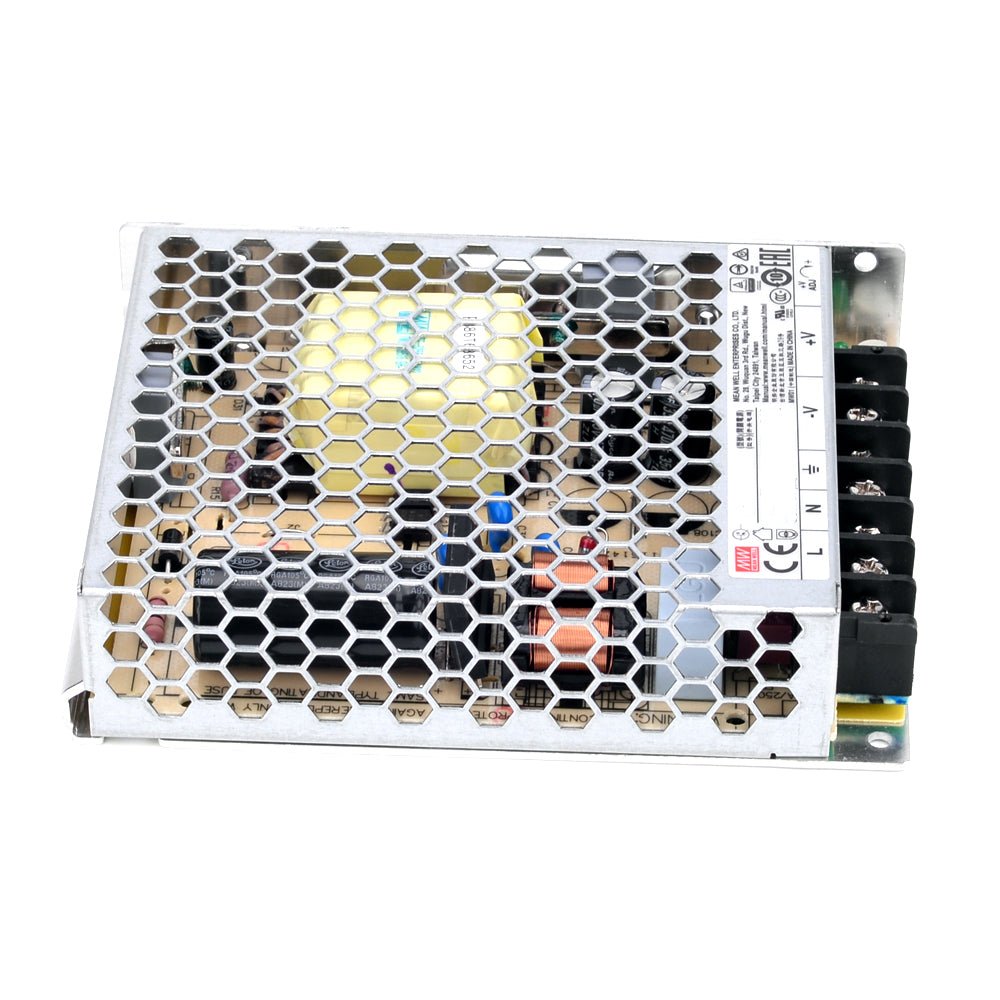

Available in 30mm of low profile design, this 150W Meanwell driver is a single-output enclosed power supply. With an input voltage range between 100-240VAC, an output voltage of 12VDC can be supplied. While the metallic mesh design enables efficient heat-dissipation, the driver is capable of delivering power efficiency of up to 90%. With a no-load power consumption of <0.5W, this driver meets the global energy requirement. Complies with international safety regulations while also serving as a high price-performance power supply solution for various industrial or commercial applications.
-
Selectable AC input range.
-
Withstand 300VAC surge input for at least 5s.
-
High operating temperature up to 158° F.
-
Protected against short-circuit, overload and overvoltage.
-
The free air convection allows for cooling.
-
Can withstand up to 5G vibration test.
-
100% full load burn-in test.
-
Power On LED indicator provided.
-
Can be operated at an altitude of up to 5000 meters.
-
3 years of hassle-free manufacturer's warranty.
Specifications
Brand: | LEDMyplace |
MPN (Part No.): | ST058 |
UPC: | 719034344485 |
Wattage: | 150W |
LED Type: | Meanwell Driver |
SKU: | WEN-LRS-150-12 |
Voltage: | 12VDC |
