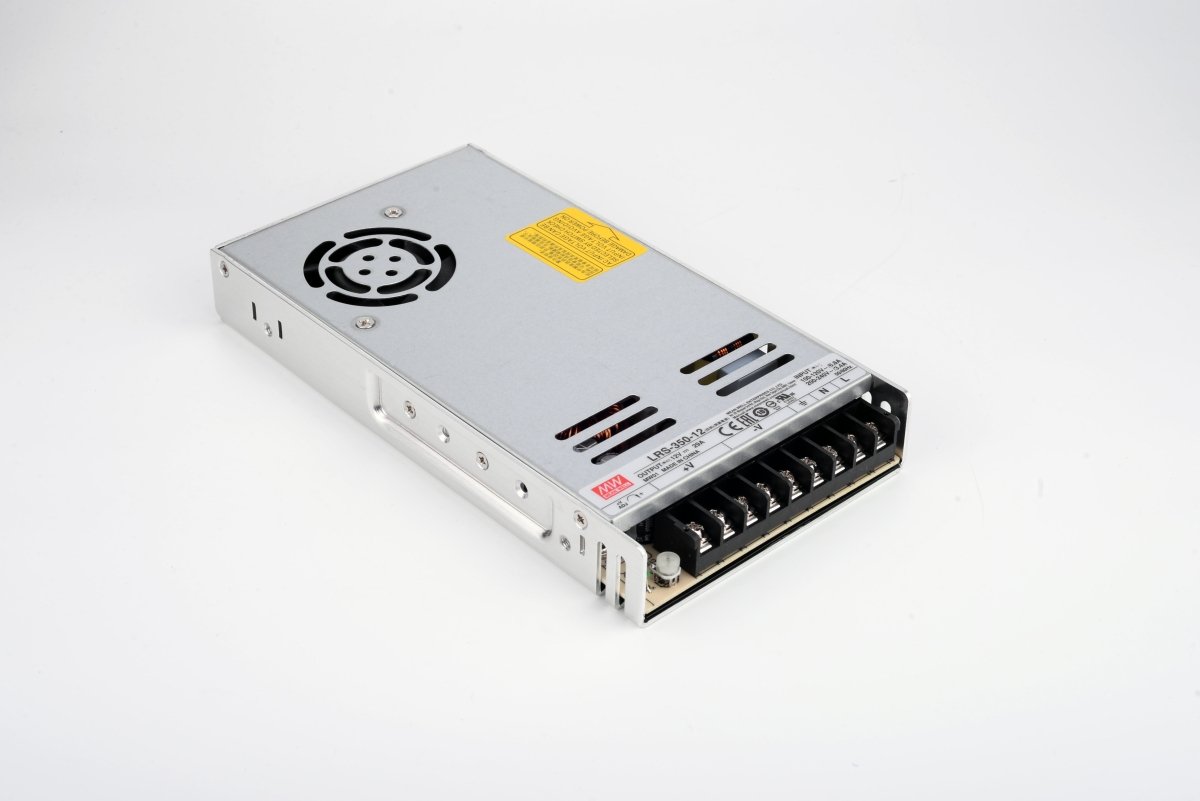

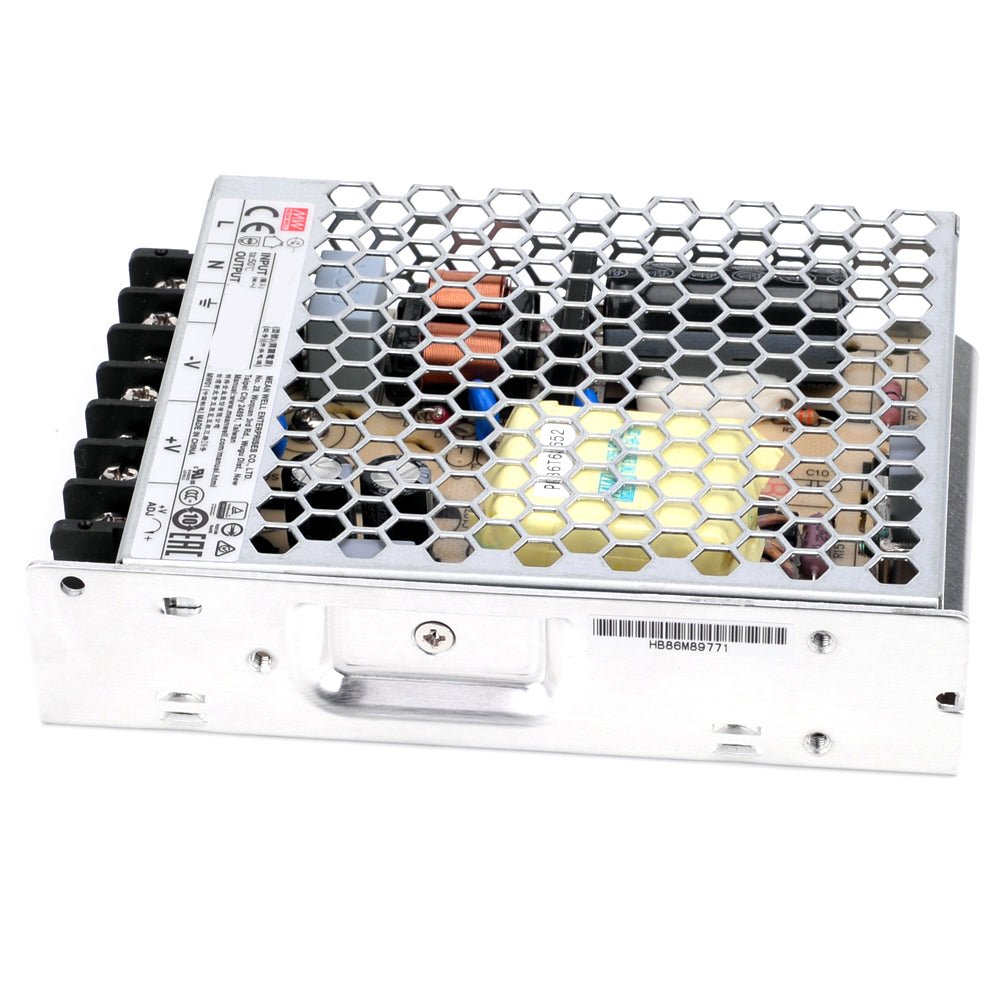

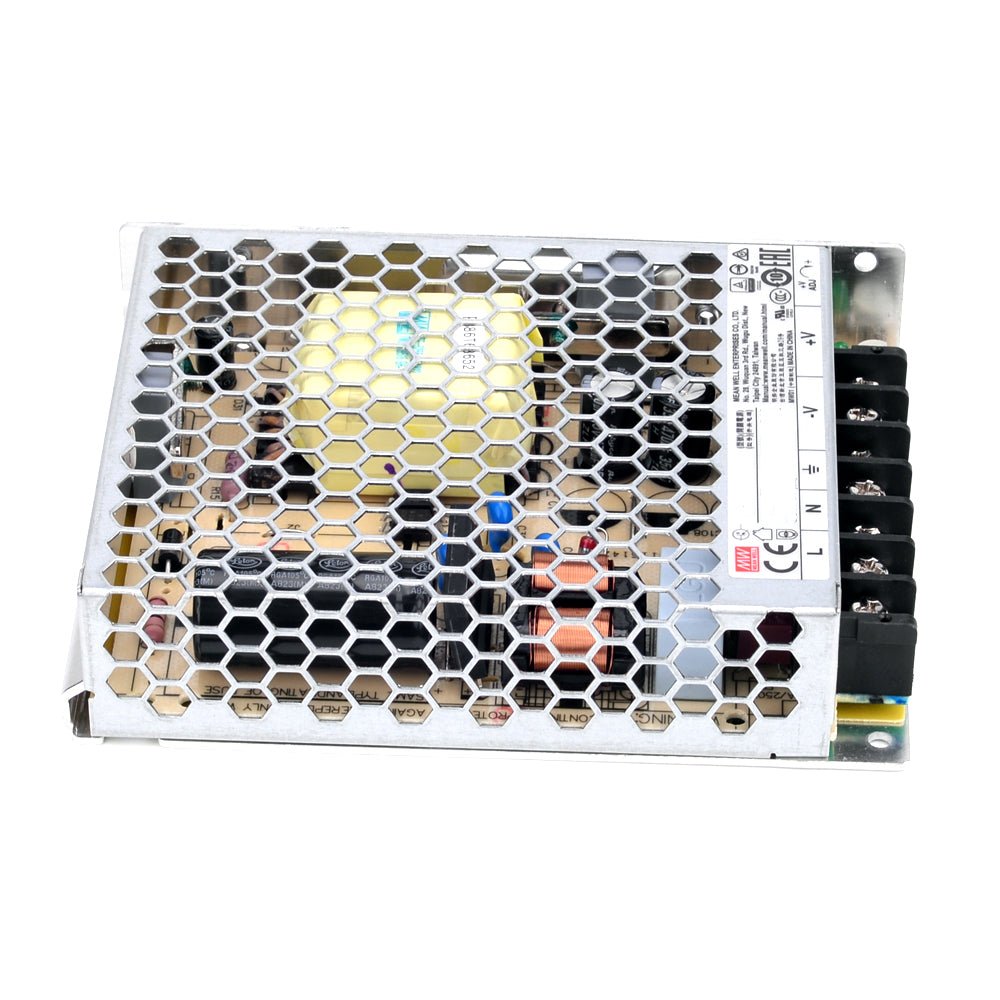

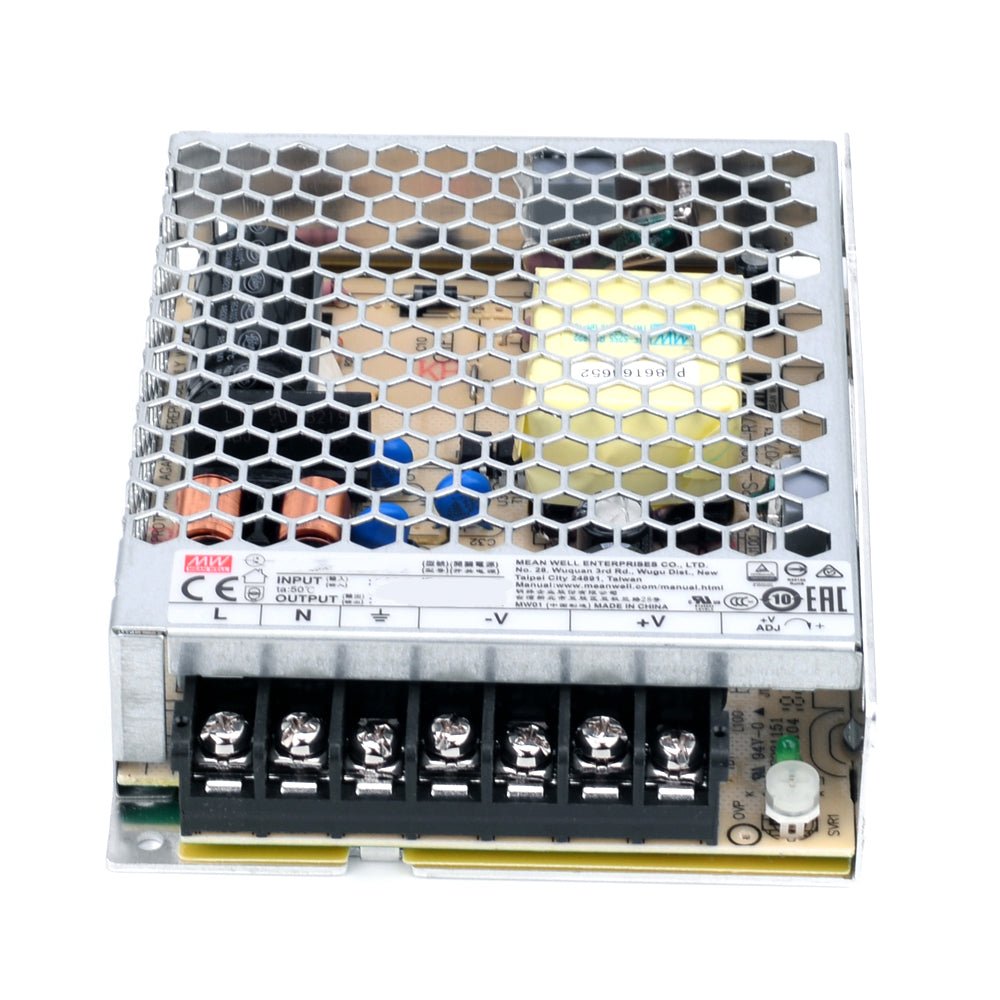

150W Meanwell Driver 150W / 100-240V AC / 24V /0-6.5A
The 150W Meanwell driver AC single output power supply in 30mm of low profile design is a single-output enclosed type power supply. With an input voltage range between 100-240VAC, the output voltage is 24VDC. The power efficiency of up to 90% can be achieved through this driver. Allowing for no load power consumption of <0.5W, this driver meets the global energy requirement. The metallic mesh case design enhances heat dissipation. Complies with international safety regulations while also serving as a high price-performance power supply solution for various industrial or commercial applications.
-
Universal AC input/full range.
-
Withstand 300VAC surge input for at least 5s.
-
High operating temperature up to (-) 22°F to (+)158° F.
-
Protected against short-circuit, overload and overvoltage.
-
The free air convection allows for cooling.
-
Can withstand up to 5G vibration test.
-
100% full load burn-in test.
-
Power On LED indicator available.
-
Can be operated at an altitude of up to 5000 meters.
-
3 years of hassle-free manufacturer's warranty.
Specifications
| Brand: | LEDMyplace |
| MPN (Part No.): | ST059 |
| UPC: | 719034344492 |
| Wattage: | 150W |
| LED Type: | Meanwell Driver |
| SKU: | WEN-LRS-150-24 |
| Voltage: | 24VDC |
