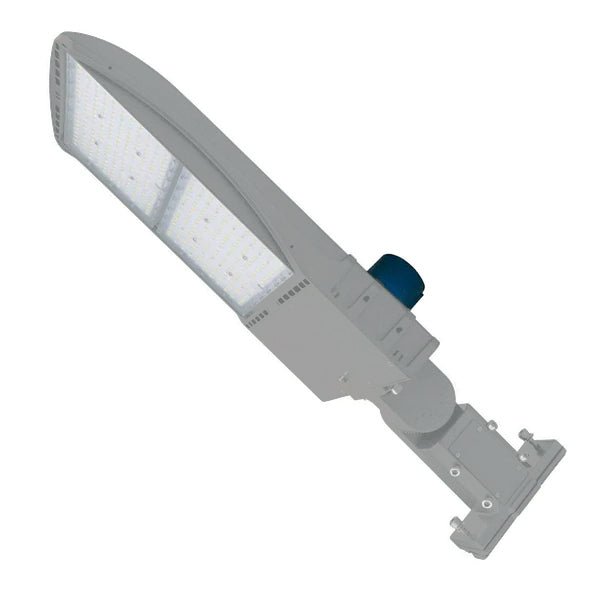

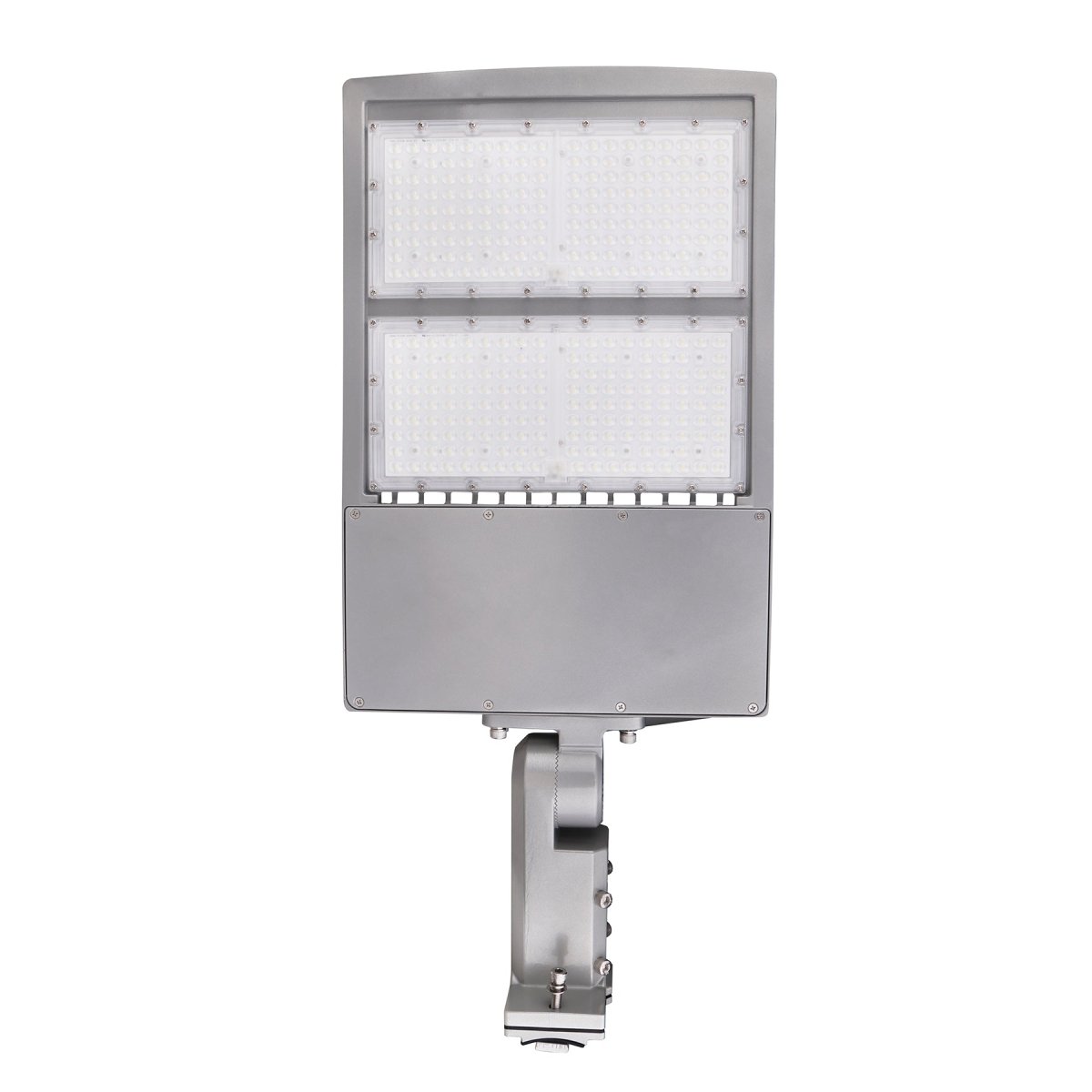

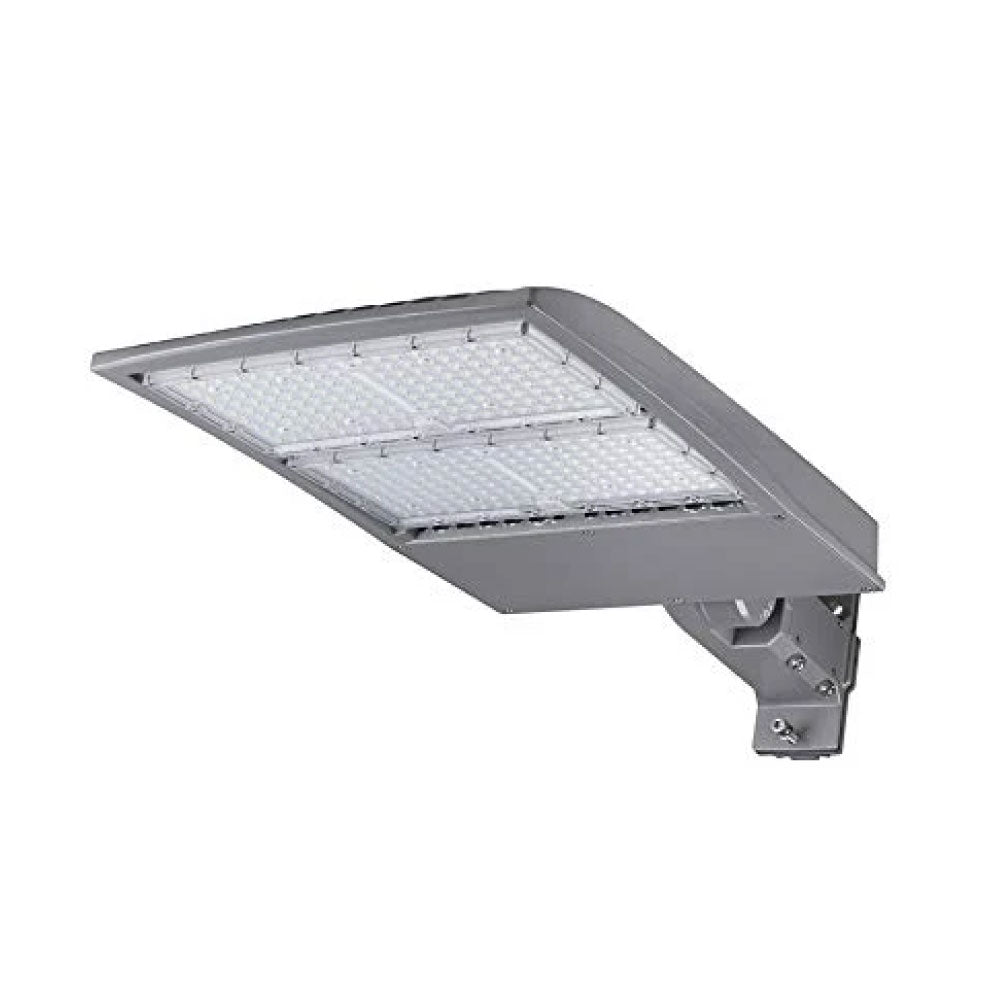

LED Pole Light with Dusk to Dawn Photocell, 300W/240W/200W Wattage Adjustable, 5700K, 133 LM/W, Universal Mount (Adjustable Slip Fitter + Wall Mount), Silver, IP65 Waterproof, AC100-277V, LED Parking Lot Lights - Outdoor Commercial Area Street Lighting, - 1-Pack
- Free Shipping
- 30 Days Return
- 5 Years Warranty
LED PARKING LOT LIGHTS WITH PHOTOCELL, 300W/240W/200W Wattage Adjustable, IP65 RATED, UL, DLC CERTIFICATIONS, LED SHOEBOX LIGHTS
The Gen14B LED Shoebox Light offers powerful 300W illumination with a bright 5700K color temperature. With a stylish silver finish, this light features a built-in photocell and A&DM technology for automatic, efficient operation. It has selectable wattages of 300W, 240W, and 200W, operating on an input voltage of AC120-277V, factory-set at 300W. Perfect for parking lots, streets, and large outdoor areas, this light blends durability with energy efficiency.
Product Highlights
- Powerful Lighting: Delivers up to 300W of bright, clear 5700K light for enhanced visibility and security.
- Automatic Operation: Integrated photocell for dusk-to-dawn functionality, saving energy and providing convenience.
- Adjustable Wattage: Choose from 300W, 240W, and 200W settings to suit different lighting requirements.
- Energy Efficient: Runs on AC120-277V, ensuring optimal performance and significant energy savings.
- Sleek Silver Finish: Combines a modern look with long-lasting durability for outdoor use.

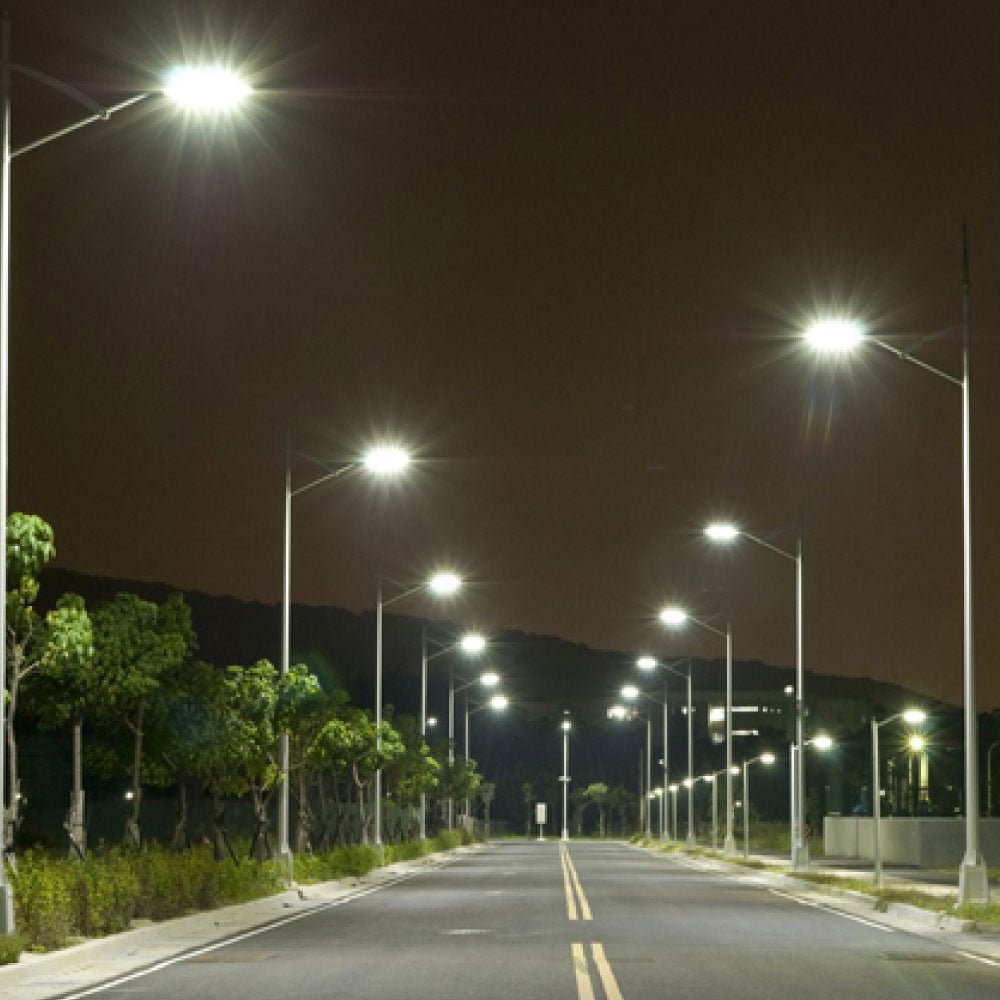

- Versatile Use: Ideal for illuminating parking lots, streets, and large outdoor areas with reliable brightness.
- Pre-Set Efficiency: Factory-set at 300W for maximum brightness and efficiency right out of the box.
Advanced Features: Equipped with A&DM (Auto & Dimming Module) for improved functionality and energy management.

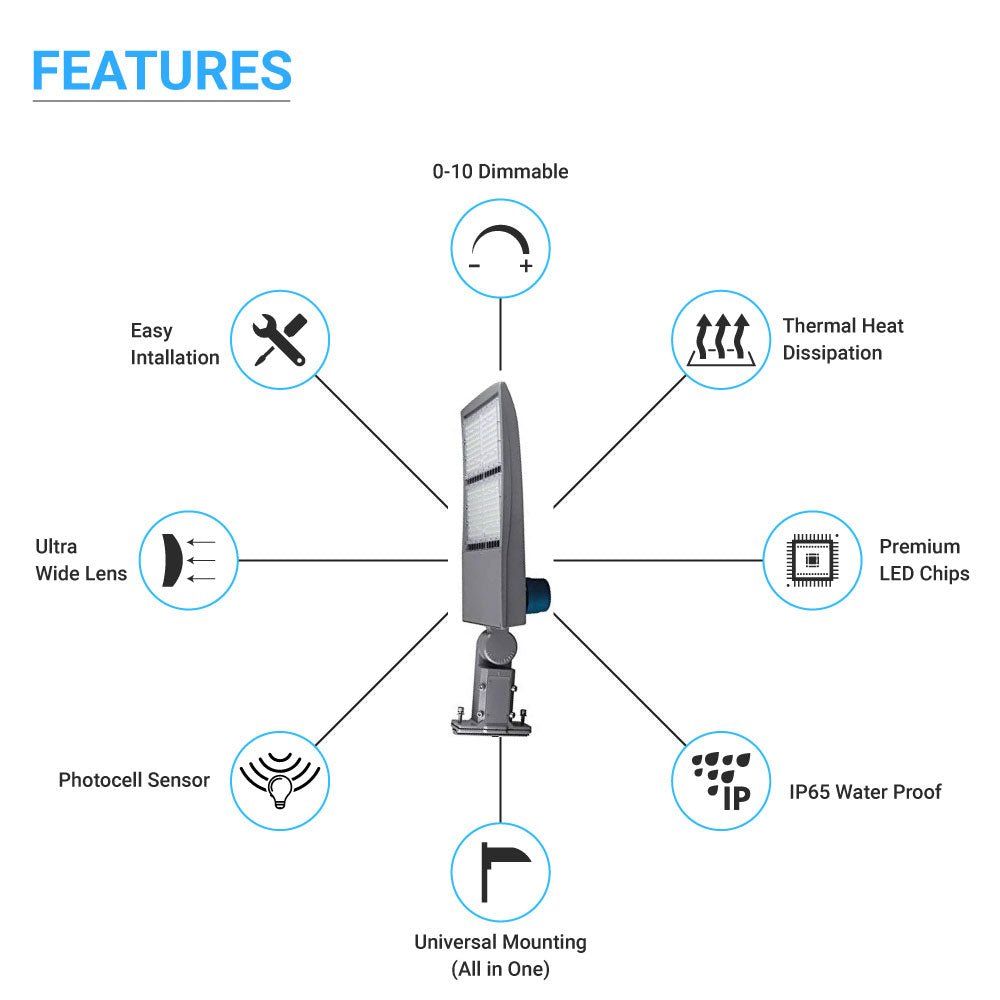

Features of LED Pole Light 300W - 5700K - Universal Mount - 100-277V With Photocell
- Available Wattage: 300W/240W/200W
- Color Temperature Available: 5700K
- Luminous Flux Available: 39900 Lumens [133 lumens/watt]
- Wattage Equivalent: 1050W
- Lifespan: 50,000 hours
- Voltage: 100V - 277V
- Color: Silver
- Mounting Option: Universal Mount [Slip, Direct and Adjustable Mount]
- Photocell Sensor: Yes
- IP65 Rated
- cUL, DLC approved
- 5-year Manufacturer Warranty
features Specs.
Easy Installation
Slim body, lightweight no bulky heat sink. Simple to replace existing metal halide / HPSlights or make a new installation with our led adjustable mounting pole light.

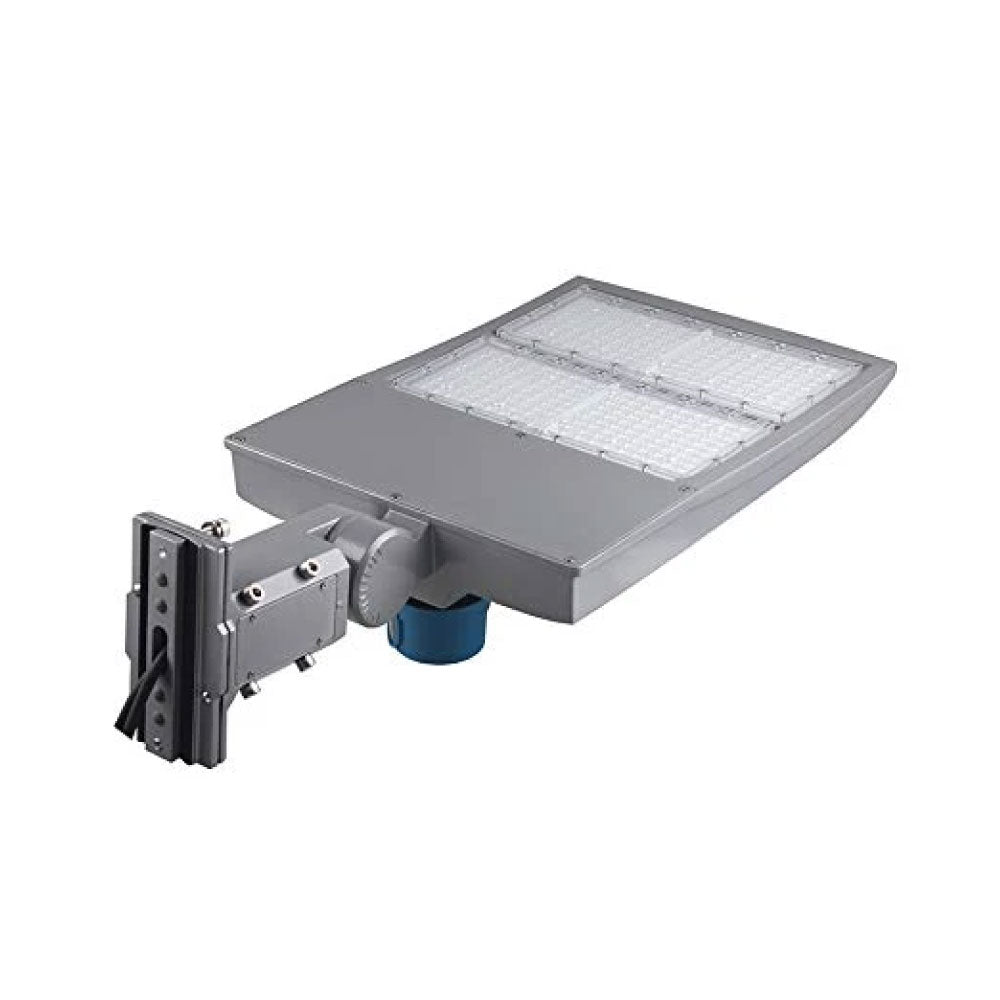

Universal Mounting (All in One)
LEDMyplace offers one of the best mounting options that lower your installation costs by enabling a hassle-free, easy self-installation. This is suitable for both kinds of poles - round, square and also for wall mounting with the flexibility to adjust the head. Apart from easy self-installation, the universal mounting option also reduces your time by not requiring any re-drilling or cutting any pole tops when allowing for a change in the mounting process. With just two holes inside the poles and with just two bolts, you can easily undertake Universal Mounting. Our 300W LED pole light luminaire thus enables mounting in two ways -- vertical and horizontal. And, what you get out of these options is an enhanced optical control and to a certain degree the luminaire efficiency.

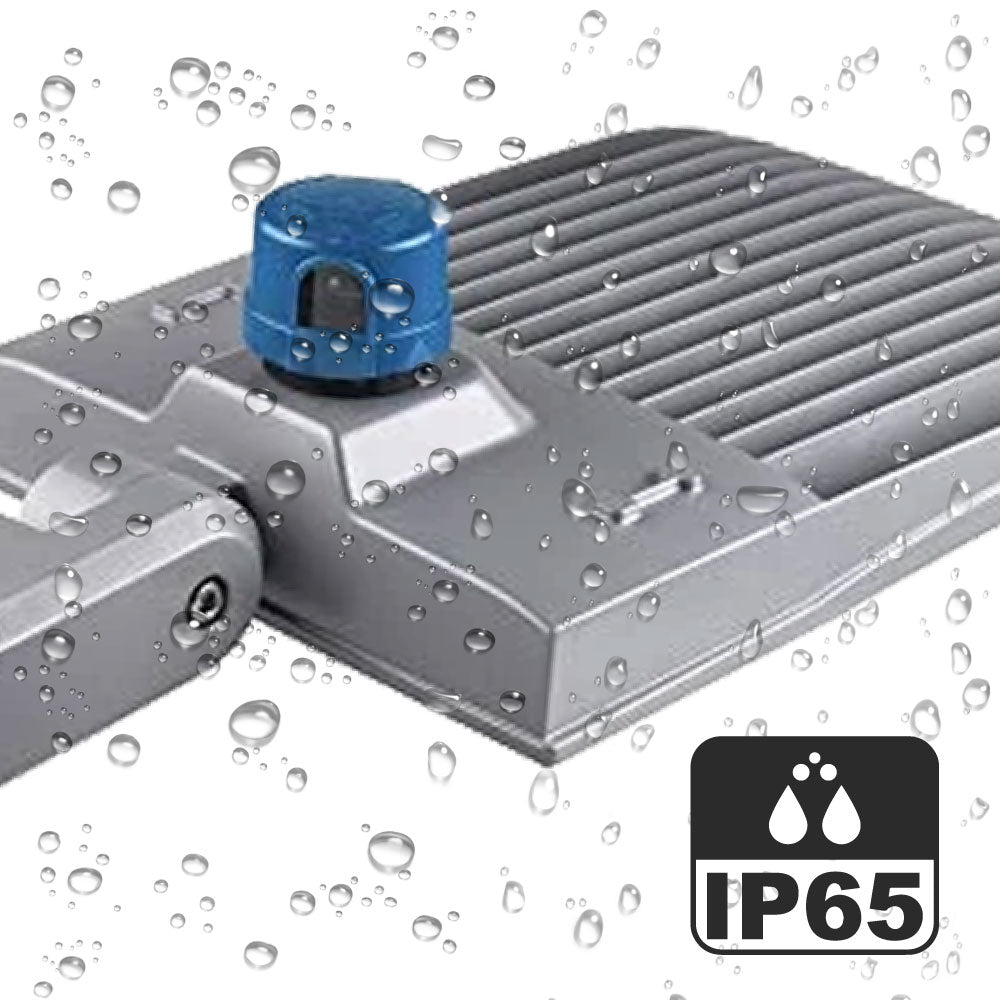

An IP65 Rating For Water-Resistance
LED Pole Lights are IP 65 rated which means they are strongly protected against solid objects (dust, sand, dirt, etc.) and liquids. These are protected against the effects of temporary submersion in water. Suitable for wet locations.
Polycarbonate Optics
PCB mounted LED technology comprised of multi-cluster LED's on single metal core board, Color temperature of 3000K with CRI of 80 minimum. Polycarbonate prismatic optics ensure longevity and minimize dirt depreciation. Zero uptight optics reduce sky glow and meets Dark Sky requirements. Our special polycarbonate optics provide overlapping pattern on application space eliminating dark spots. The use of ultrawide angled polycarbonate optics provides high application efficacy, uniformity, and glare control, with more uniformed light distribution, especially over wide areas and spaces.

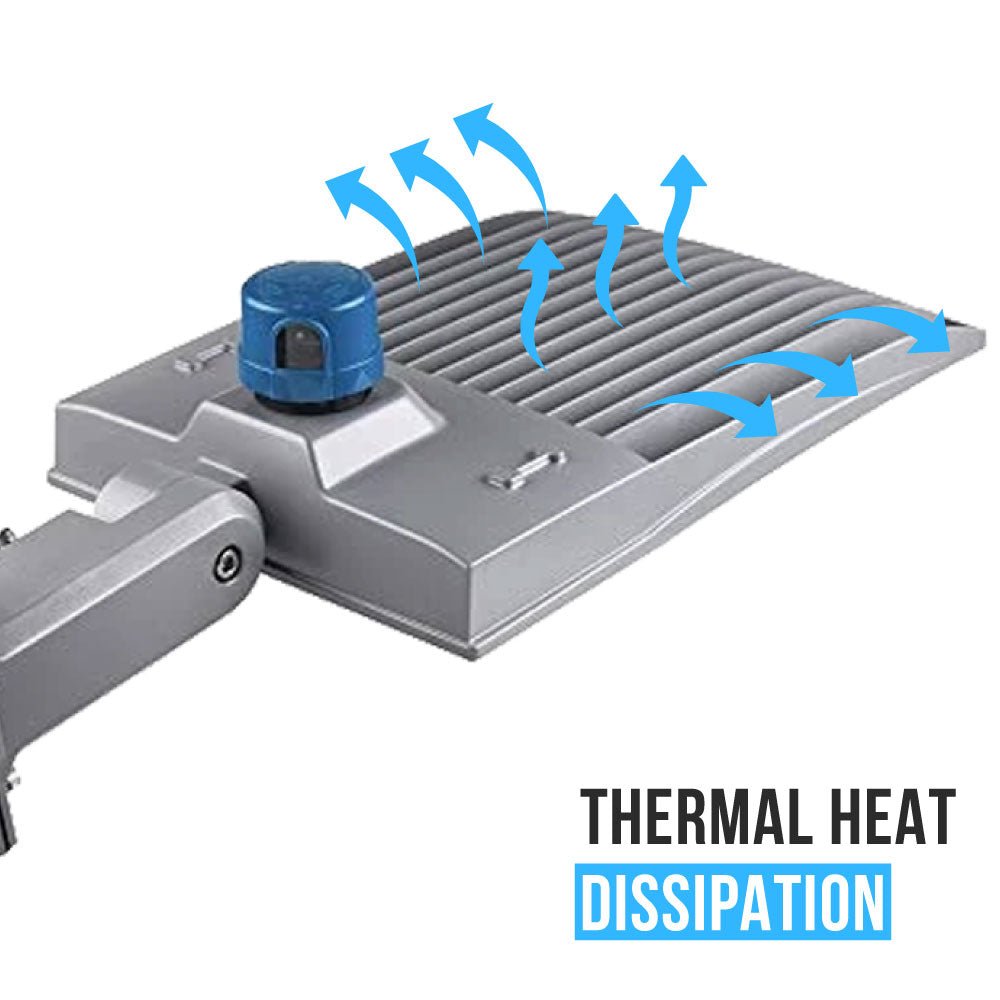

Thermal Heat Dissipation
Although LEDs are cool to the touch, within the fixture itself, there is plenty of heat that needs to be dissipated for effective thermal management. The High performance modular LED fixtures are engineered to remove heat through efficient thermal management. Without good heat sinking, the junction (internal) temperature of the LED rises, shortening the life of diodes causing loss of; the brightness and efficiency of your LED but this junction temperature affects the overall lifetime of the LED as well. Our outdoor LED pole light has been designed in such a way that through its massive heat sink made of die cast rugged aluminum housing, it can operate safely and securely at any point in time and provides outstanding life for the luminaire.
Ultra Wide Angle Lens
The PCB mounted LED technology comprised of multi-cluster LED's on single metal core board and is available in various color temperature of 3000K with CRI of 80 minimum. Polycarbonate prismatic optics ensure longevity and maximize dirt and bug resistance. Zero uptight optics reduce sky glow and meets Dark Sky requirements. Our special polycarbonate optics provide overlapping pattern on application space eliminating dark spots. The use of ultra wide angled polycarbonate optics provides high application efficacy, uniformity, and glare control, with more uniformed light distribution, especially over wide areas and spaces.

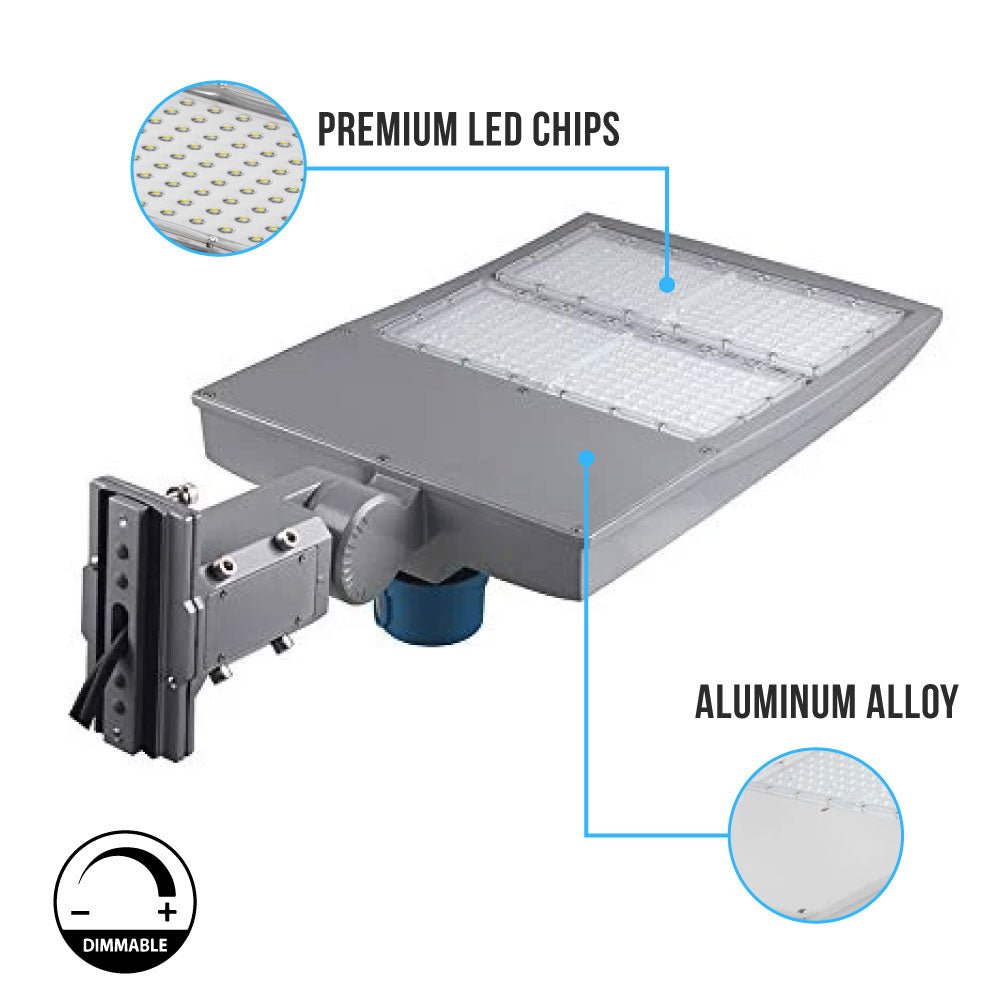

Premium LED Chips
Our Premium LED Chips combine highly efficient quality materials that deliver superior price/performance for high-intensity LEDs. Typical features of these premium LED Chips include: Very low heat generating, saving energy, environmentally friendly. Long service life.
1-10 Dimmable
The dimmable fixtures are the ideal replacement for traditional incandescent metal halide bulbs in terms of the light quality, output, and compatibility. LEDmyplace's wide array of dimmable lighting results in easy to adjust light intensity at the location. Even at very minimal light levels, these Pole Lights remains stable and pure.
CRI >80
The LED Pole Light 300W High Output delivers true-to-life colors with a Color Rendering Index (CRI) of >80 and optical distributions that are optimized for automotive frontlines, large parking lots and high mast applications.
Low Cost Maintenance

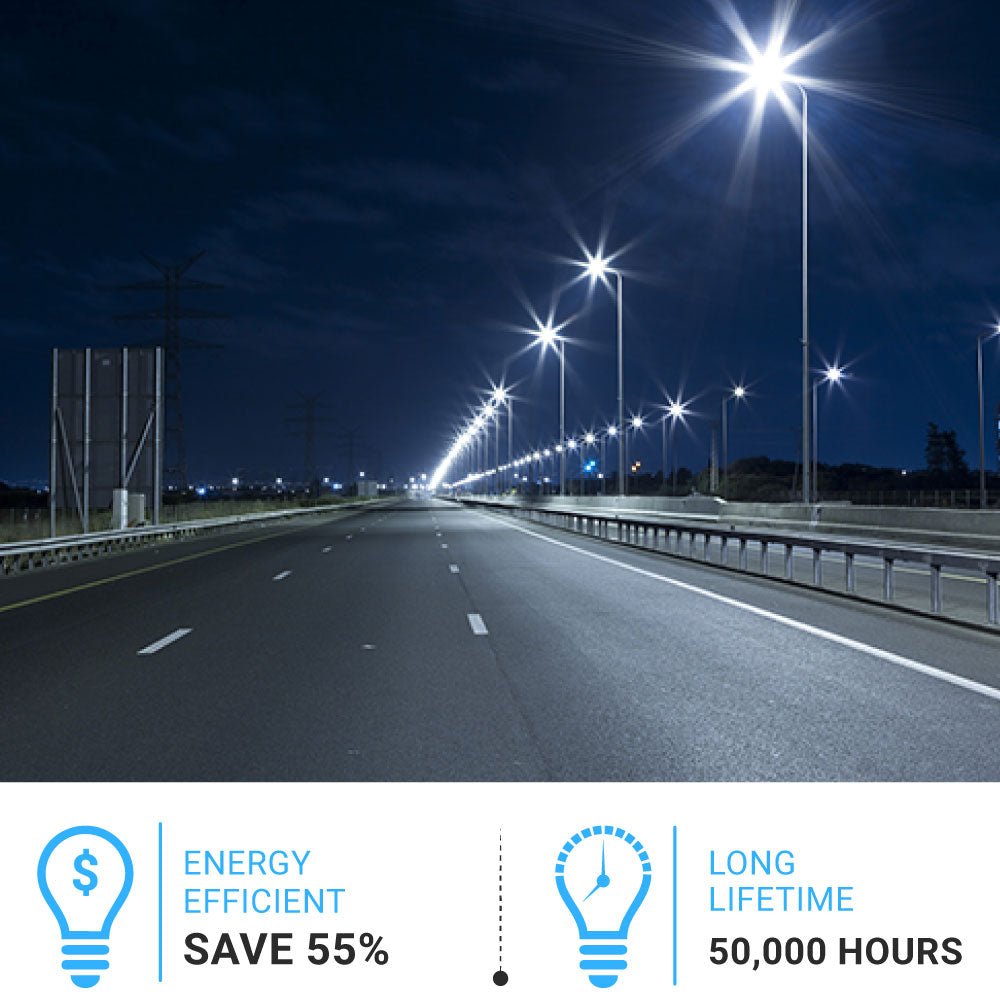

LED lighting uses significantly fewer Watts (W) than conventional lighting. But that's not the only Savings you enjoy when selecting LED lighting. Conventional bulbs have a shorter operating lifetime compared to LED lighting. If you are using conventional bulbs you will be purchasing up to four times as many bulbs or fixtures compared to a single LED replacement with a long operating lifetime. Buying and using conventional bulbs and fixtures also means that you incur three times more maintenance as well as replacement costs compared to LED lighting.

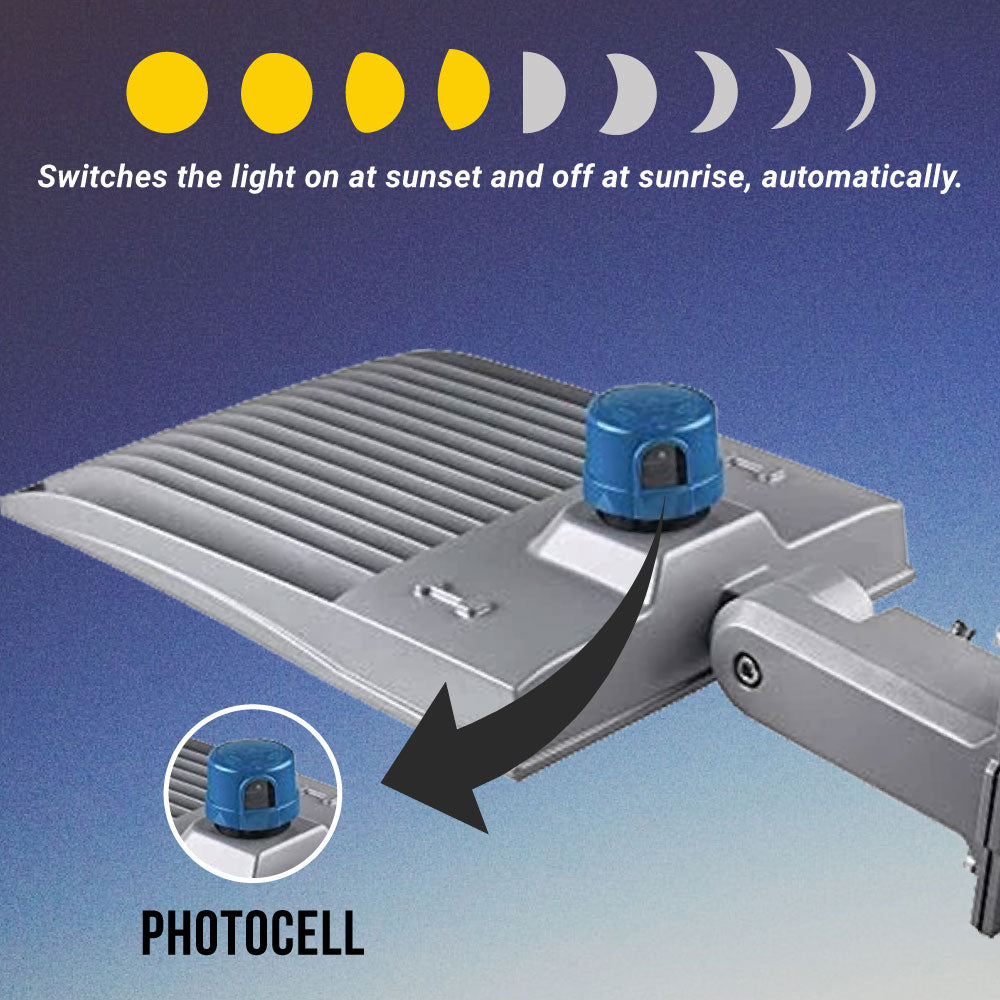

Dusk To Dawn Sensor
Depending upon the amount of light reaching the fixture, the Dusk to Dawn sensor gets automatically trigerred. This sensor light fixture will Auto On at night, Auto off in Daytime, Built -in Photocell Sensor will work automatically according to surrounding brightness. These sensors improve the security and safety at the location by automatically turning on lights when it gets dark or they detect motion. This results in auto-energy saving, when lights get turned off.
Vibration Test Passed
The luminaries need to be tested for resistance to vibration. All our LED Lights have cleared pre-qualified tests for vibration. The vibration testing ensures that our LED fixtures do not have any loose parts, structural damage, power off and other anomalies.
Rebate Eligible
LEDMyplace 300W Pole Light with Photocell Sensor are UL, DLC, CE, ROHS Approved, making them stand eligible for rebates with MOST of the electric companies (we can help with paperwork also).
Compatible Dimmers
This product is compatible with the following dimmers. These dimmers work perfectly with our lights.
- DS710
- IP710
- NTSTV-DV
- NFTV
- DVTV-WH
- H4FBL3PW
**For any other Dimmer please contact our customer support or check with your electrician.

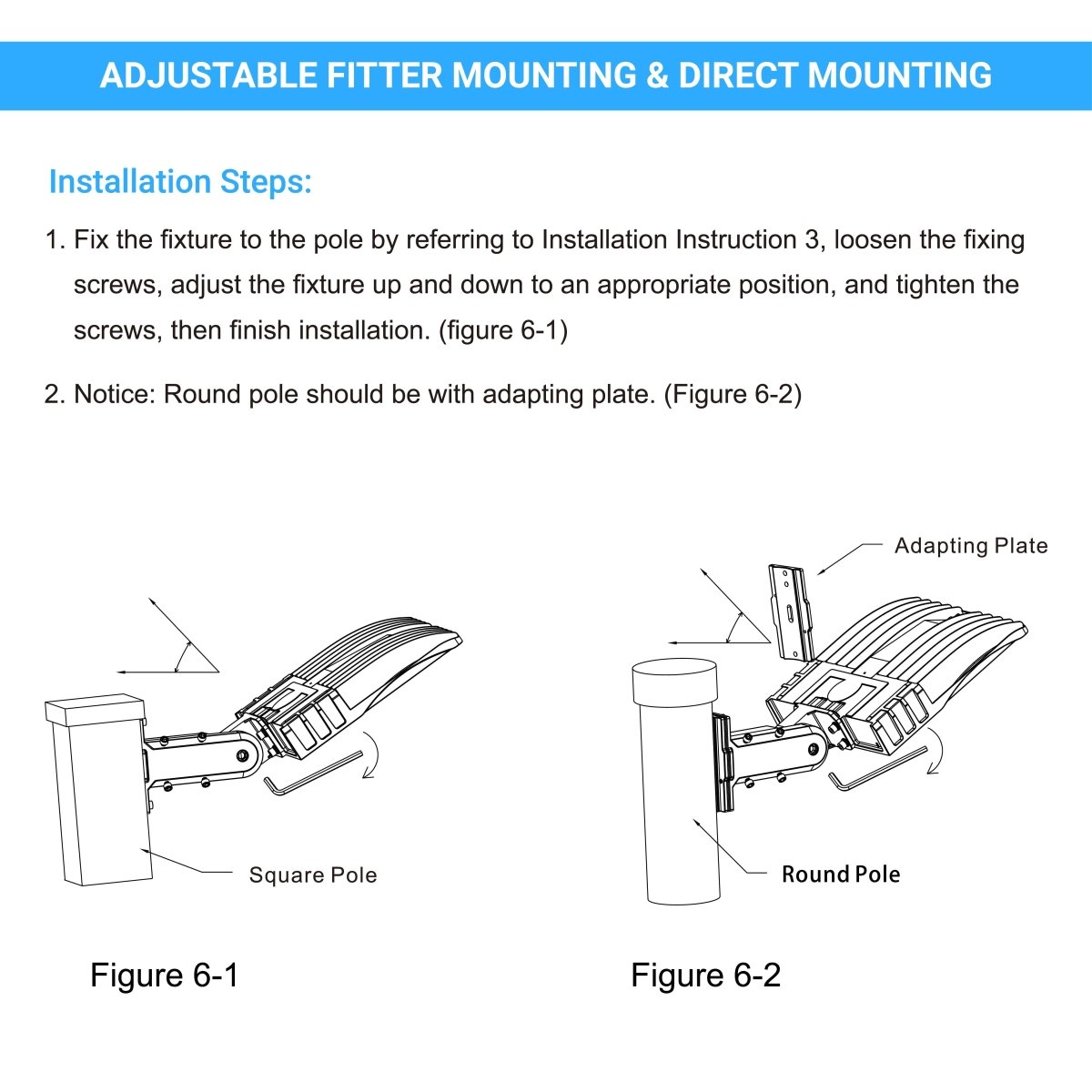

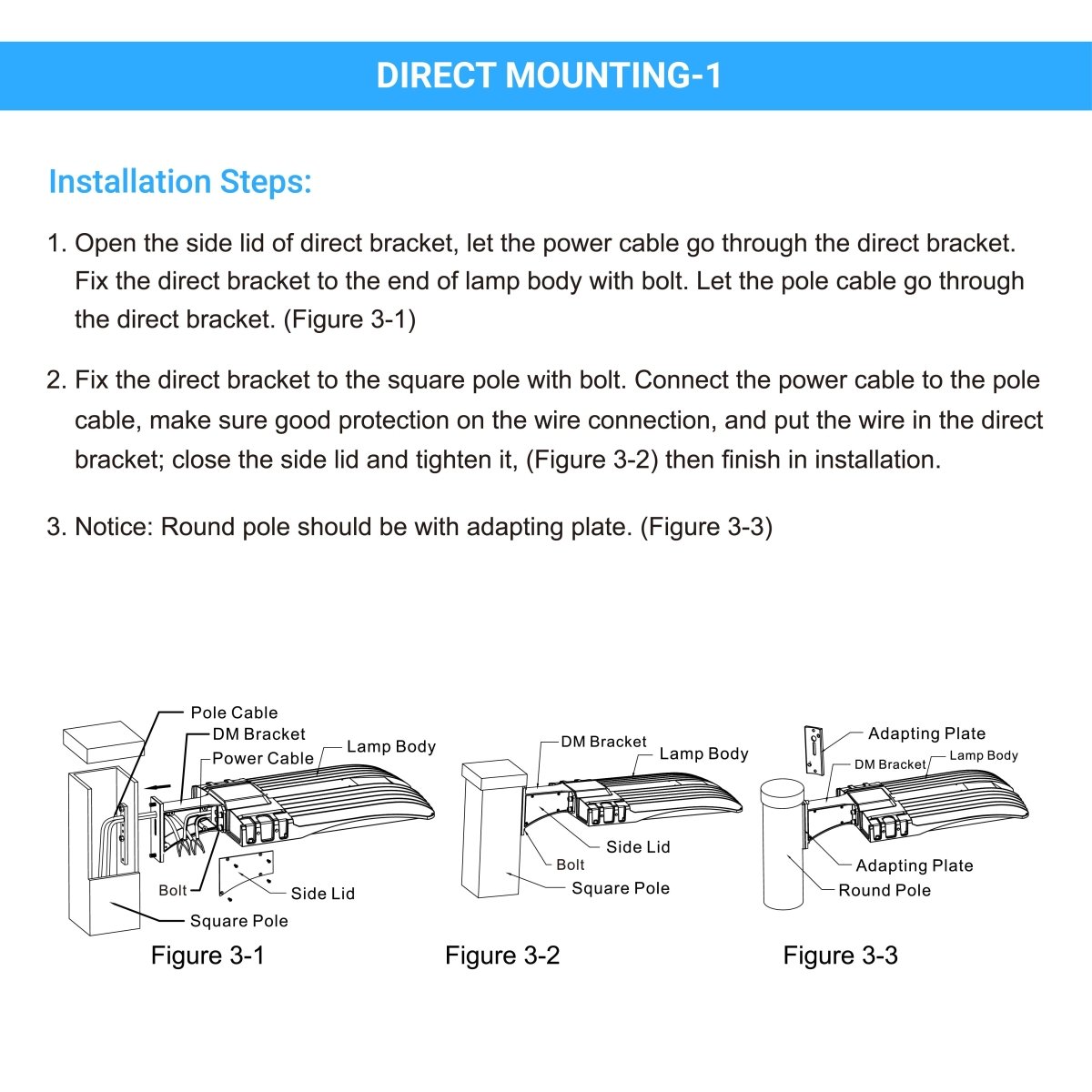

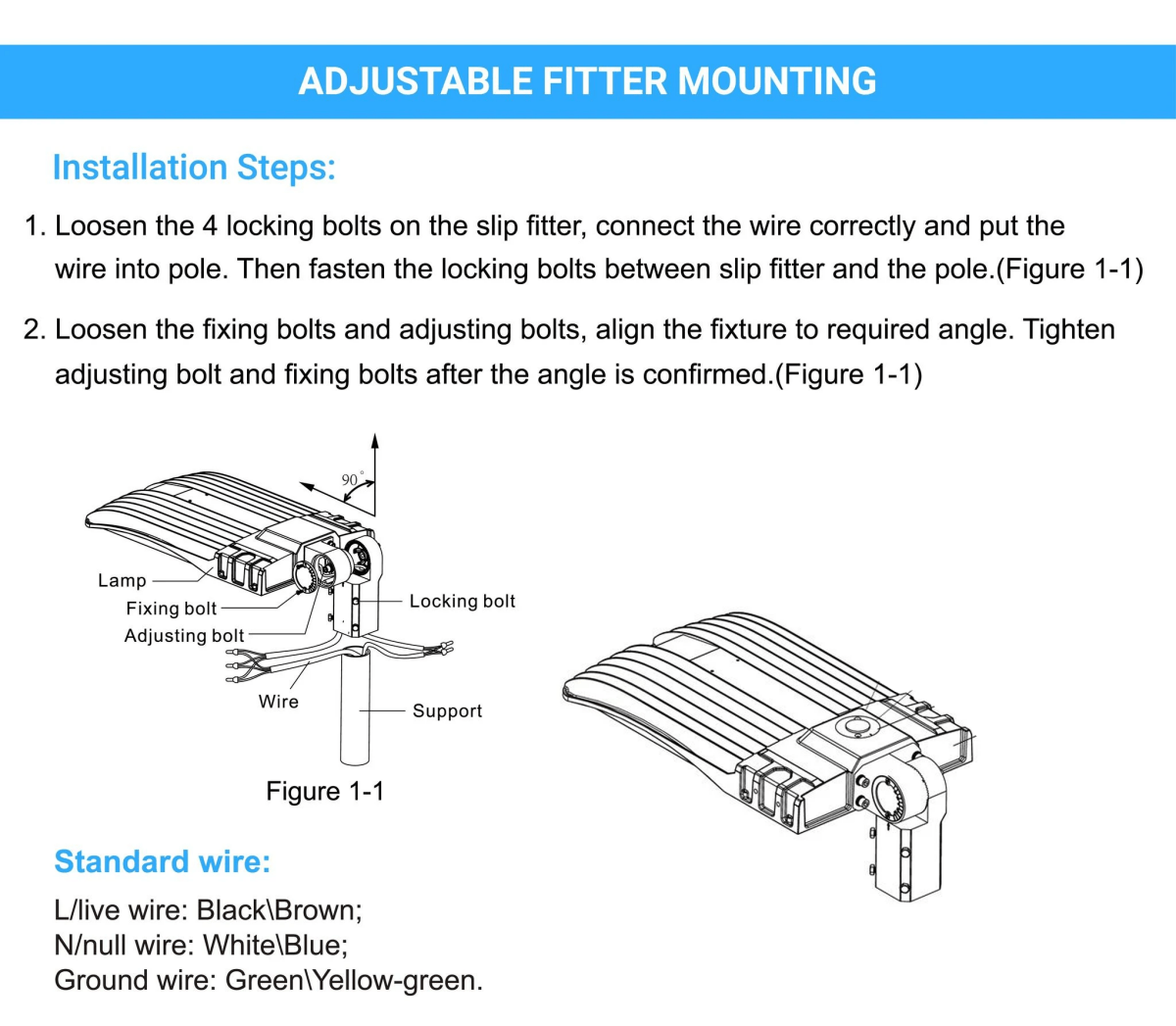

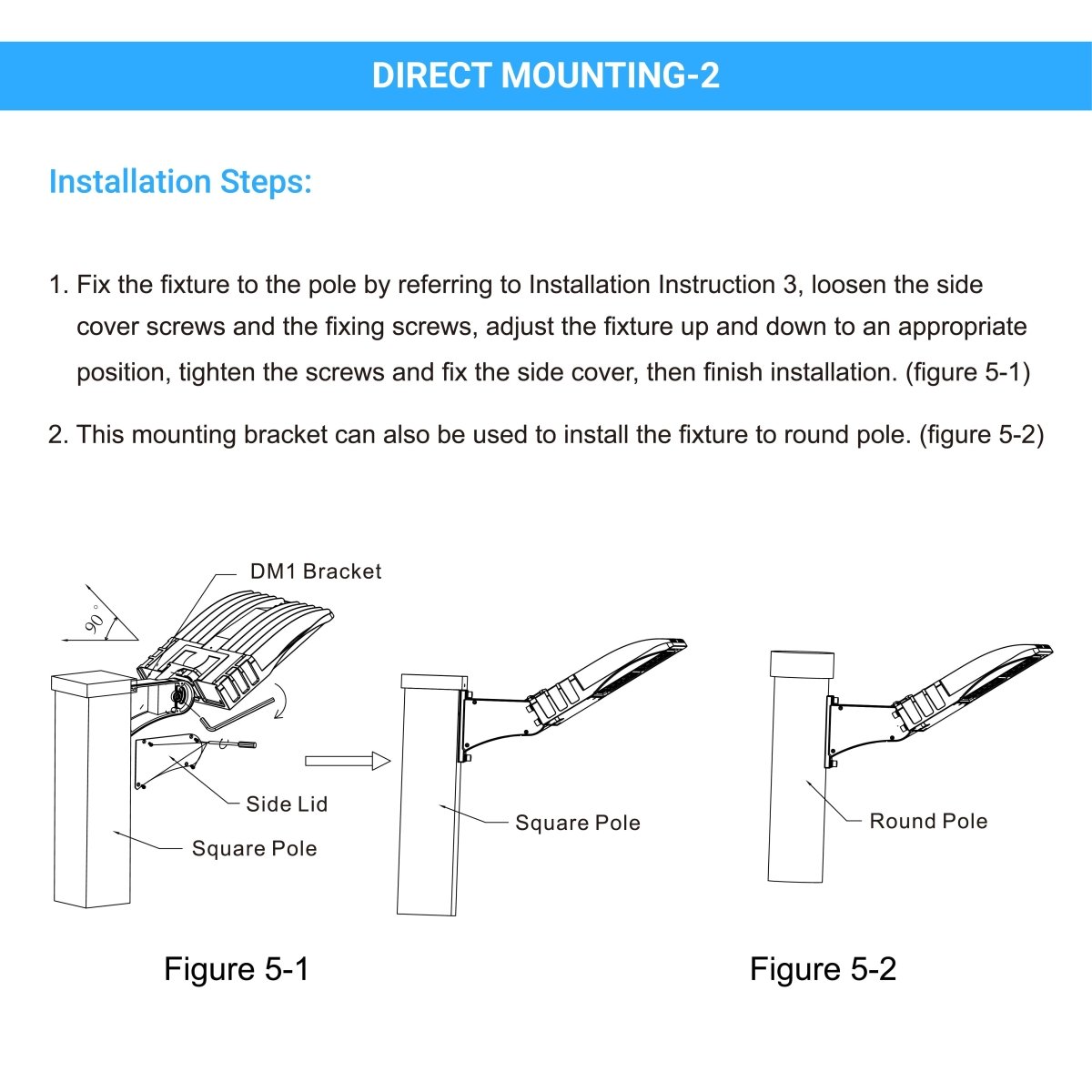

Installation Instruction
Specifications
| Beam Angle: | 150x85° Beam Angle |
| CCT: | 5700 Kelvin |
| Color Rendering Index(CRI): | >80 CRI |

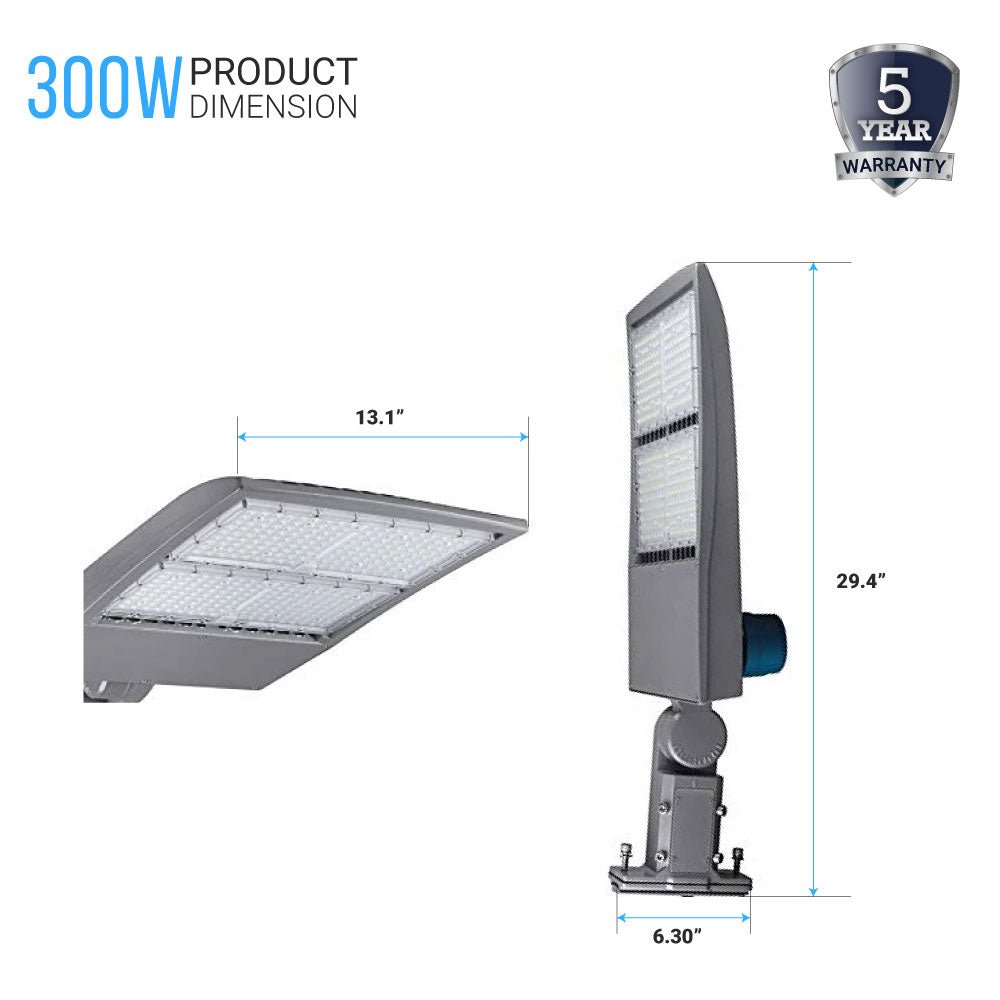

| Dimensions (L x W x H): | 29.4 x 13.1 x 6.3 |
| DLC Listed: | Yes |
| Housing: | Aluminum |
| LED Type: | SMD3030 |
| Lumens: | 39900 Lumens |
| Power Factor: | >0.90 |
| SKU: | WEN-S-G07-300WCT3A1-SLA&D5700K-W-PCELL |
| Warranty: | 5 Years |
| Operating Temperature: | -40 Degree F To +122 Degree F |
| Brand: | LEDMyplace |
| Certifications: | UL, DLC Listed |
| Color Temperature (Kelvin): | 5700 Kelvin |
| Dimmable: | 1-10V Dimmable |
| Fixture Color: | Silver |
| IP Rating: | IP65 Rated |
| Life Hours: | 50,000 Hours |
| MPN (Part No.): | PL053 |
| Replaces: | 1050 Watt Replacement |
| Voltage: | 100-277 Volt |
| Wattage: | 300 Watt |
