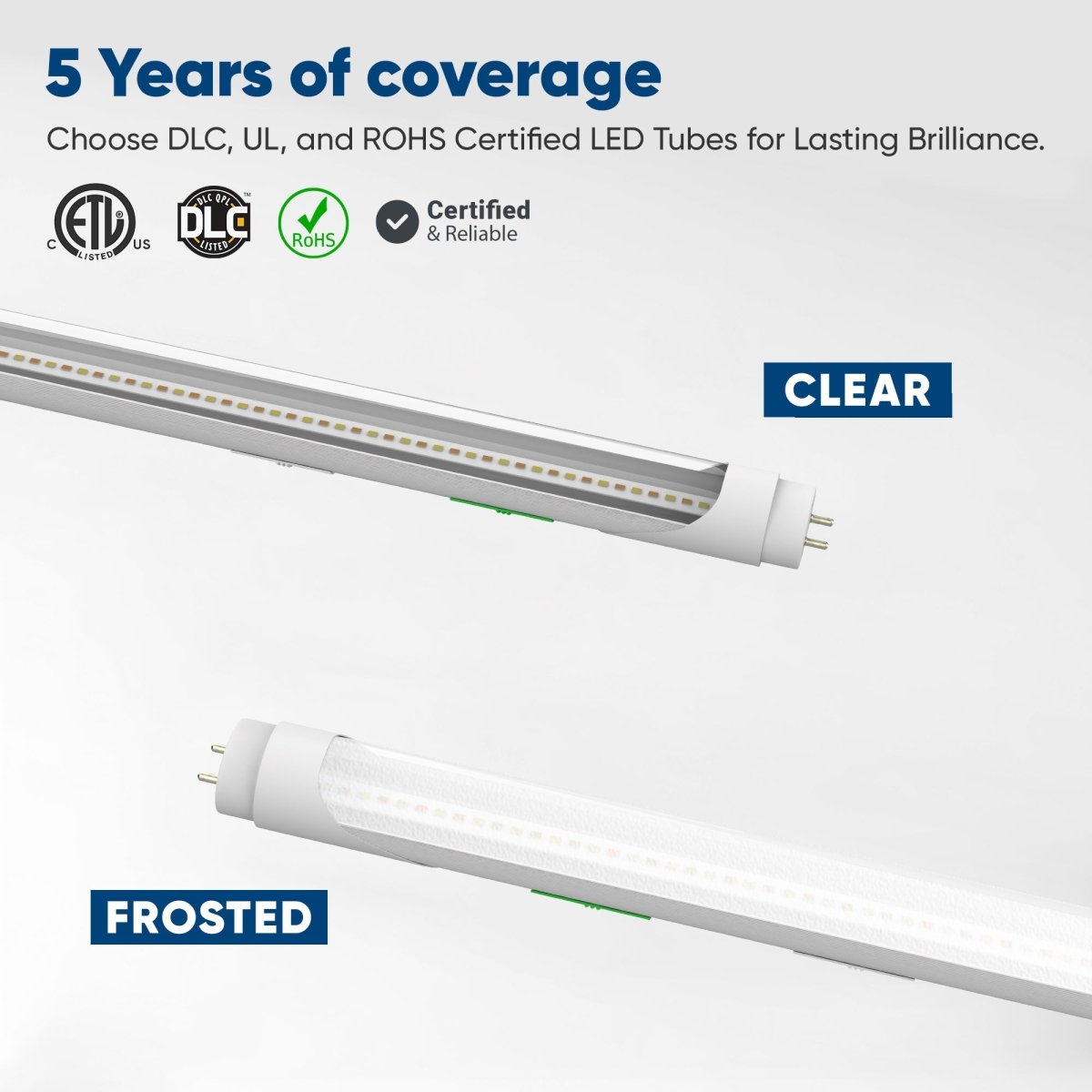

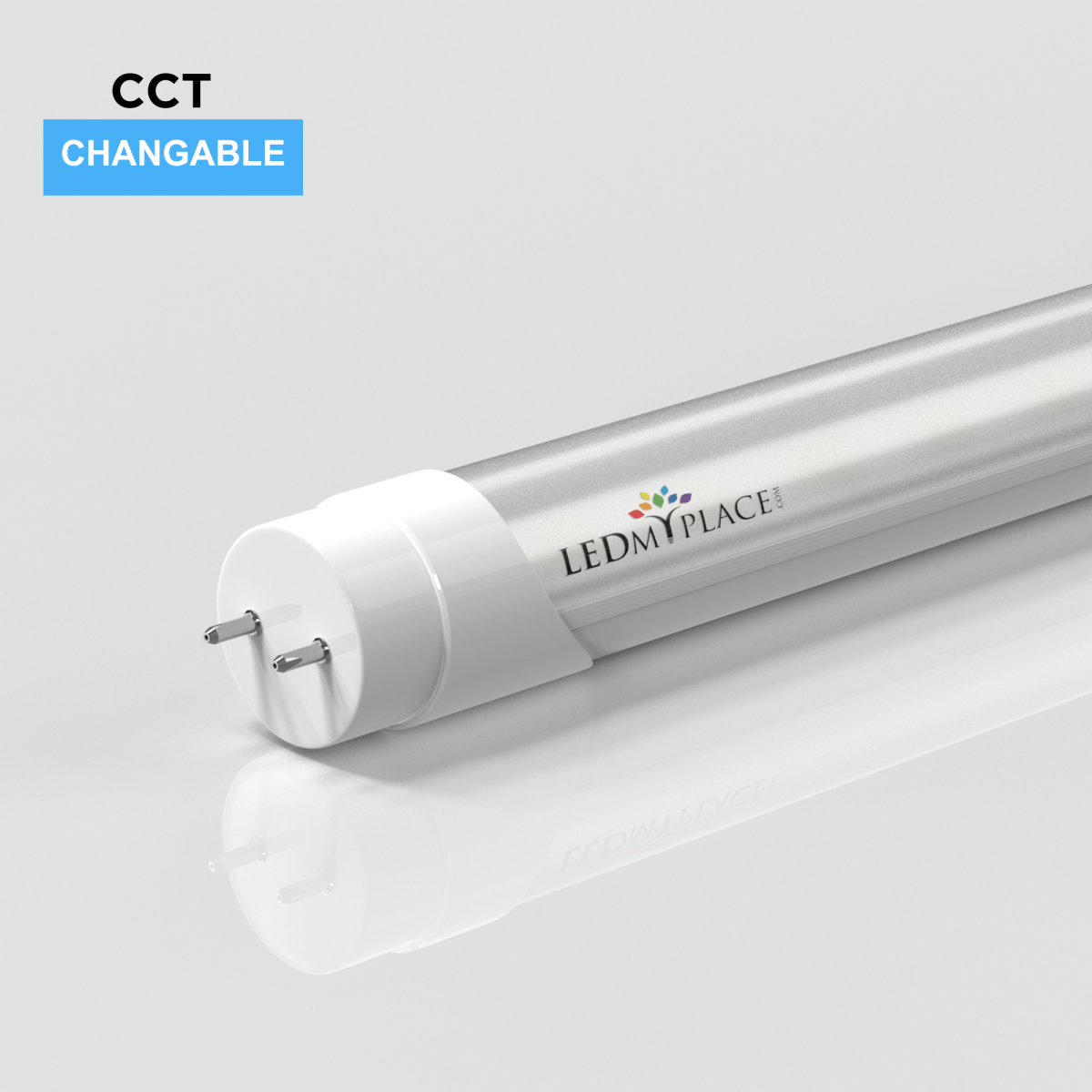

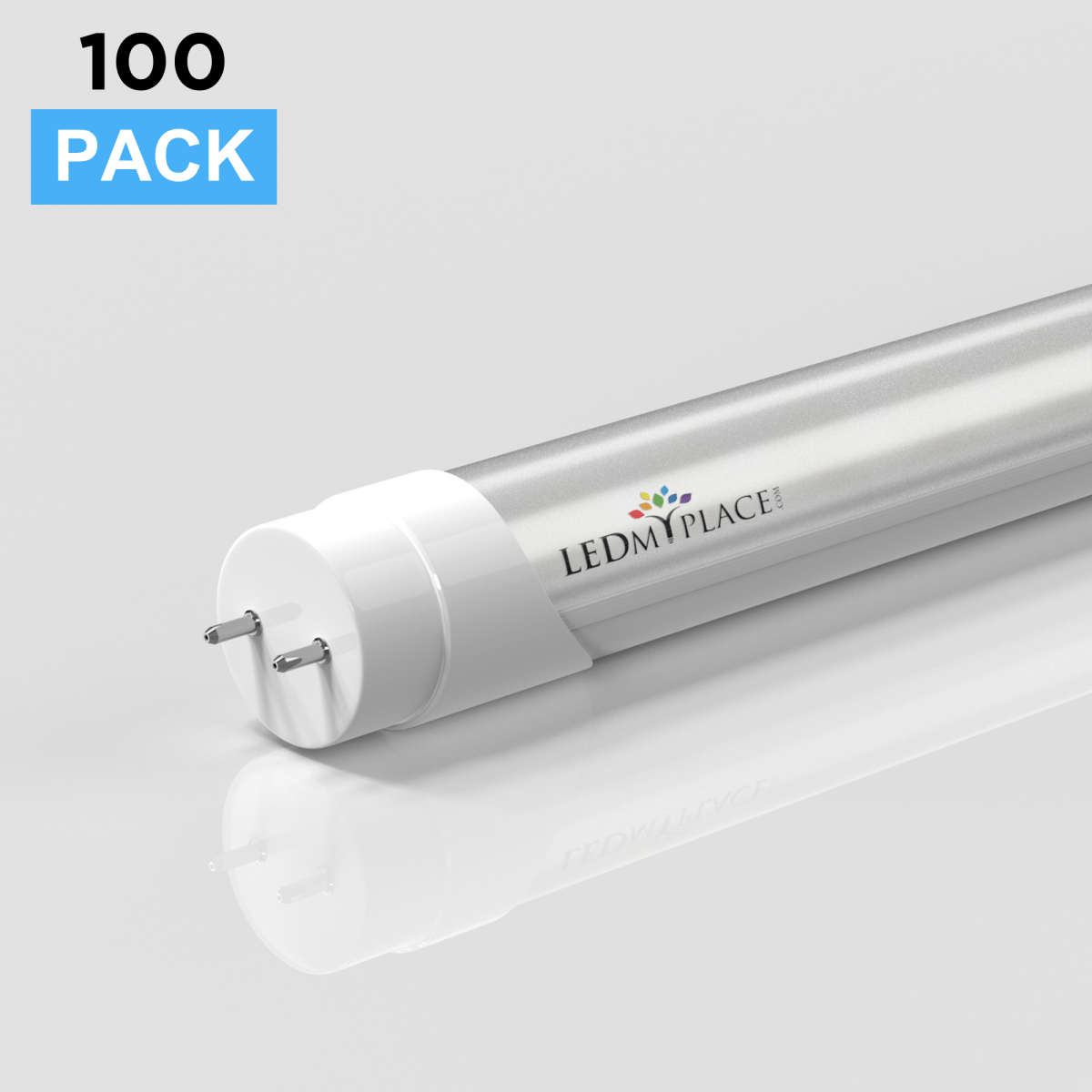

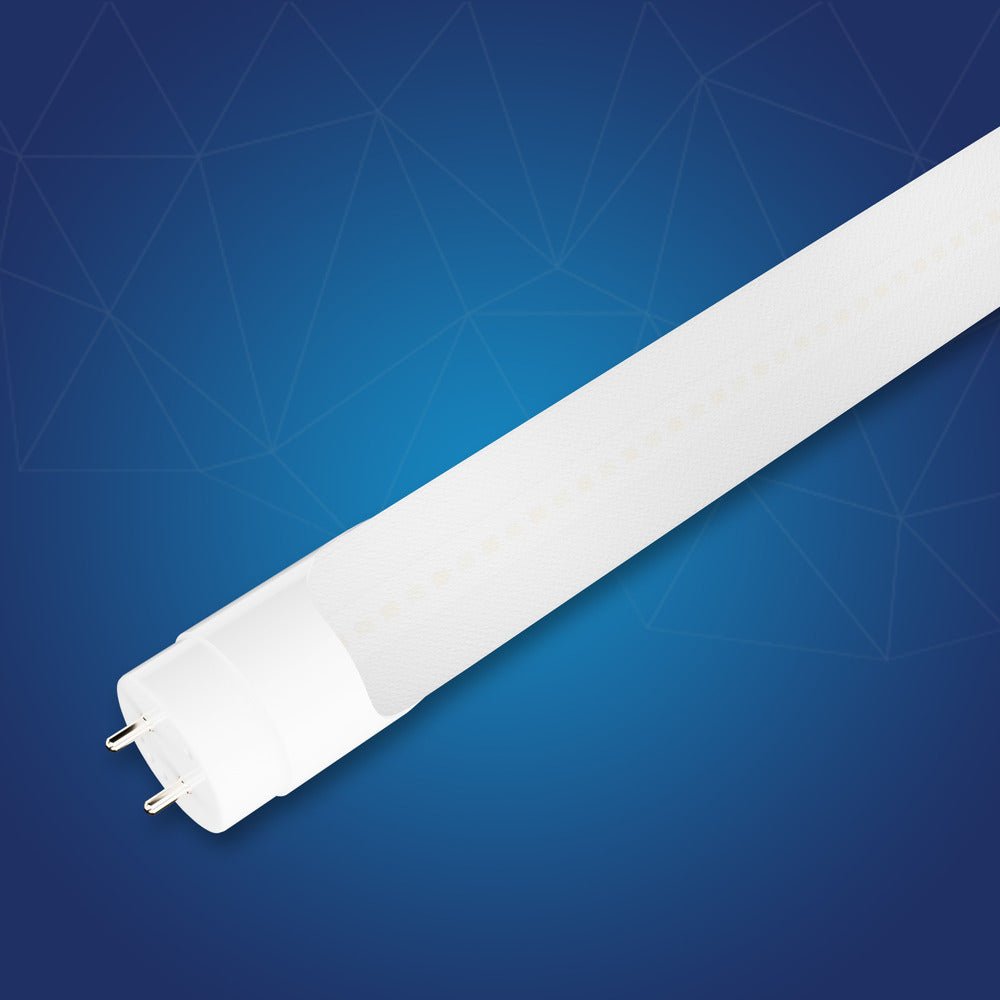

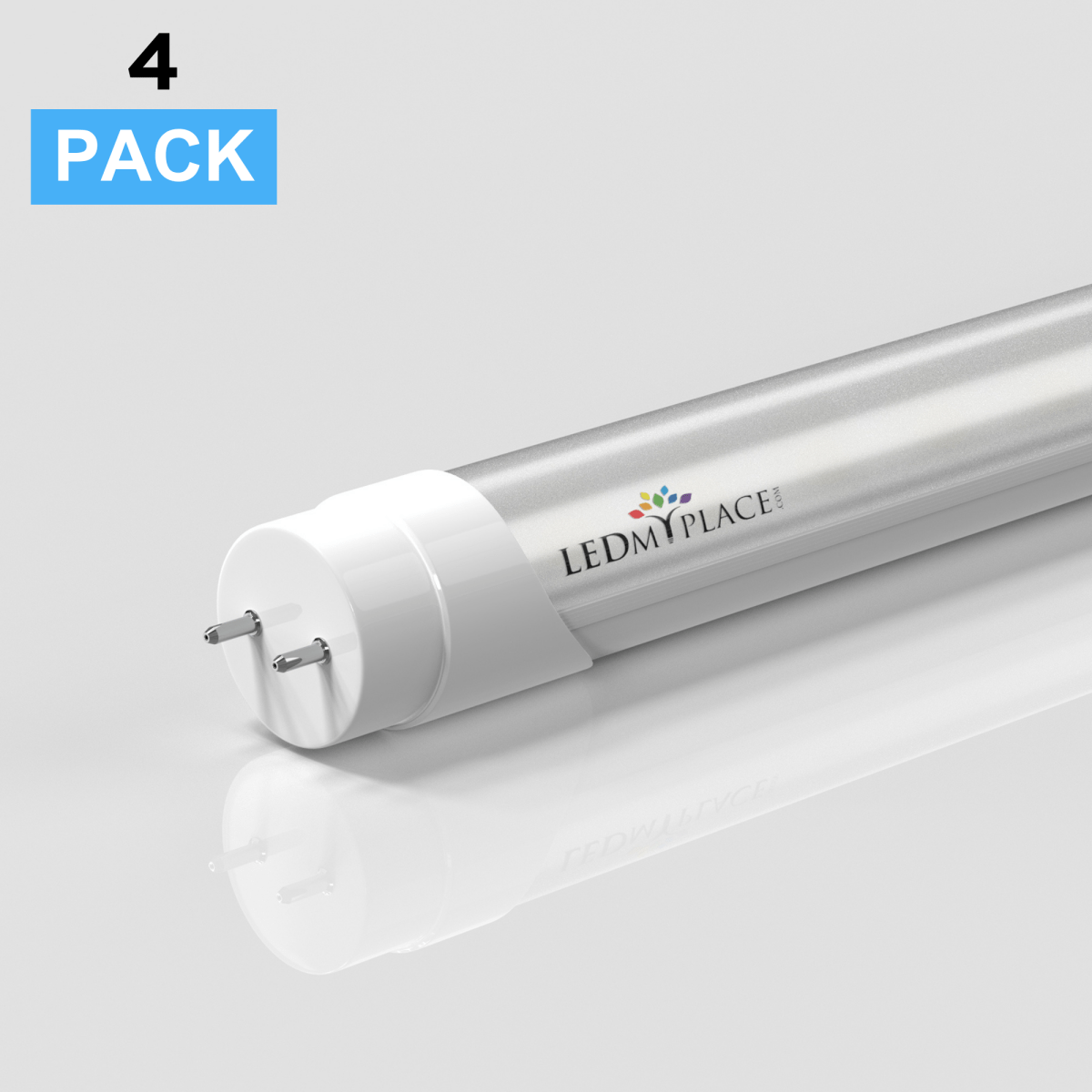

Hybrid T8 4ft LED Tube/Bulb - 22w/20w/18w/15w/ 12w/10w Wattage Adjustable, 130lm/w, 3000k/3500k/4000k/5000k/ 6000k/6500k CCT Changeable, Frosted, Base G13, Single End/Double End Power - Ballast Compatible or Bypass - 1pc
- 30 Days Return
- 5 Years Warranty
HYBRID T8 4FT LED TUBE LIGHT - WATTAGE ADJUSTABLE & CCT CHANGEABLE OPTION, TYPE A+B, FOR GARAGE WAREHOUSE OFFICE STORAGE AREAS RETAIL SPACES HOSPITALITY
Our Hybrid T8 4ft LED Tube/Bulb offers adjustable wattage (10W to 22W), high efficiency (130 lumens per watt), and the choice of four color temperatures. It's easy to install with both ballast compatibility and bypass options, featuring a durable frosted design, G13 base, and single or double end power connections. Upgrade your lighting for versatility and efficiency in one solution.
Features T8 4ft 20W LED Tube Light

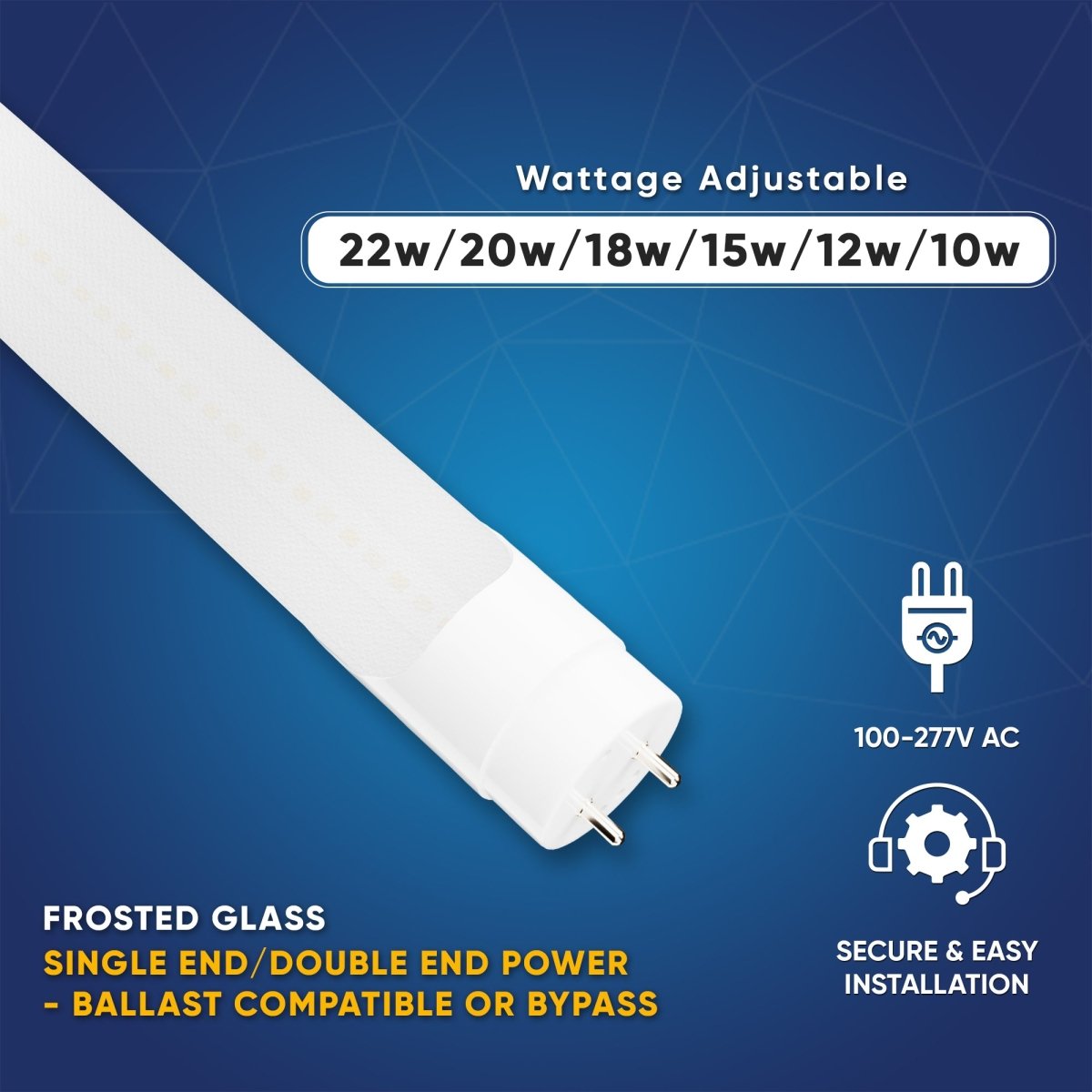

- Available Wattage: 10w/12w/15w/18w/20w/22w
- Available Size: 4ft

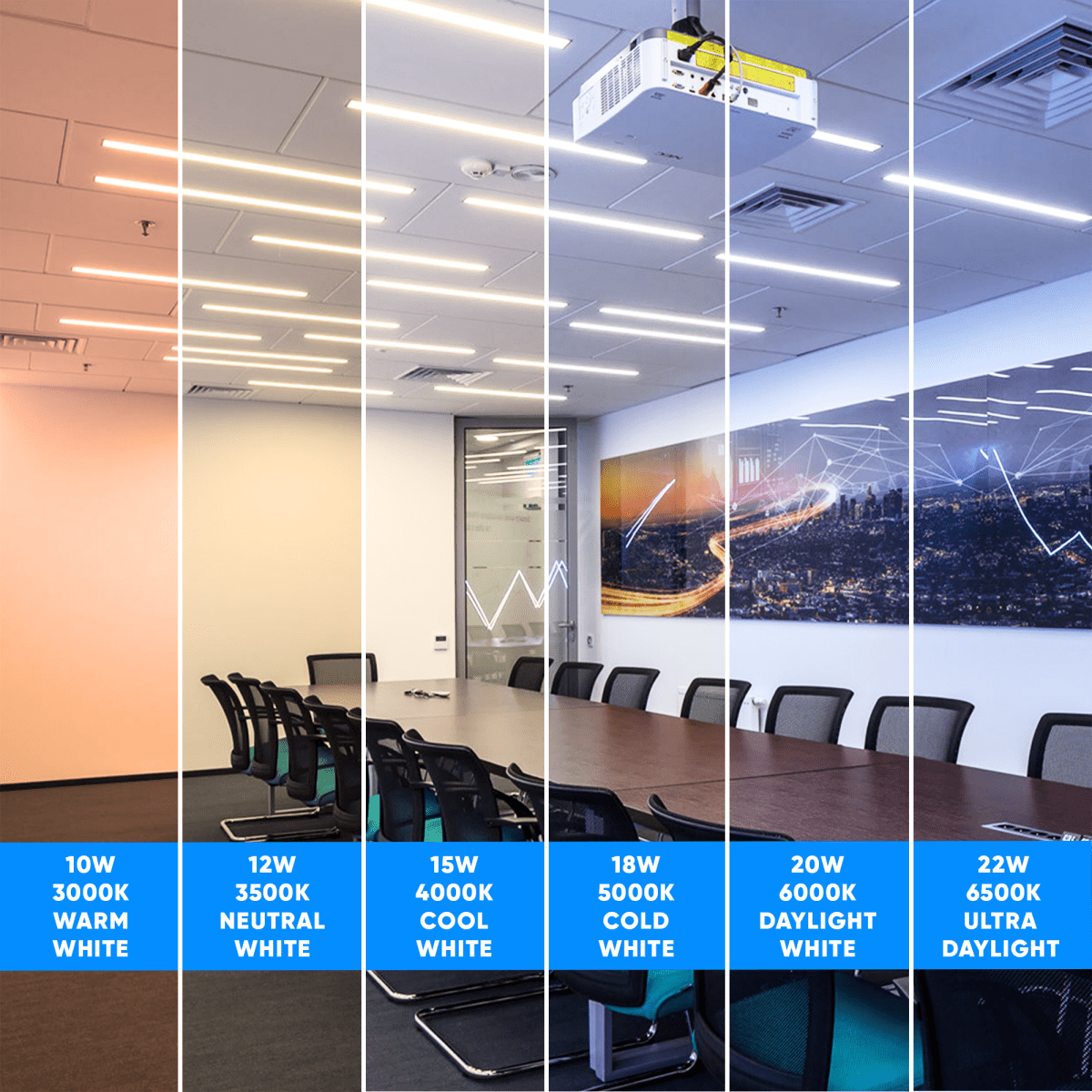

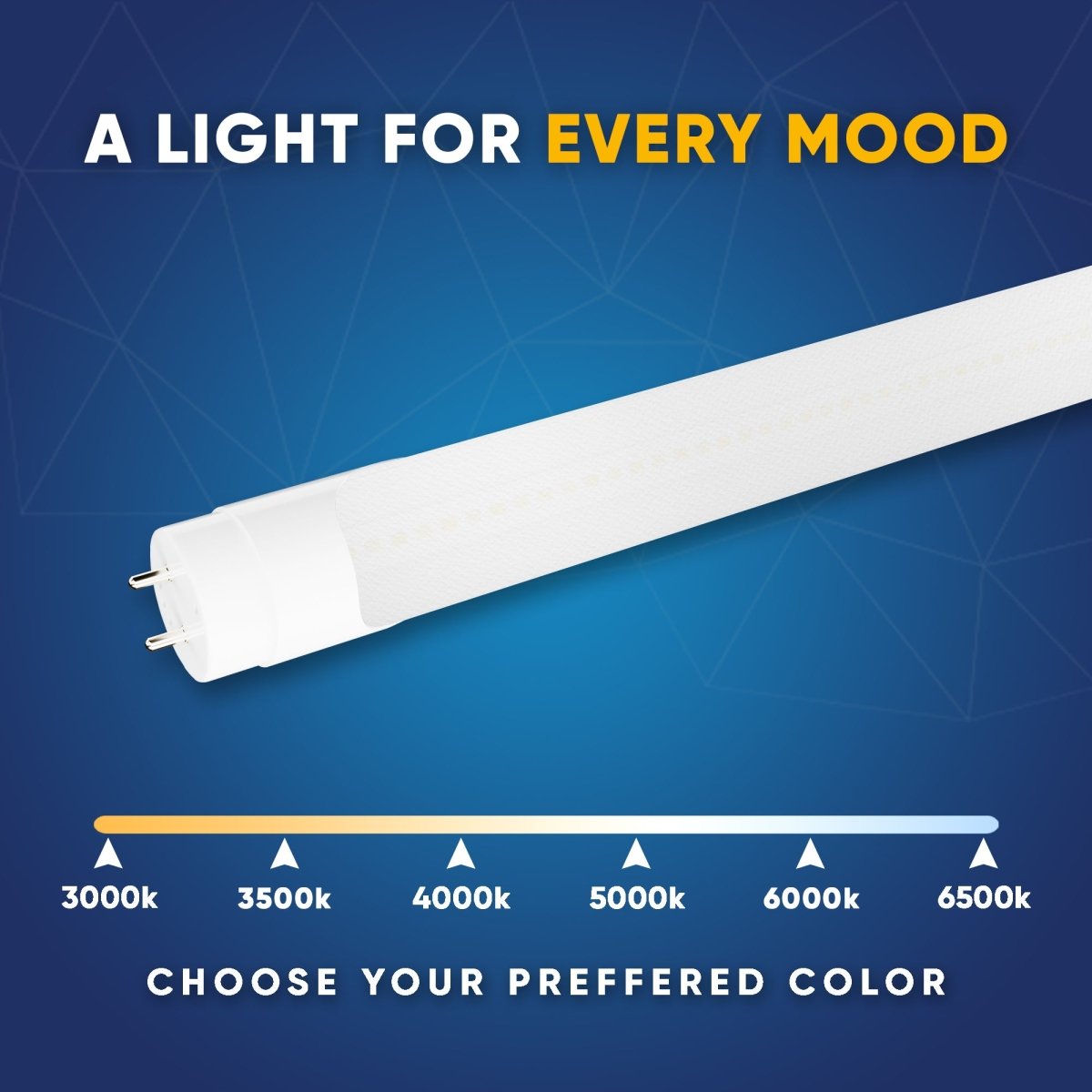

- Available Color Temperature: 3000k/3500k/4000k/5000k/6000k/6500k
- Luminous Efficacy: 130 lumens/watt
- Wattage Equivalent: 70W
- Lifespan - 50,000 hours
- Ballast Compatible [not compatible with every ballast. please ask for a compatibility list]
- Voltage: 100V - 277V
- ETL, & DLC approved
- 5 years of Manufacturer's Warranty
Ballast Compatible/Bypass
This hybrid T8 LED tube light offers versatile installation options, as it can be used with both Ballast Compatible and Bypass wiring configurations. This flexibility allows you to easily replace your existing fluorescent tubes without the need for complicated rewiring, making the transition to energy-efficient LED lighting a hassle-free process. Whether you prefer the convenience of using the existing ballast or want to bypass it for greater energy savings and control, this LED tube light gives you the freedom to choose the best option for your lighting needs.

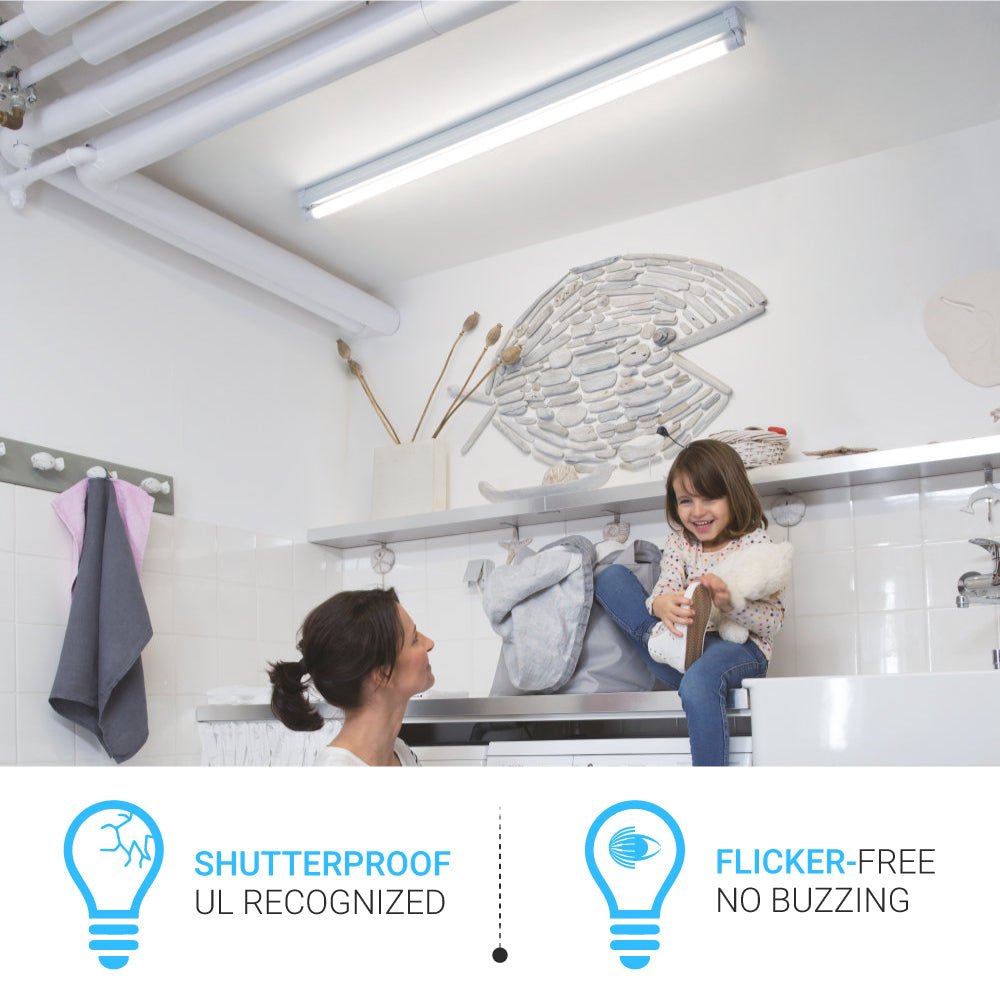

Flicker Free
Whether it’s 2ft, 4ft or 8ft LED tube, one of the jaw-dropping features of LED tubes is that they don’t flicker unlike what you would have definitely observed in case of fluorescent tubes. The LED tubes start instantly and once they start, they don’t flicker and produce a humming sound.
IP22 Rated
The LED tubes that are either clear or frosted have an IP22 rating. This rating signifies that our LED tubes are protected against dust-tight (objects in the dust that are of size more than 1mm) and protected against water-ingress from all directions. For such reasons, LED tubes are safe for use in areas where there is moisture and water. E.g. Bathrooms, kitchens etc.
Voltage Input
The LED tubes accepts an input voltage of 100V-277V. You can go for a waterproof transformer in case you don’t have this voltage and wish to convert this voltage range to some other.
Low Maintenance Cost
The LED tubes will require low or no maintenance if you are going for a ballast bypass option of LED tube installation. Though not very frequent, but you may have to replace the ballasts once in the total lifetime of LED tubes, if you are going for ballast compatibility option and hence you will have to bear with slightly higher maintenance costs when choosing the former option.
>50,000 Life Hours
The lifespan of LED tubes is no less than 50,000 hours or 5.7 years, if the tubes are operated upon for 24 hours a day. Can last longer, if the tubes are kept ON for only 12 hours a day.
CRI >80
The CRI being greater than 80 for LED tubes, whatever object comes in the light distribution range appears to be real and natural up to 80% extent on a CRI scale of 1-100 and as it would have appeared in the natural light.

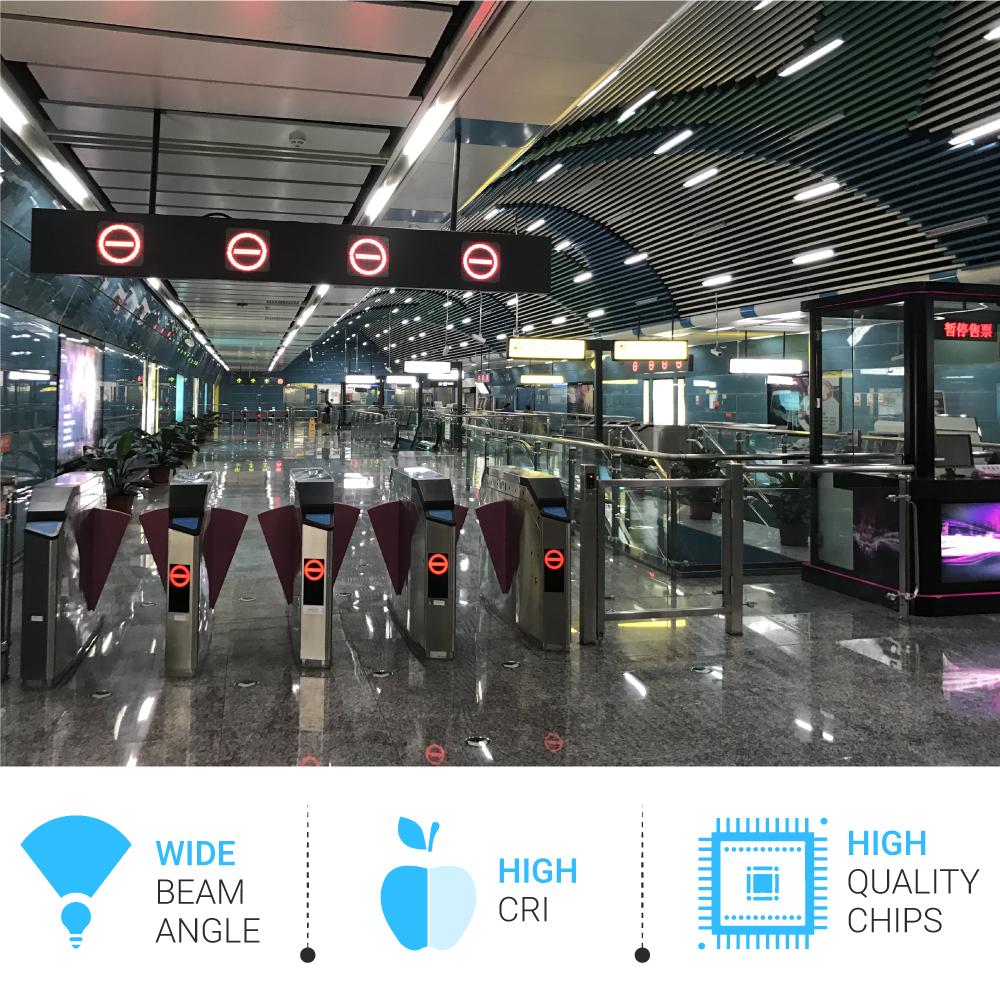

120 Degree Beam Angle
The 120 degree or ultra wide beam angle is made use of when large areas need to be covered. All our LED tubes whether clear or frosted have a 120 degree beam angle.
Energy Saving

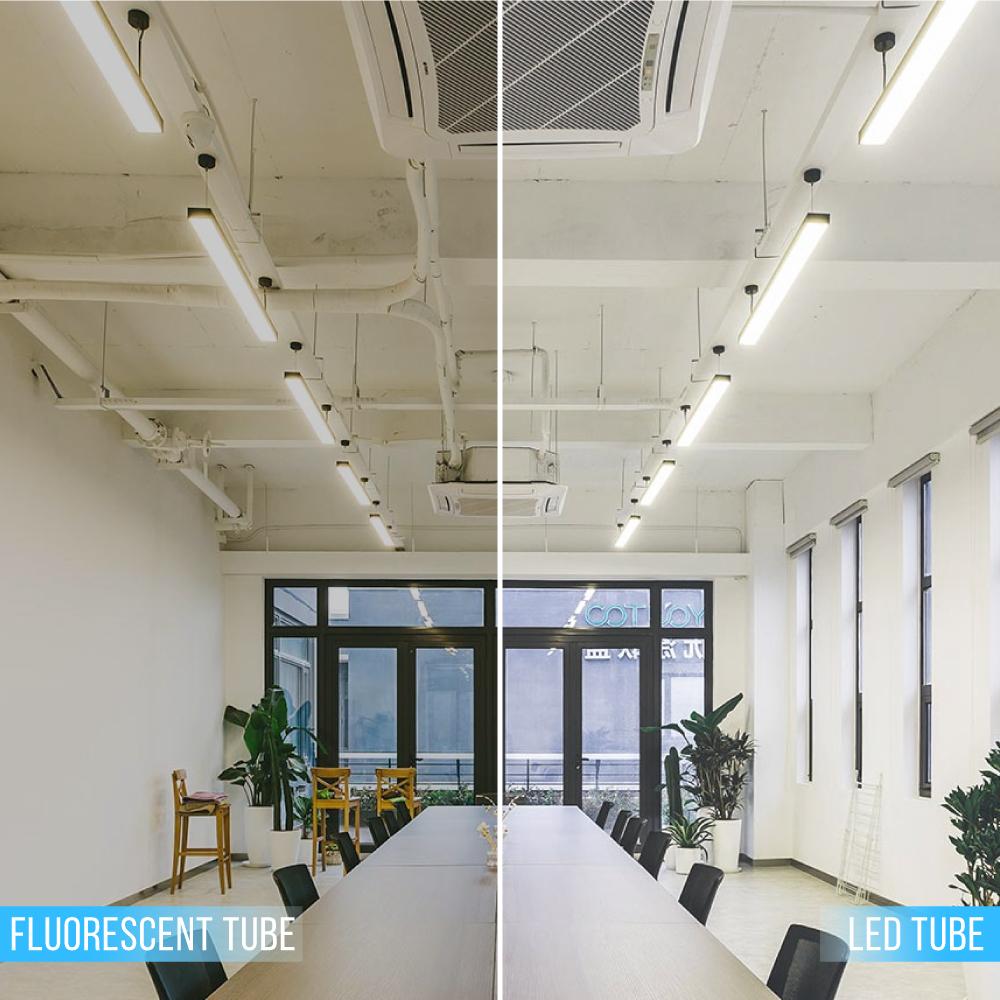

The LED tubes can save energy up to 75% in extreme contrast with fluorescent tubes that consume lot of energy to bring you a higher energy bill. We highly recommend going for our LED tubes that are an excellent combo of lumen brightness and energy-savings.

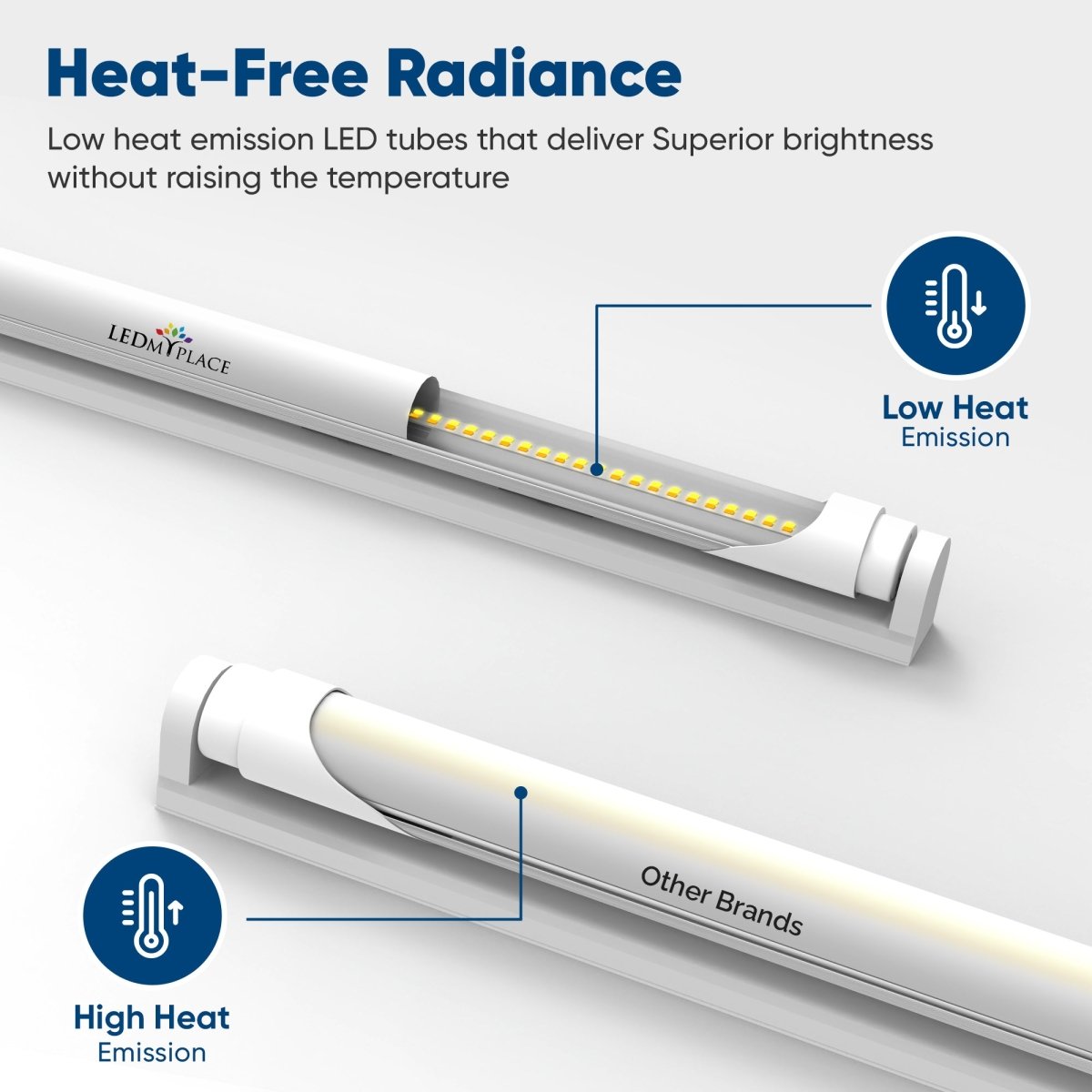

Aluminium Heat Sink
The LED tubes have a big heat sink made of aluminium and that’s a pretty good reason as to why the LED tubes don’t warm up too soon to be in consistent operation. This is in extreme contrast with the fluorescent tubes that warmed up too soon and required cooling down to operate efficiently.

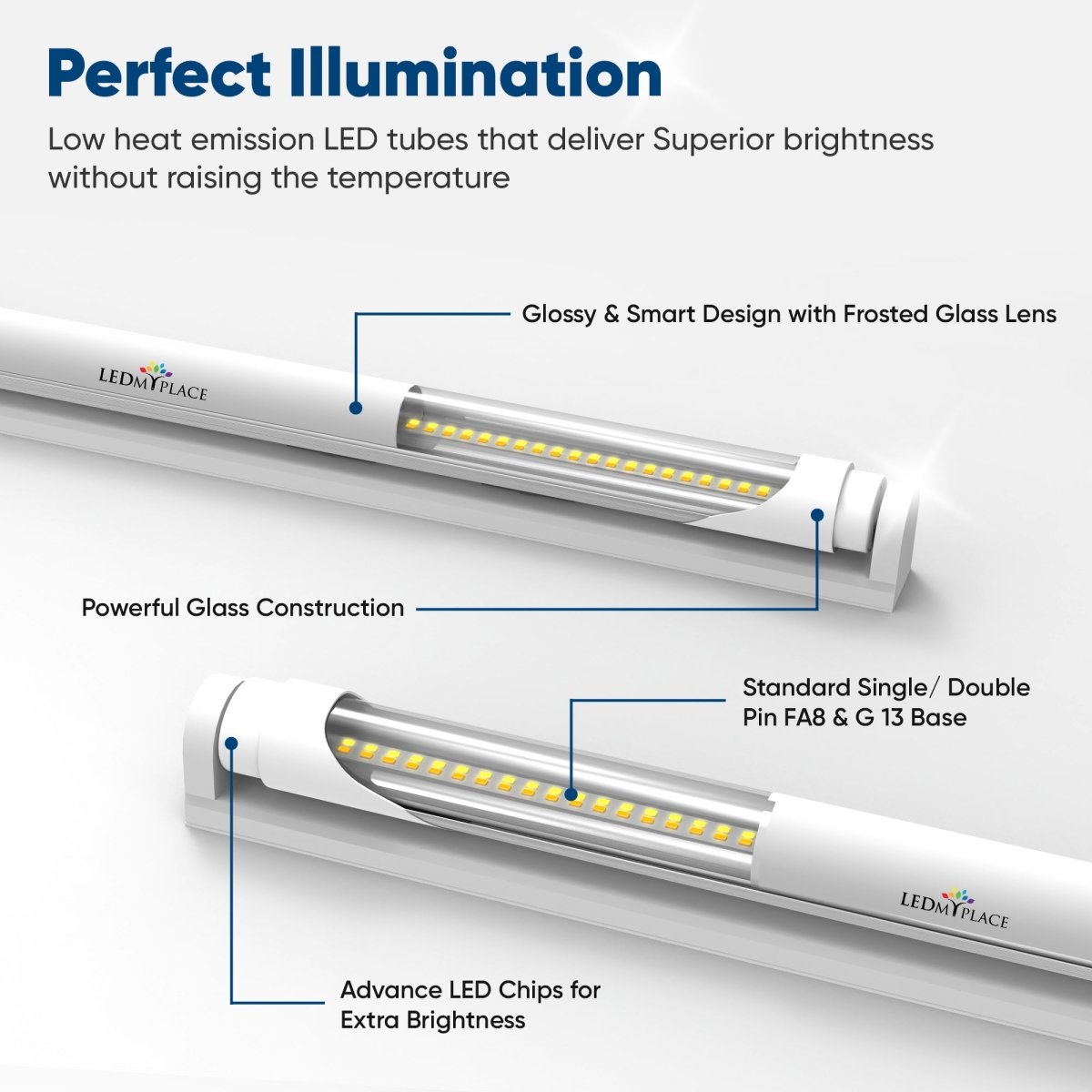

LED Chip
Embedded inside the LED tube is a high quality standalone chip -- SMD LED -- made from many number of chips to ensure high performance and reliability.
Rebate Eligible
The LED tubes were one of the first LED lighting products to have become rebate eligible. All our LED tubes are DLC approved to make you eligible for rebate.

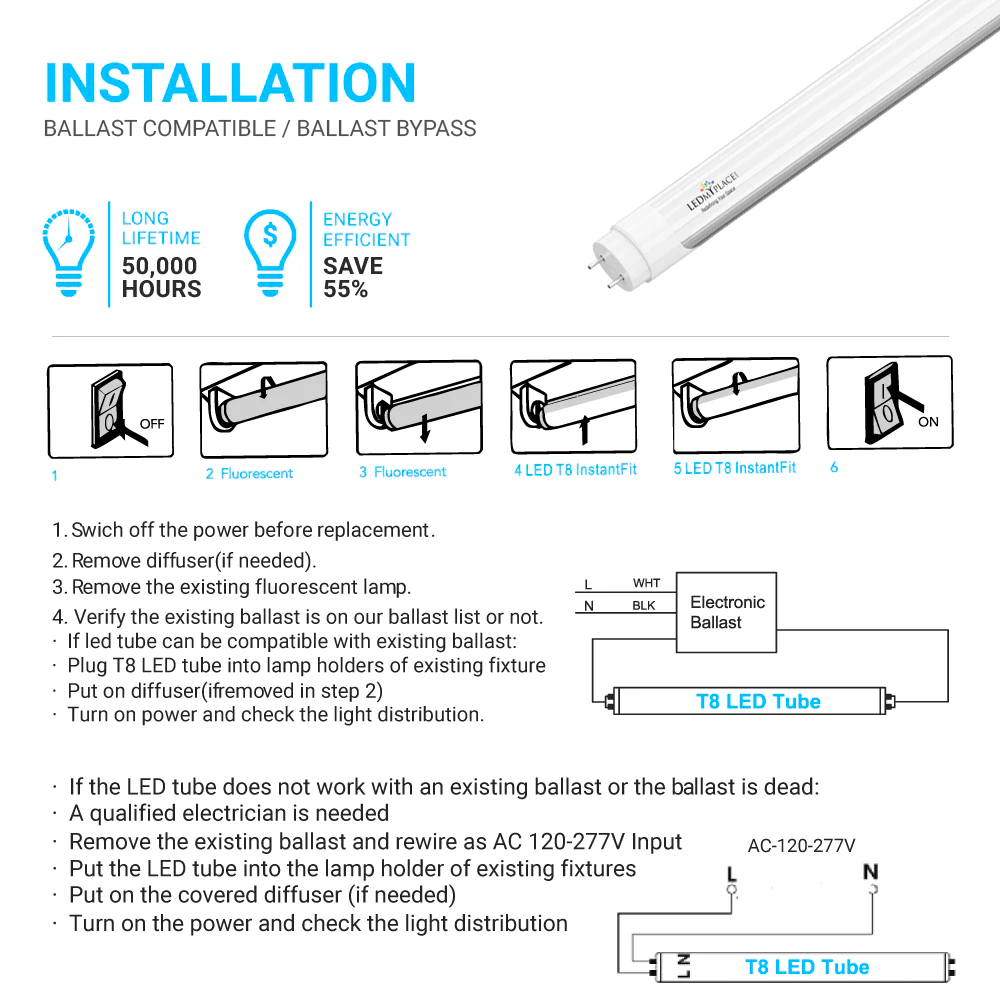

Tube Installation
Specifications
| Base Type: | G13 |
| Brand: | LEDMyplace |
| Color Rendering Index(CRI): | 80 CRI |
| Dimensions (L x W x H): | 47.75 x 1.15 x 1.32 |
| DLC Listed: | Yes |
| Housing: | Aluminum + Plastic |
| LED Type: | 2835 |
| Light Distribution: | 130-140 Lm/W |
| MPN (Part No.): | TB026 |
| Replaces: | 22w/20w/18w/15w/12w/10w Wattage Adjustable |
| Voltage: | 100-277 Volt |
| Wattage: | 22w/20w/18w/15w/12w/10w |
| Wiring: | Single Ended Power / Double Ended Power |
| Beam Angle: | 120° Beam Angle |
| Certifications: | ETL, DLC Listed |
| Color Temperature (Kelvin): | 3000k//3500K4000k/5000k/6000K/6500k |
| Dimmable: | No |
| DLC Model no.: | WEN-T8-20P4FT-AB-F(5000K) |
| IP Rating: | IP22 Rated |
| Life Hours: | 50,000 Hours |
| Lumens: | 1560 Lumens- 2860 Lumens |
| Power Factor: | 0.95 |
| SKU: | WENT84DUA-20WB-D-50M |
| Warranty: | 5 Years |
| Weight: | .66 Lbs |
| Operating Temperature: | -68 Degree F To +122 Degree F |
Product Review
Questions & Answers
Ask a Question-
If you remove ballast and wire direct is there a benifit such as energy consumption? Also if wired through ballast and ballast fails will the light still work or will you have to wire direct at that time ?
Yes, there is a saving on energy consumption if you remove the ballast. If the ballast fails during use, the light will not work until you direct wire it.
-
This product says compatible with MOST ballasts, so will it simply NOT turn on if it doesn't work with our type of ballasts or will it blow the bulb?
it wont damage the bulb , it will either come on kind of dim or wont come at all
