42800 Lumens - LED Pole Light/Shoebox Area Light - 300 Watt - 5700 Kelvin - 1050W Equal - Universal Mount-Photocell

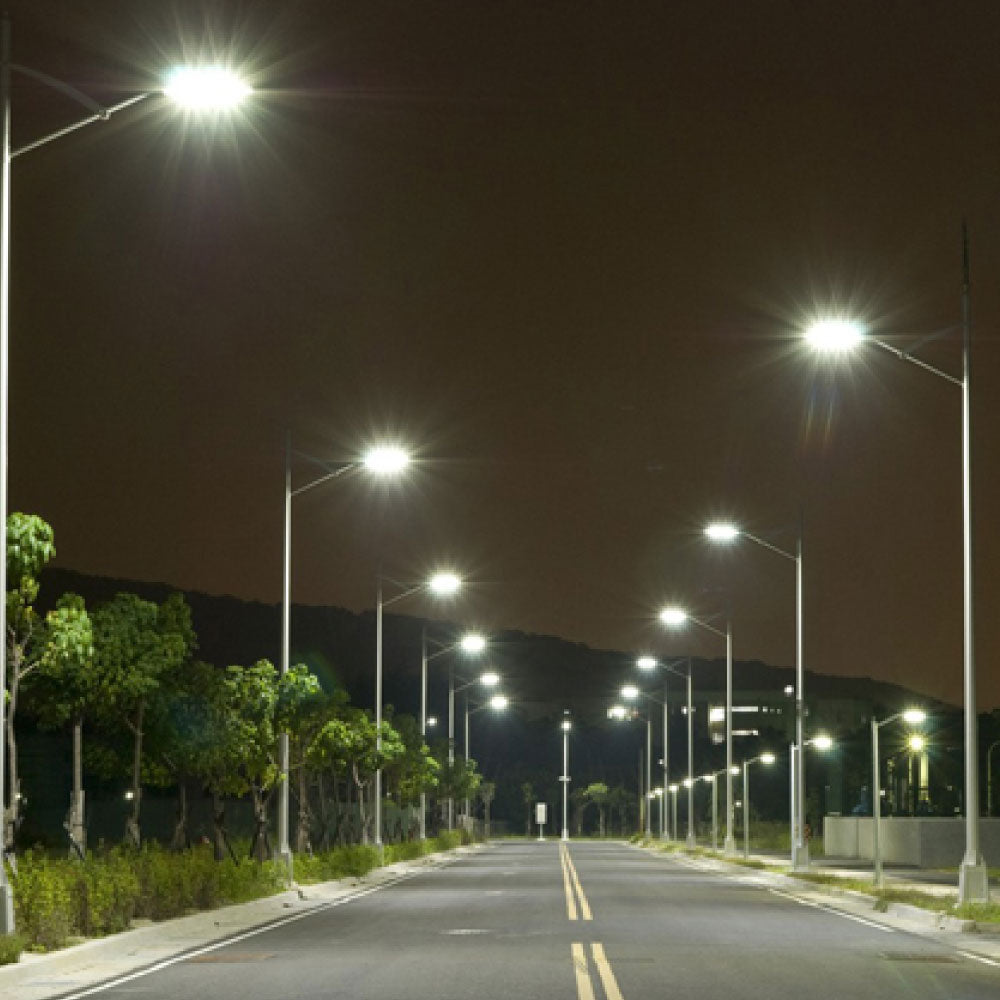

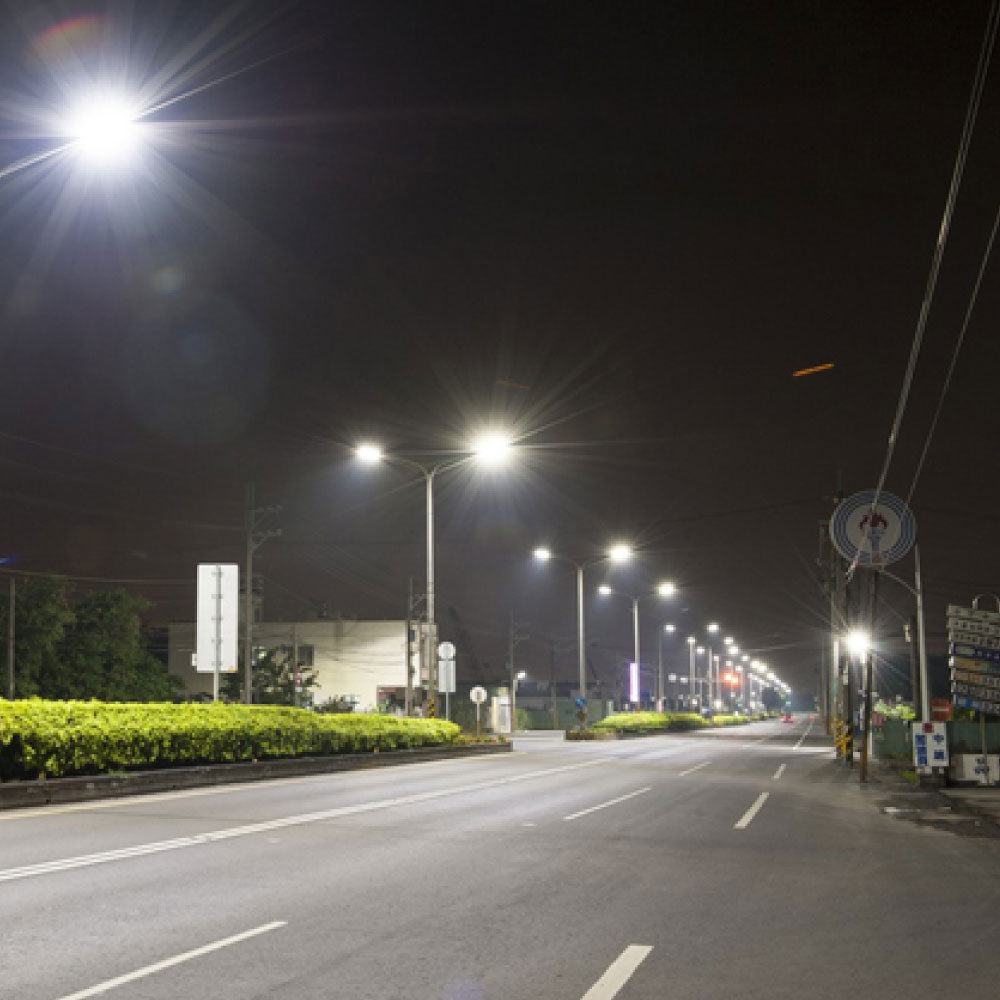

This outdoor led pole light fixture provides you with a high lumen output of 42800 lumens) producing bright white light to illuminate your surroundings. With a universal mount, you can install these lights easily at any place you desire. This fixture comes in a Color temperature of 5700K producing a 1-10V Daylight white illumination. With an IP65 rating approval, this LED Pole light fixture is built for outdoor illumination. Perfect for street lighting, area lighting, and parking lot lighting. This LED shoebox light of 300W is energy efficient and can replace HID that consumes 1050 Watts saving you a marginal amount on those utility bills. With a warranty of 5 years and a 30-day return policy, these LED Pole Lights become a practical investment.
Features of LED Pole Light 300W - High Voltage - 5700K - Universal Mount - 277-480V With Photocell
- Available Wattage: 300W
- Color Temperature Available: 5700K
- Luminous Flux Available: 42800 Lumens [136 lumens/watt]
- Wattage Equivalent: 1050W
- Lifespan: 50,000 hours
- Voltage: 277V - 480V [High Voltage]
- Color: Bronze
- Mounting Option: Universal Mount [Slip, Direct and Adjustable Mount]
- Photocell Sensor: Yes
- IP65 Rated
- cULus, DLC approved
- 5-year Manufacturer Warranty

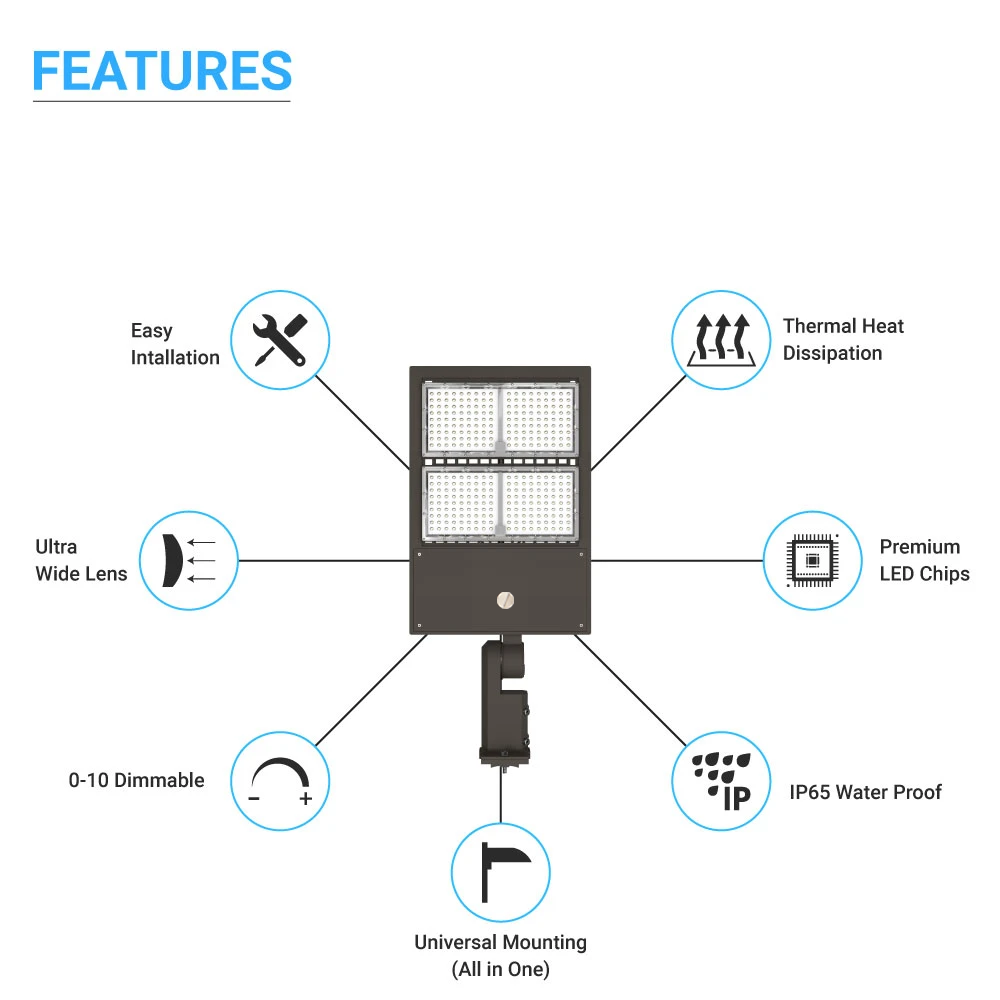

features Specs.
-
Easy Installation
-
Universal Mounting (All in One)
-
IP 65 Weather Proof
-
Polycarbonate Optics- For Optimal Performance and Durability
-
Commercial Grade Construction- For Optimal Performance and Durability
-
Thermal Heat Dissipation
-
Ultra Wide Angle Lens
-
Premium LED Chips
-
>80 CRI
-
Low Cost Maintenance
-
Vibration Test Pass
-
Rebate Eligible
-
Dusk To Dawn Sensor
-
Compatible Dimmers

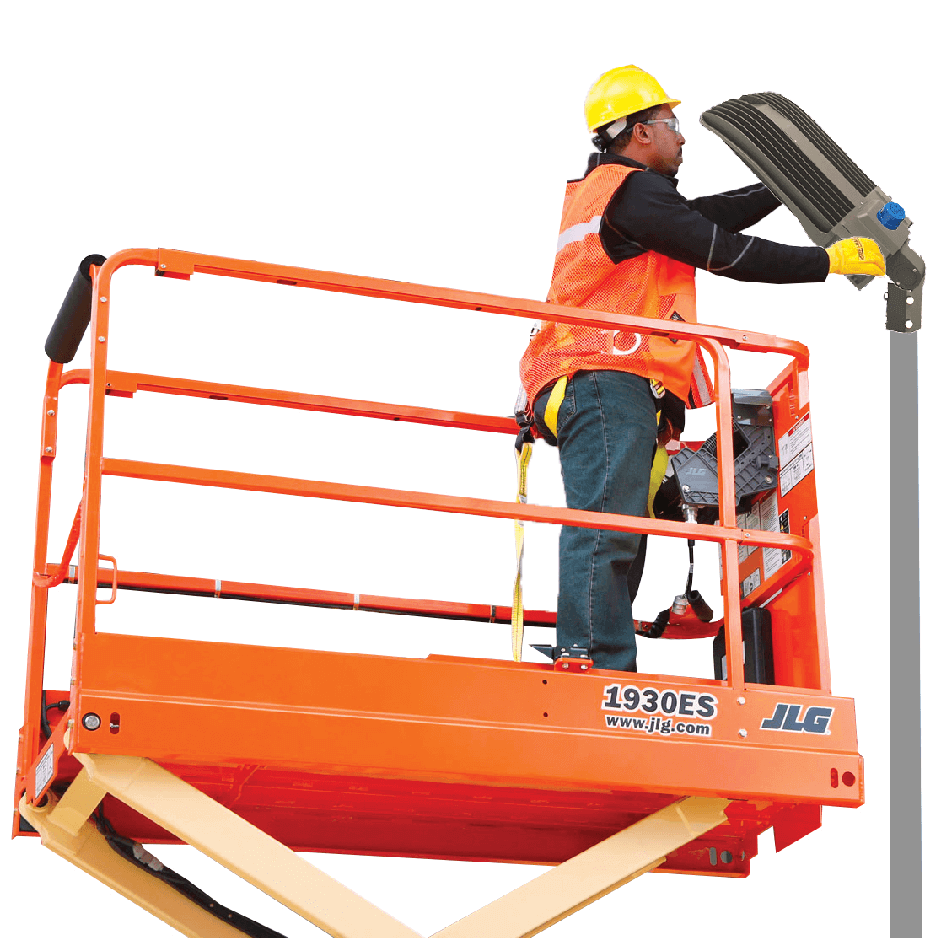

Easy Installation:
Extremely easy to install, these lights come with a universal mount, giving you the option to install them in any desired location be it a yoke, adjustable slip fitter, knuckle mounting, or just a plain wall.

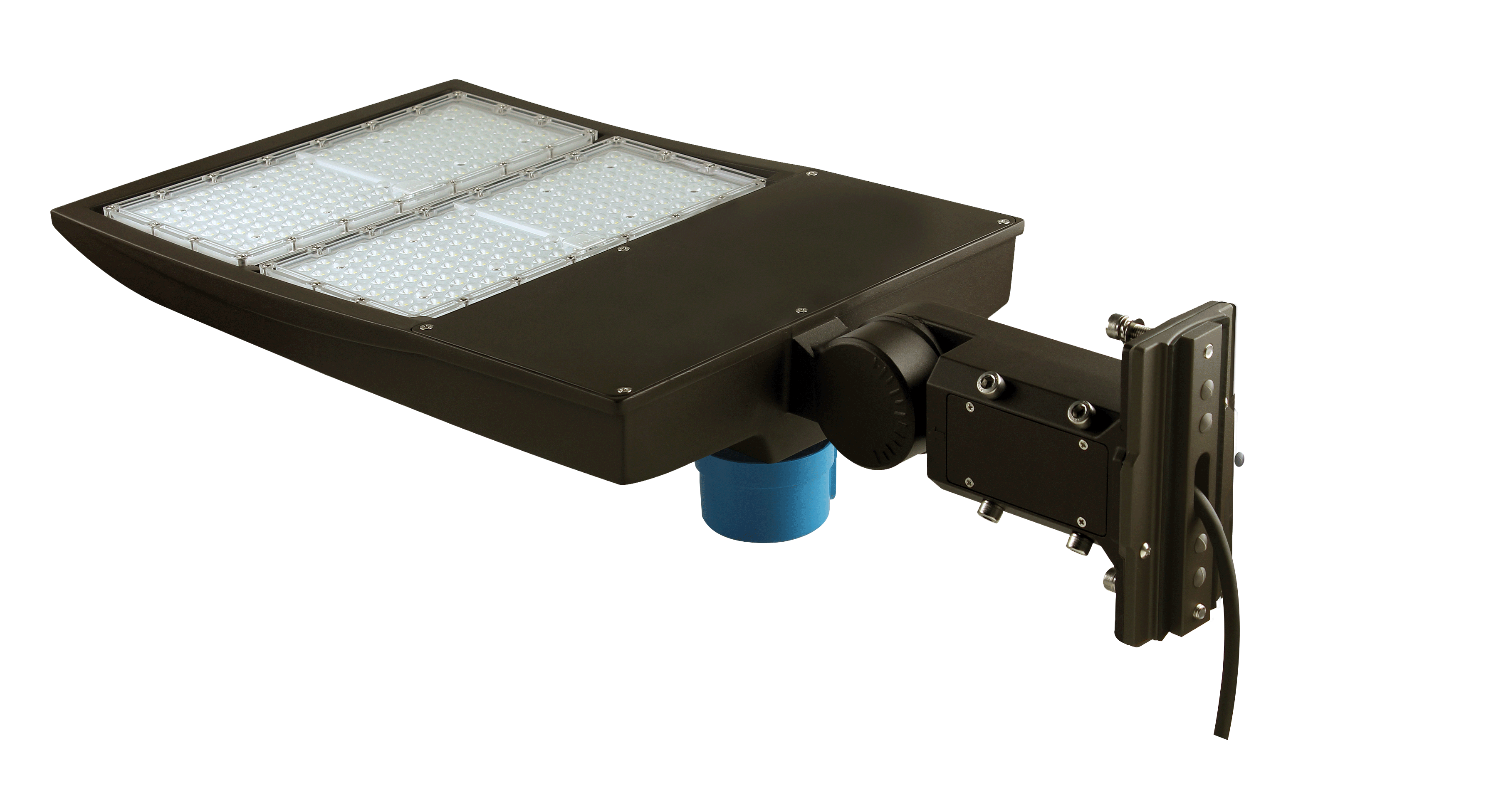

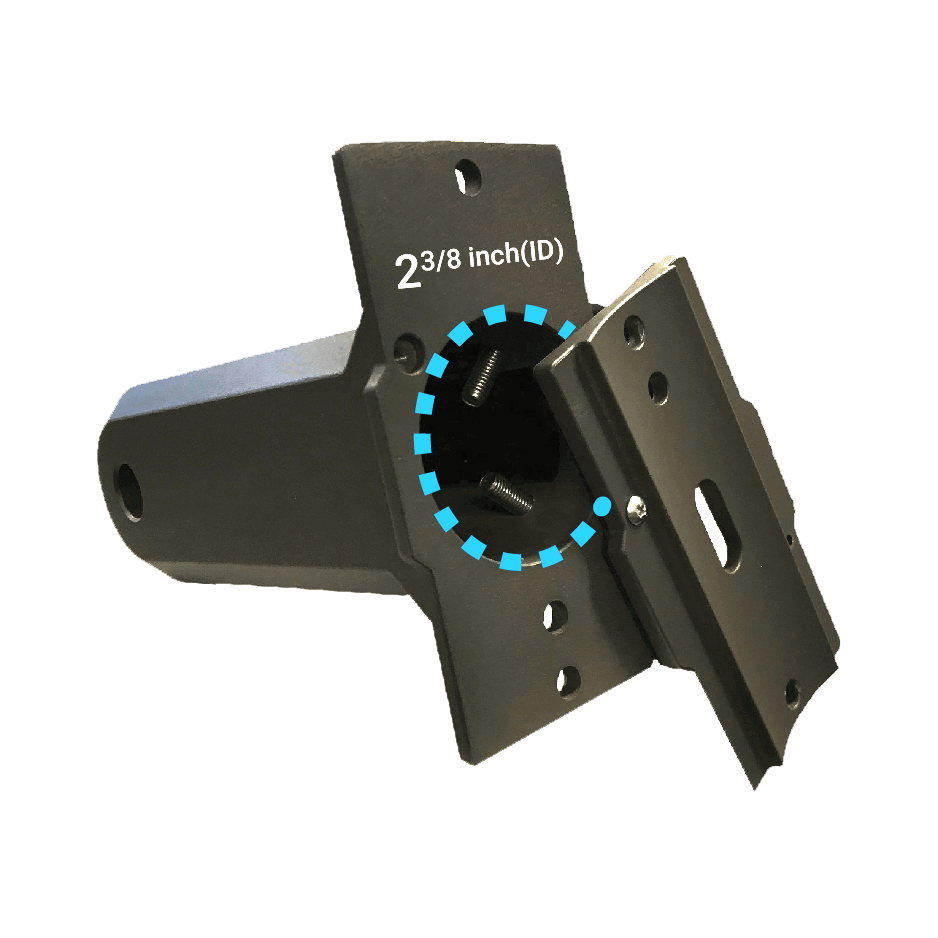

UNIVERSAL MOUNTING (All in One)
LEDMyplace offers one of the best mounting options that lowers your installation costs by enabling a hassle-free, easy self-installation. This is suitable for both kinds of poles - round, square and also for wall mounting with flexibility to adjust the head. Apart from easy self-installation, the universal mounting option also reduces your time by not requiring any re-drilling or cutting any pole tops when allowing for a change in the mounting process. With just two holes inside the poles and with just two bolts, you can easily undertake Universal Mounting. Our 300W LED pole light luminaire thus enables mounting in two ways -- vertical and horizontal. And, what you get out of these options is -- an enhanced optical control and to a certain degree the luminaire efficiency.

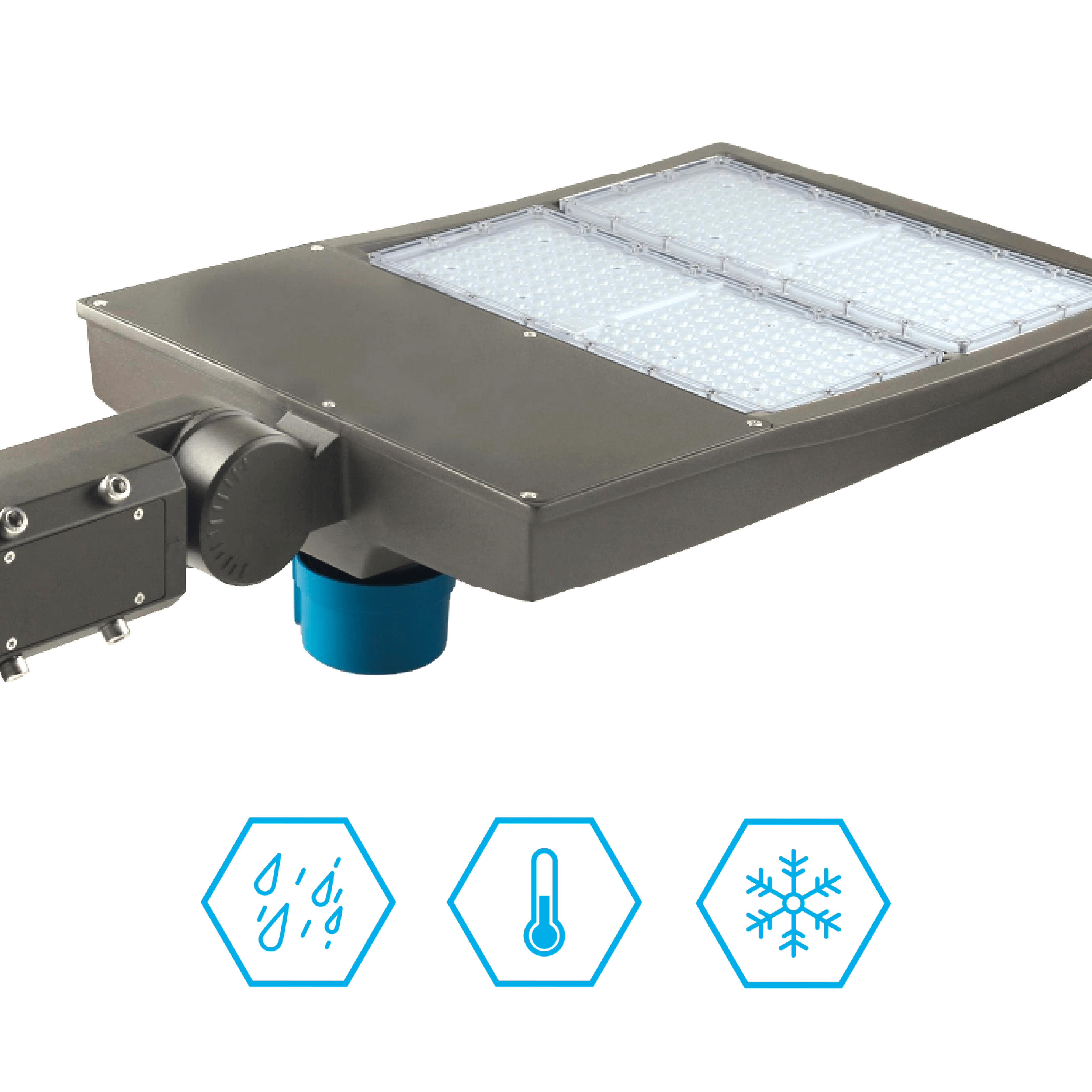

An IP65 Rating for Water-Resistance:
This LED pole light comes with an IP65 certified driver that can withstand harsh weather conditions. The lighting fixture is designed and tested to resist ingress of dust, dirt, or water (from the water jet or rainfall) making them dust and splash-proof. Hence, these LED Pole lights are ideal to use in outdoor locations where there are chances of dust, dirt, and dampness.

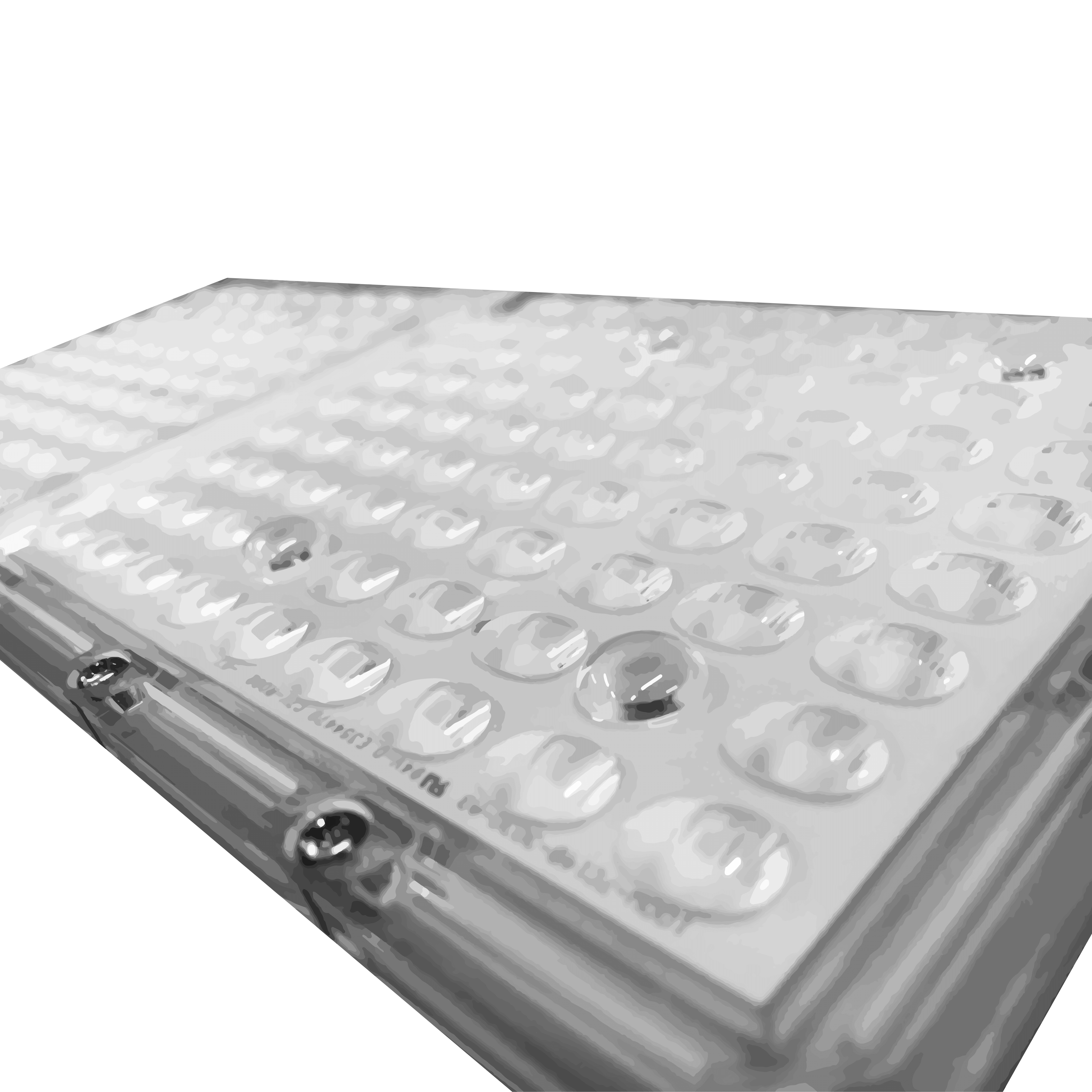

Polycarbonate Optics - For Optimal Performance and Durability:
Polycarbonate is used as an outer coating for our LED Pole light which results in optimal lighting performance and durability. The polycarbonate is responsible for dimensional stability, and high resistance towards external heat and any other impact.

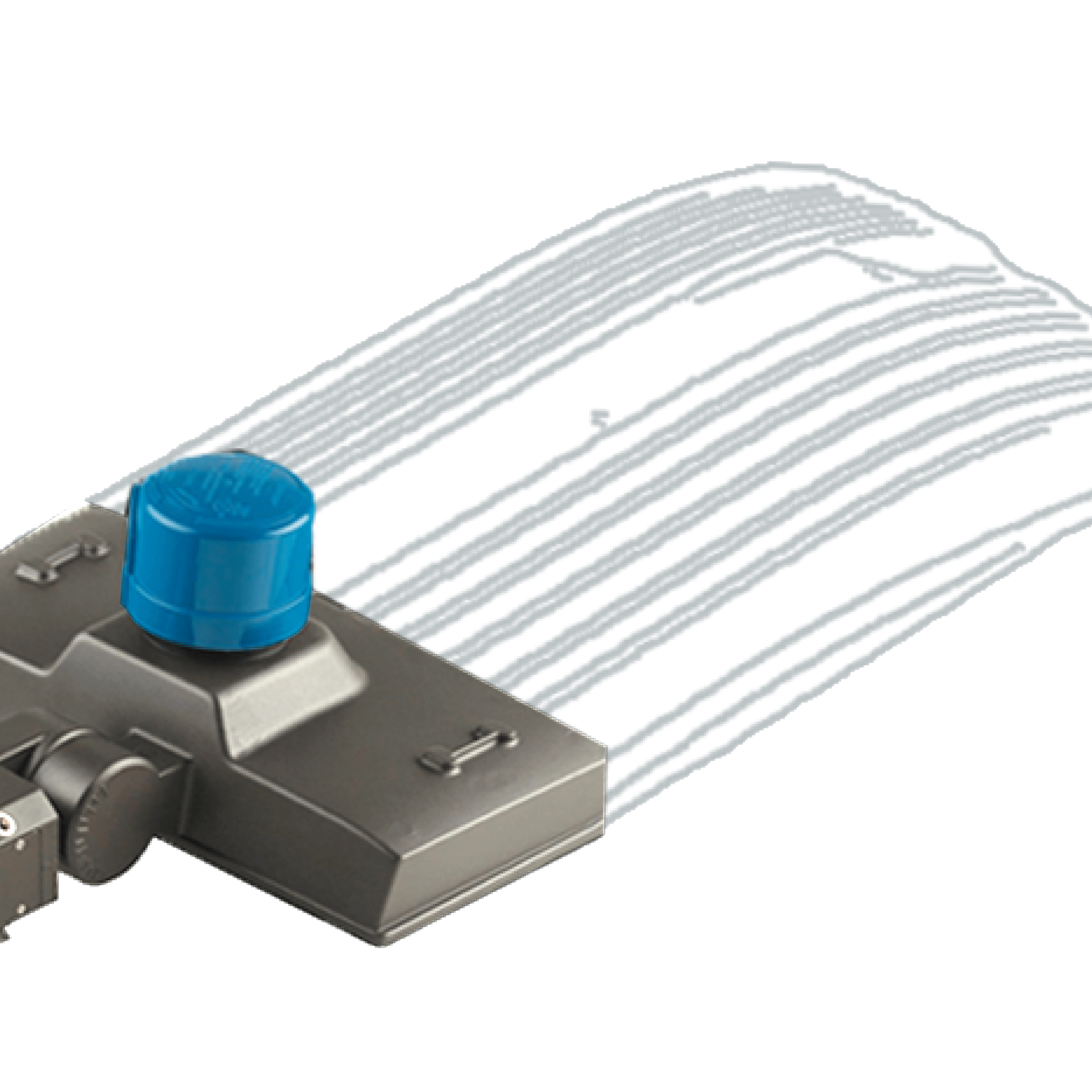

Rugged Construction:
LED Pole lights have a robust build and simple design. With rugged aluminum casing on the outside, our outdoor area lights are built for durability. These lights can handle wind, dust, moisture, or snow. With a sturdy build and a tested lifespan of 50,000 hours our LED lights are a superior luminaire compared to HID or metal-halide lamps.

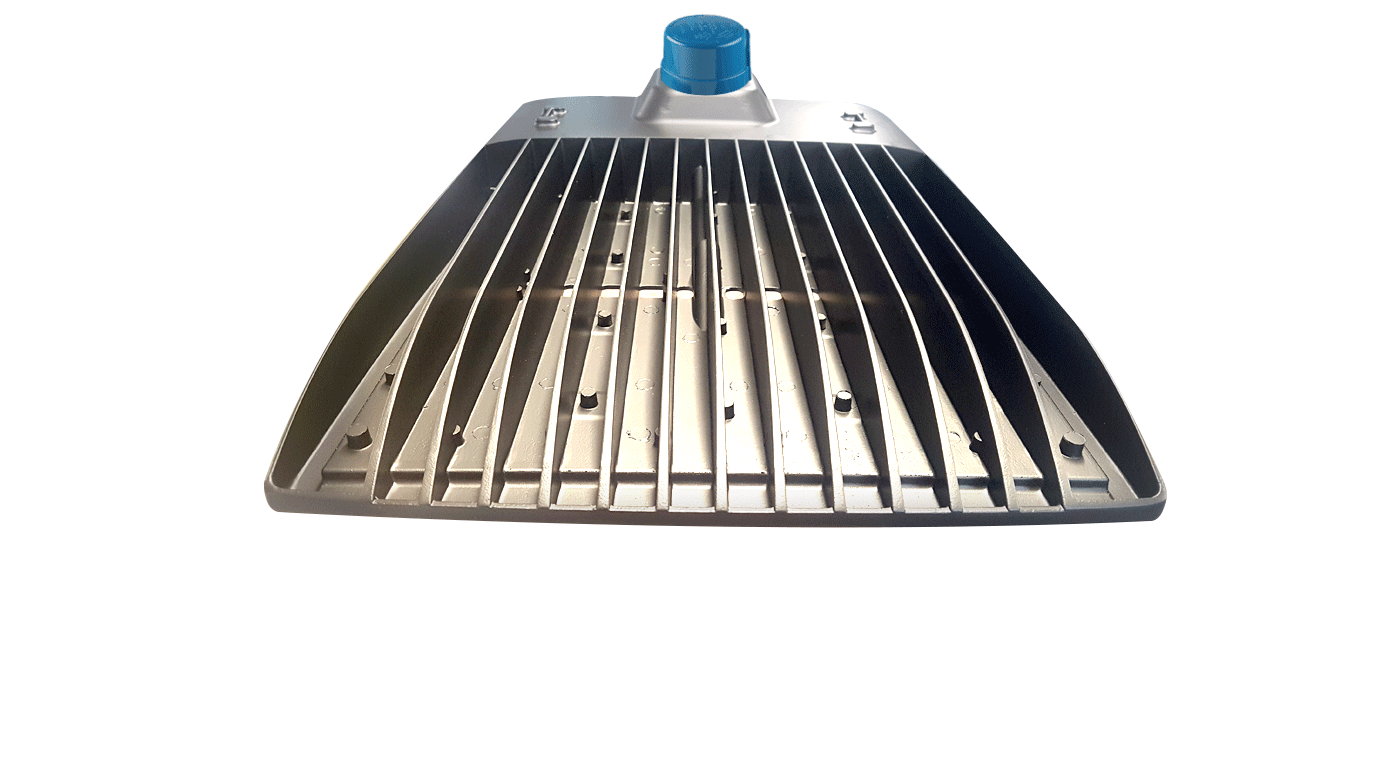

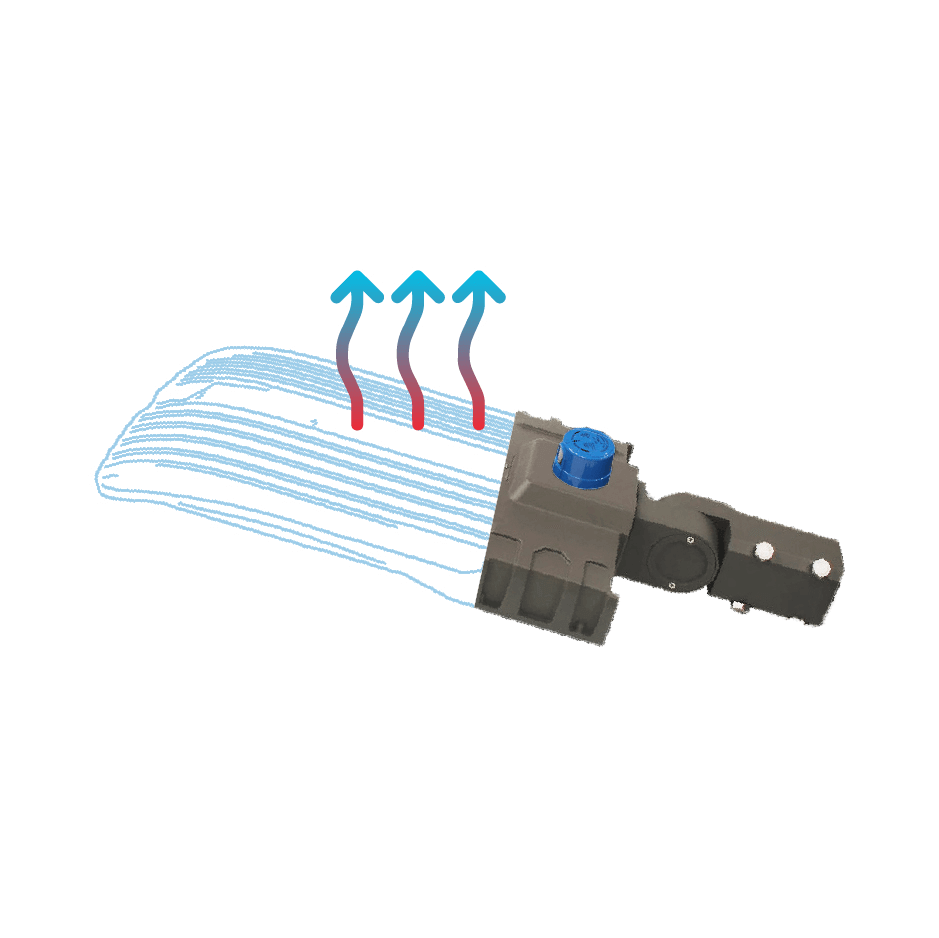

Thermal Heat Dissipation:
The High performance modular LED street light fixtures are engineered to remove heat through quality thermal management. For efficient and effective dissipation of heat, aluminum is used in the heat sink inside these high voltage pole lights. Being a good conductor aluminum can dissipate heat more easily. Giving these lights better durability and performance.

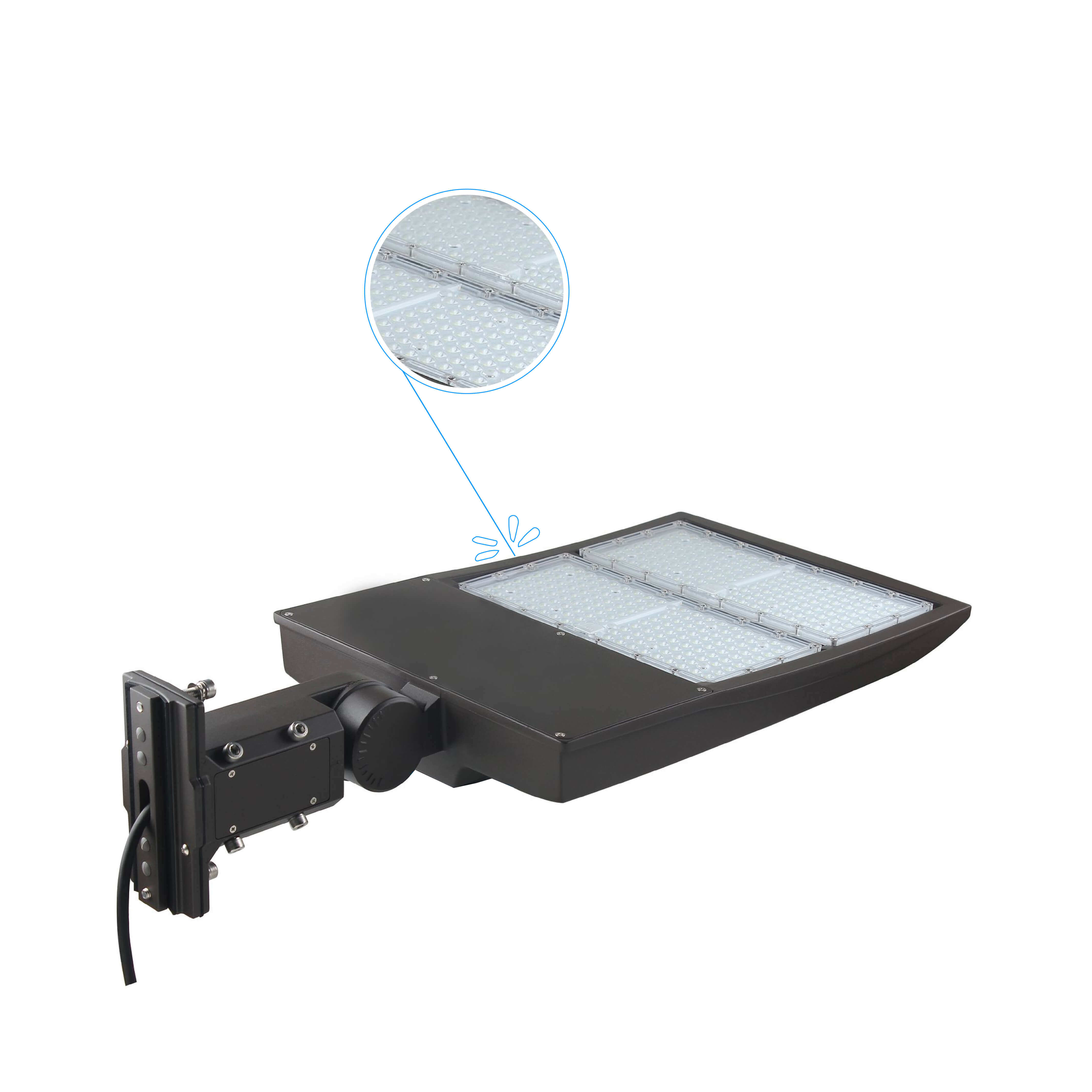

Ultra Wide Angle Lens
The PCB mounted LED technology comprised of multi-cluster LED's on single metal core board and is available in various color temperature options of 3000K, 4000K and 5700K with CRI of 80 minimum.Polycarbonate prismatic optics ensure longevity and maximise dirt and bug resistance. Zero uptight optics reduce sky glow and meets Dark Sky requirements. Our special polycarbonate optics provide overlapping pattern on application space eliminating dark spots. The use of ultra wide angled polycarbonate optics provides high application efficacy, uniformity, and glare control, with more uniformed light distribution, especially over wide areas and spaces.

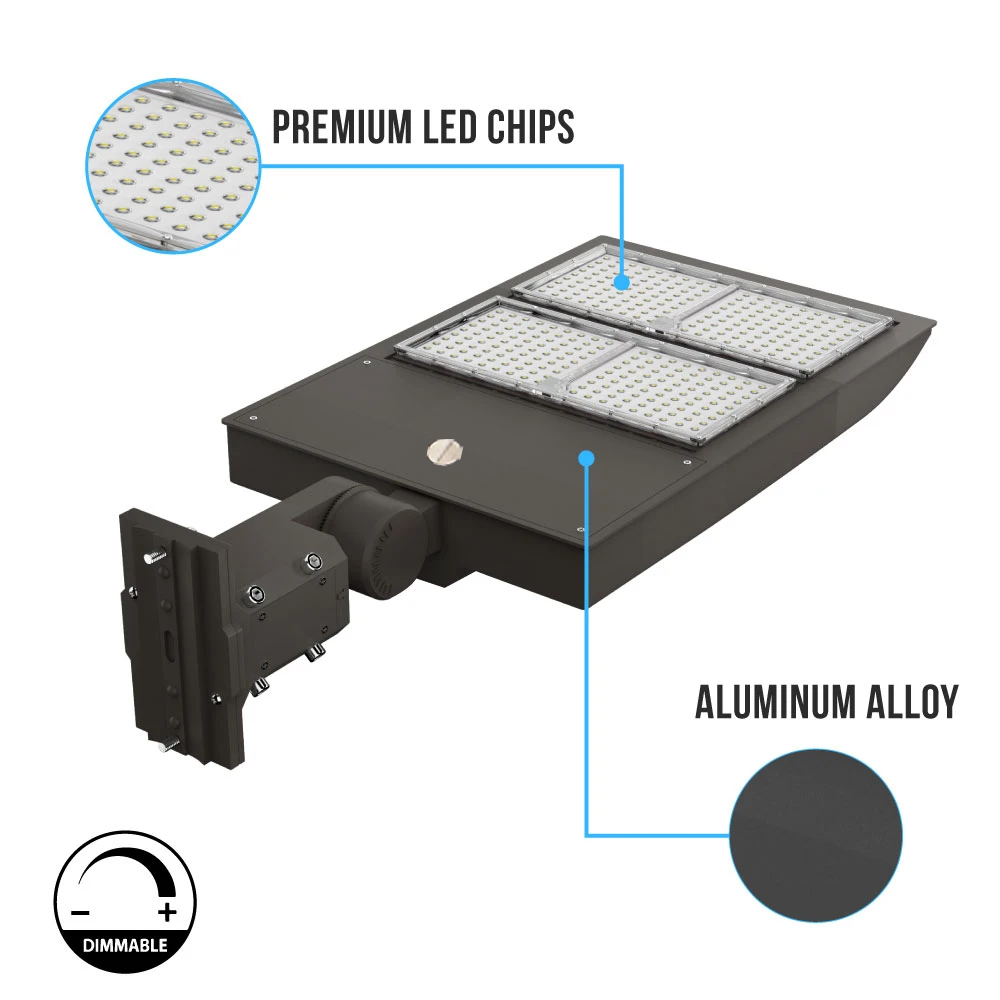

Premium LED Chips:
Customer satisfaction is our first priority, that's why we ensure the best quality by using premium quality chips inside our LED light fixtures making them work with the highest operational efficiency.

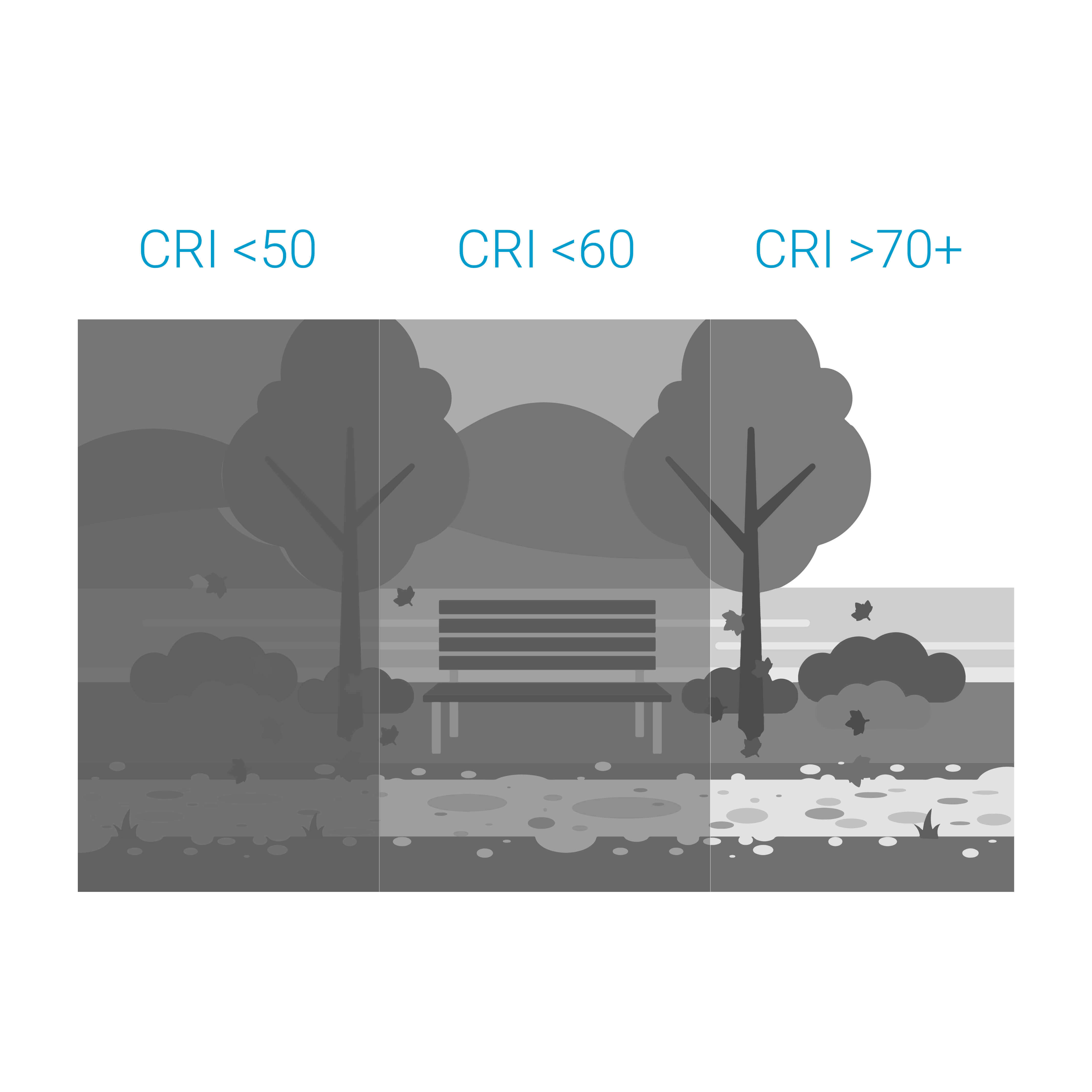

>80 CRI:
The LED Pole light has a Color Rendering Index(CRI) of 80, which means the colors you see under this light are accurate up to 70% compared to daylight(CRI=100).
Low-Cost Maintenance:
The LED pole lights are extremely low maintenance as it uses the latest LED technology. Moreover, with a low lumen depreciation, these lights function flawlessly until the end of their lifespan reducing maintenance costs.

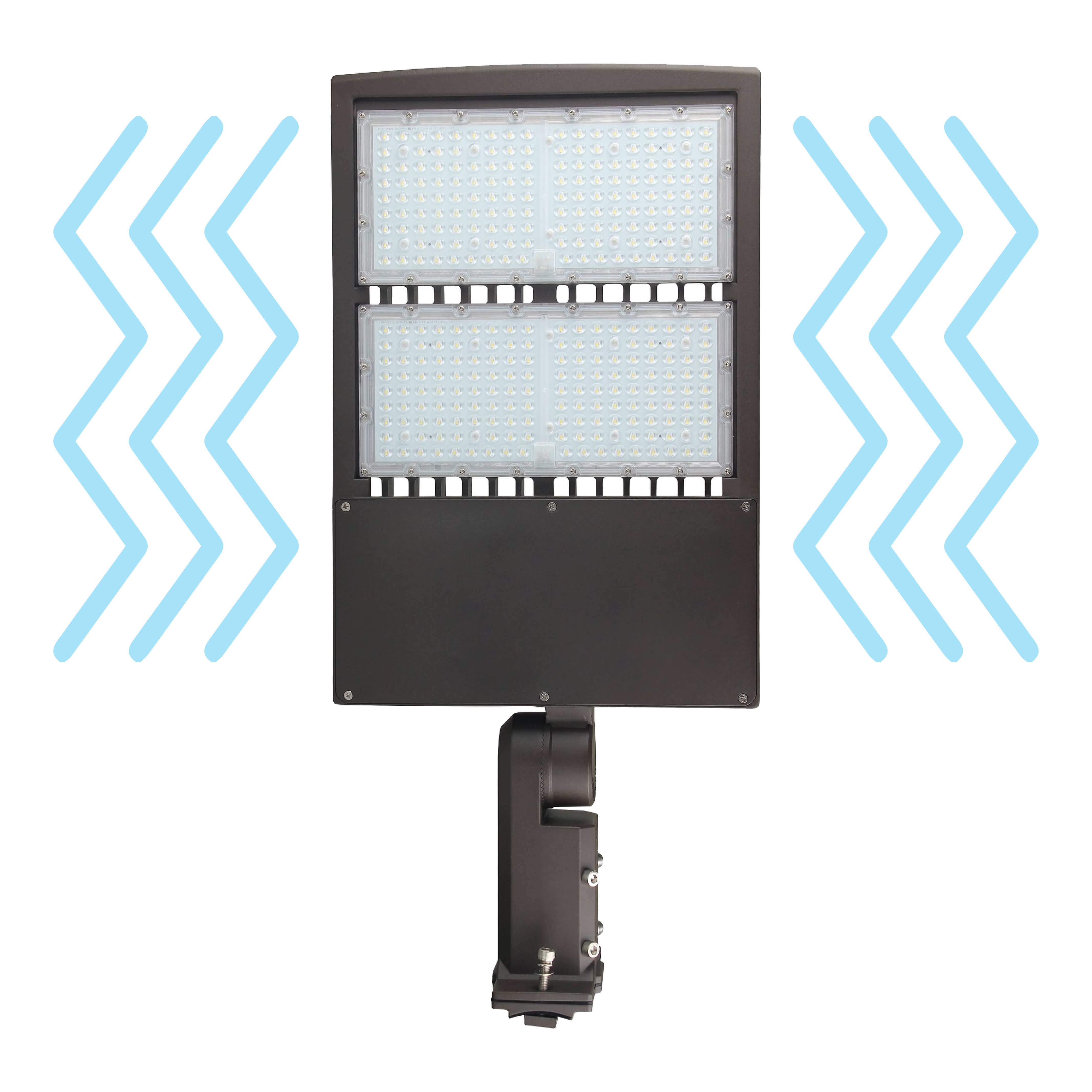

Vibration Test Pass
It is required to test the luminaires for assuring that the fixtures are resistant to vibration. All our LED Lights have cleared pre-qualified tests for vibration. The vibration testing makes sure that the LED fixtures do not have any lack such as; loose parts, structural damage, power off, or any other anomalies.

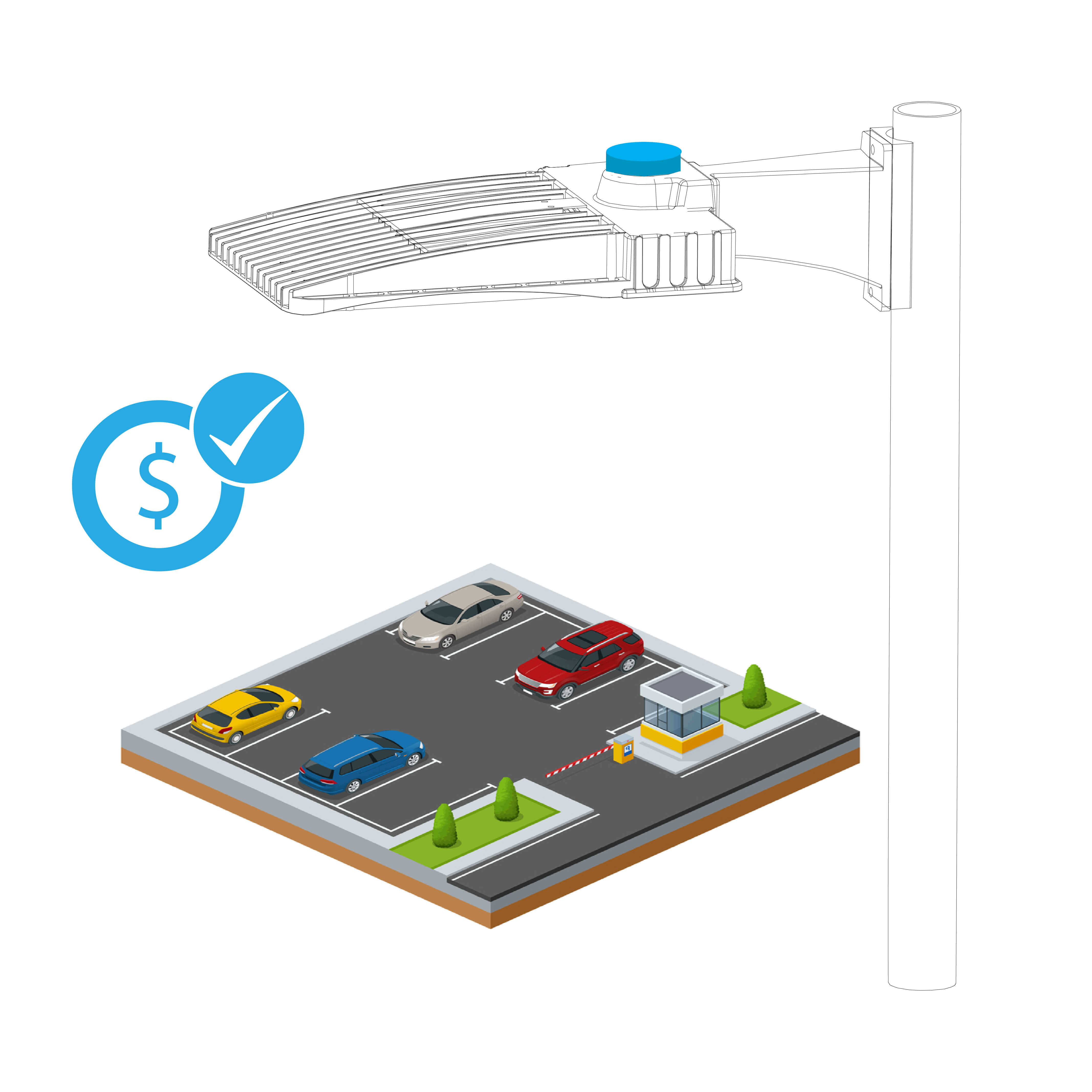

Rebate Eligible
LEDMyplace 300W Pole Light with Photocell Sensor are UL, CUL, DLC, CE, ROHS Approved, making them stand eligible for rebates with MOST of the electric companies (we can help with paperwork also)

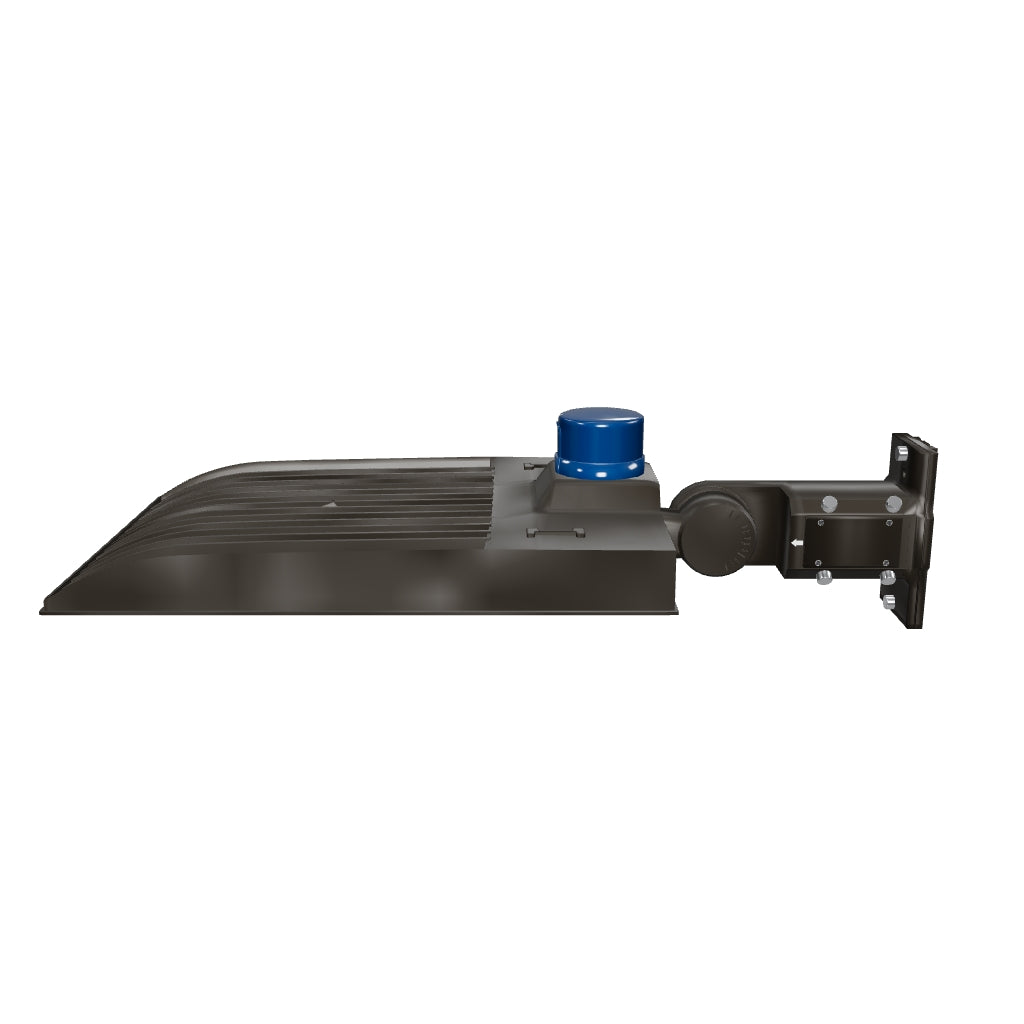

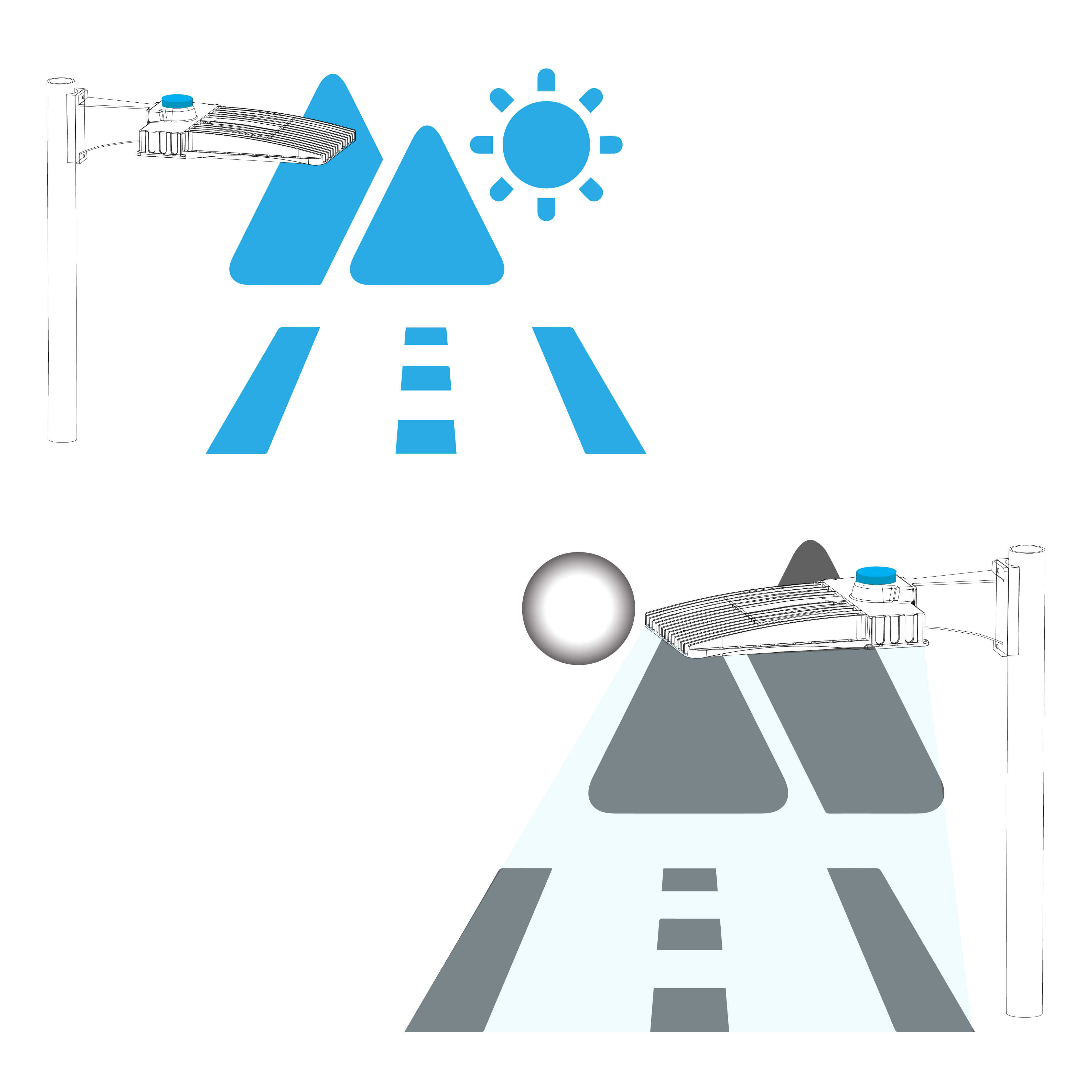

Dusk To Dawn Sensor
Depending upon the amount of light reaching the fixture, the Dusk to Dawn sensor gets automatically trigerred. This sensor light fixture will Auto On at night, Auto off in Daytime, Built -in Photocell Sensor will work automatically according to surrounding brightness. These sensors improve the security and safety at the location by automatically turning on lights when it gets dark or they detect motion. This results in auto-energy saving, when lights get turned off.
Compatible Dimmers
This product is compatible with the following dimmers. These dimmers work perfectly with our lights.
- DS710
- IP710
- NTSTV-DV
- NFTV
- DVTV-WH
- H4FBL3PW
**For any other Dimmer please contact our customer support or check with your electrician.
Installation Instruction
Specifications
Beam Angle: | 150x85° Beam Angle |
Certifications: | UL, DLC Listed |
Color Temperature (Kelvin): | 5700 Kelvin |
Dimmable: | 1-10V Dimmable |
Fixture Color: | Bronze |
IP Rating: | IP65 Rated |
Lumens: | 42800 Lumens |
Replaces: | 1050 Watt Replacement |
Voltage: | 277-480 Volt |
Wattage: | 300 Watt |
Operating Temperature: | -4 Degree F To +113 Degree F |
Brand: | LEDMyplace |
Color Rendering Index(CRI): | >80 CRI |

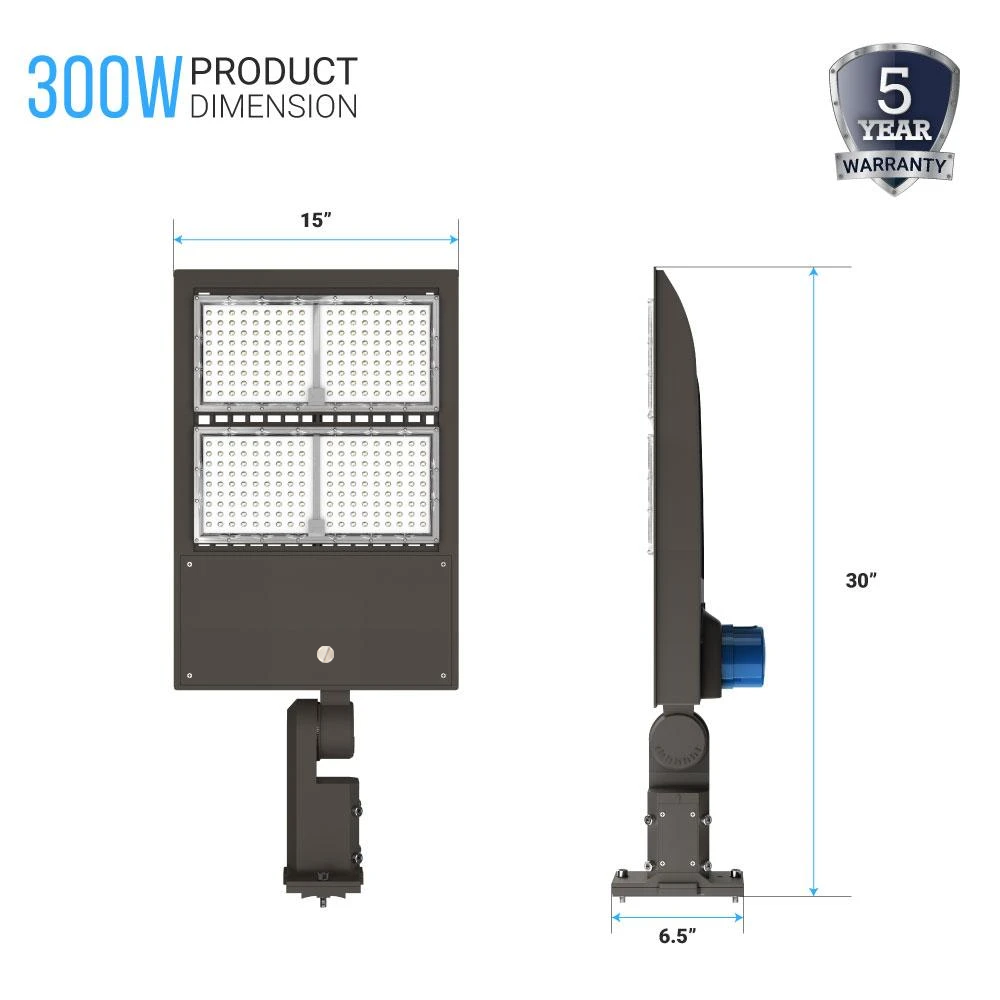

Dimensions (L x W x H): | 29.3 x 13.2 x 6.2 |
DLC Listed: | Yes |
Housing: | Aluminum |
Life Hours: | 50,000 Hours |
MPN (Part No.): | PL023 |
SKU: | Bronze-HIGHVOLTAGE-WEN-S300HLT3[AM,YM,DM]A1-5700K |
Warranty: | 5 Years |
Weight: | 29 lb |
Product Review
Questions & Answers
Ask a Question-
Hi Rae these available in white?
I am afraid that we don't have white colour in high voltage, however we have white colour in low voltage. Please find the link below :
https://www.ledmyplace.com/products/300w-led-pole-light-with-photocell-5700k-universal-mount-white-ac100-277v
