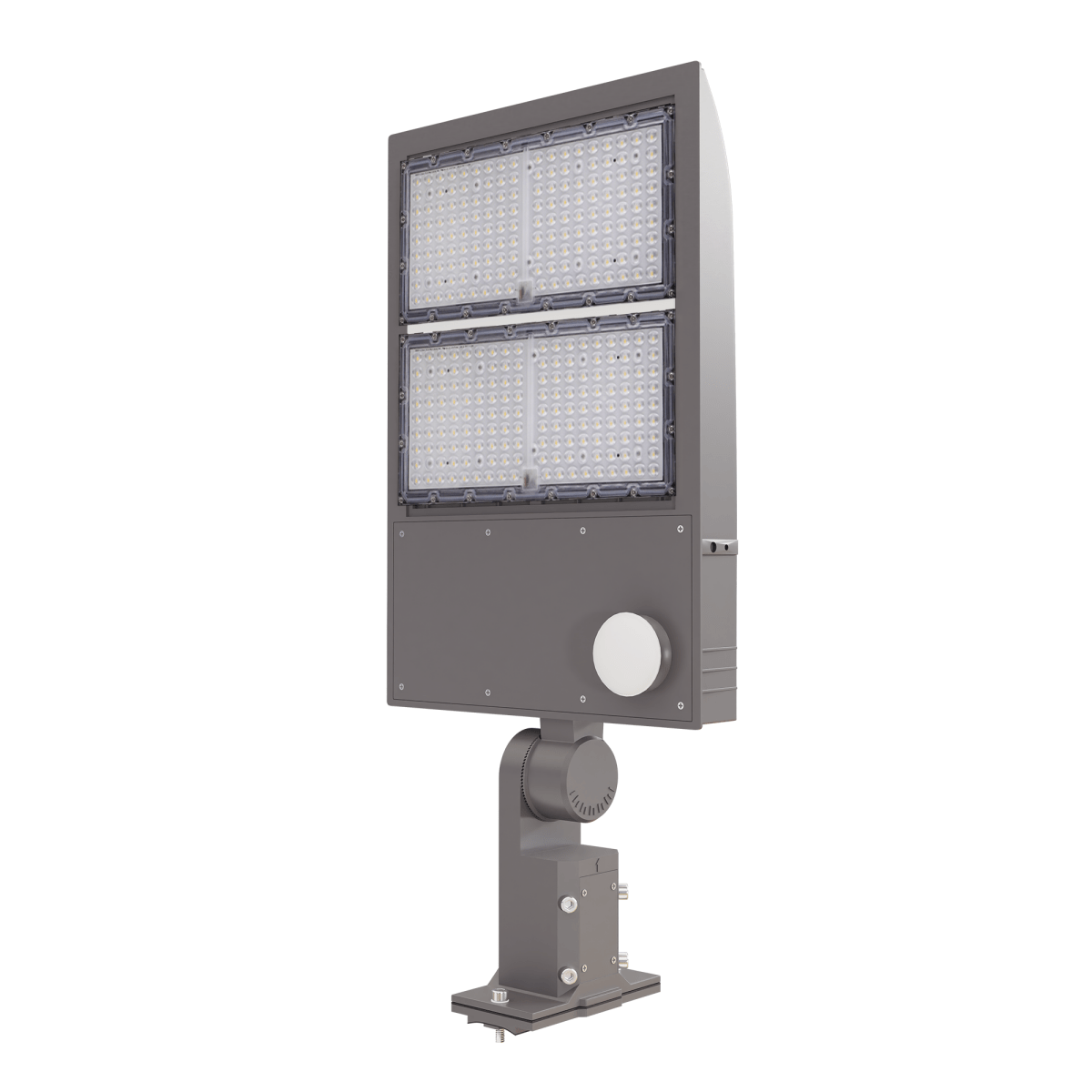

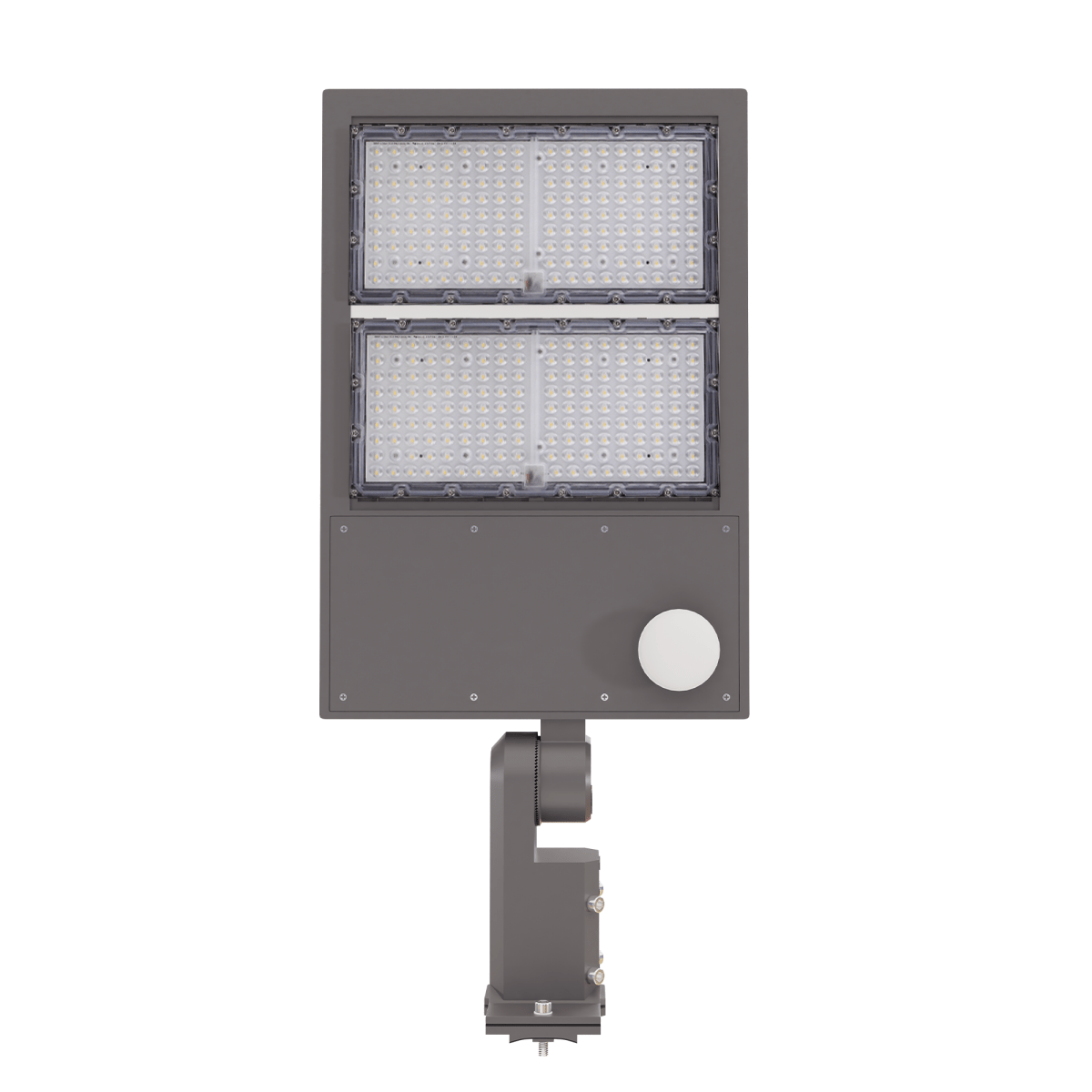

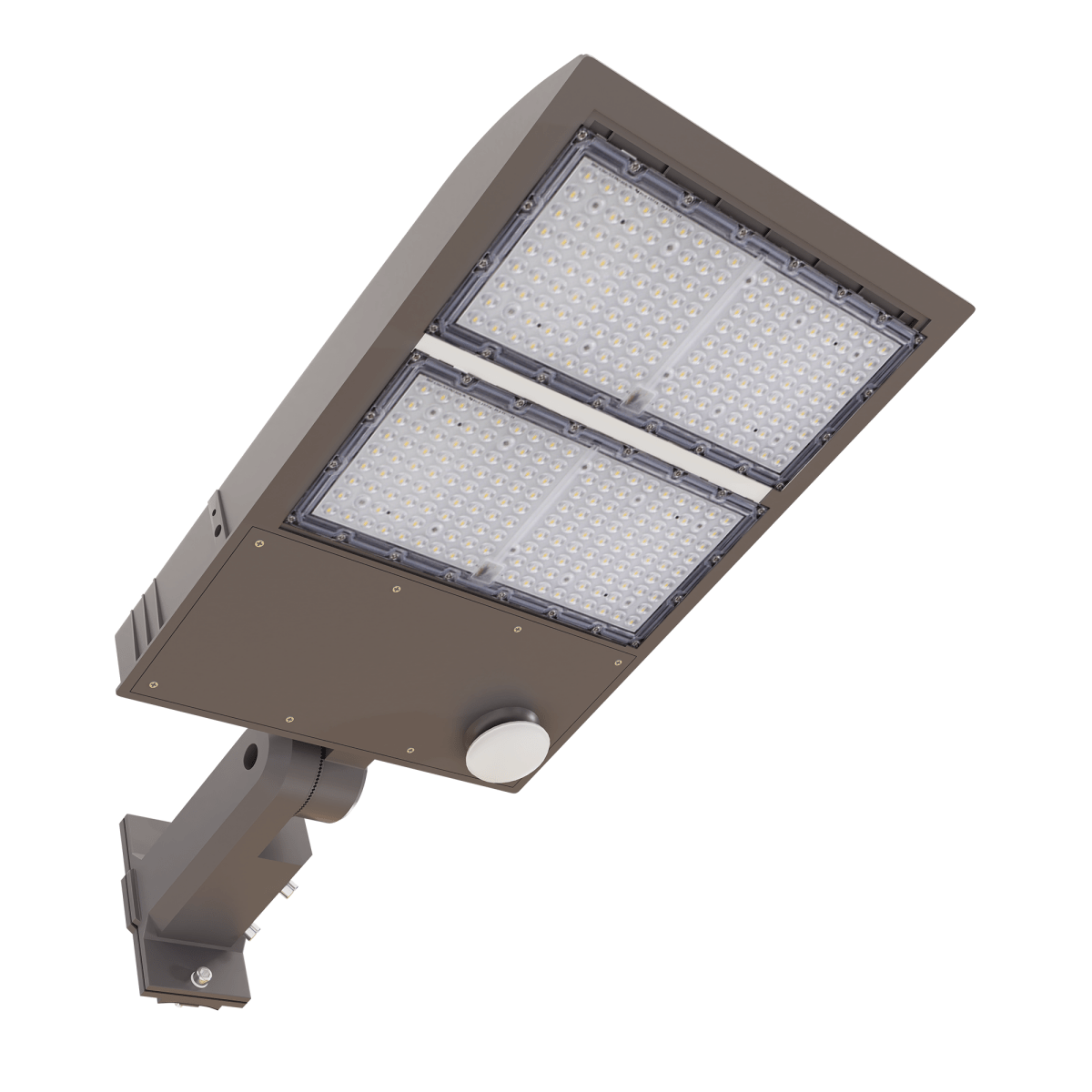

The Gen14B LED Shoebox Light delivers powerful 300W illumination with a bright 5700K color temperature. Featuring a bronze finish, this light includes a built-in photocell, A&DM technology, and a DC motion sensor for automatic and efficient operation. With selectable wattages of 300W, 240W, and 200W, it operates on AC120-277V and is factory-set at 300W. Ideal for parking lots, streets, and large outdoor areas, it combines durability with energy efficiency.
Features of 300W LED Pole Light With Photocell & Motion Sensor

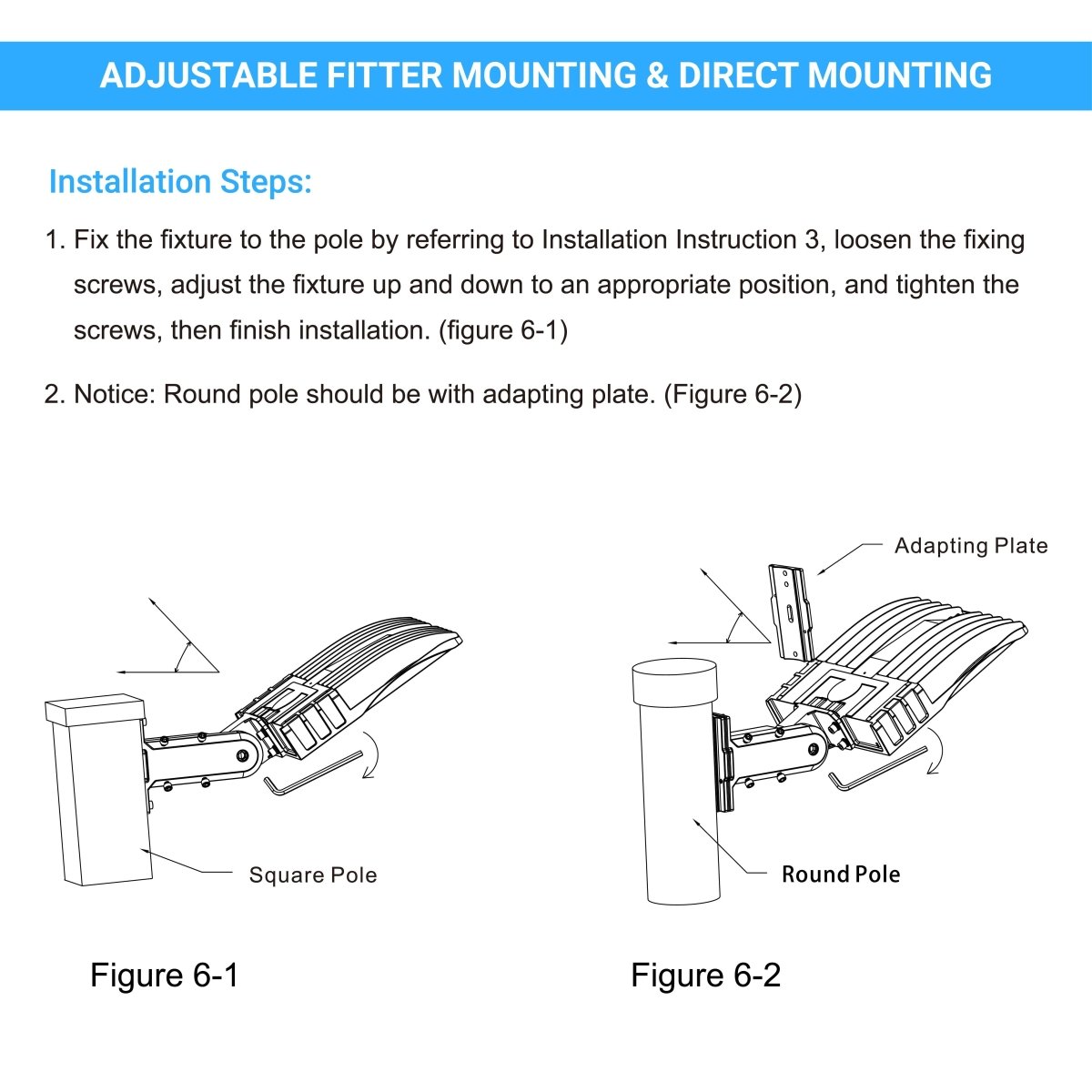

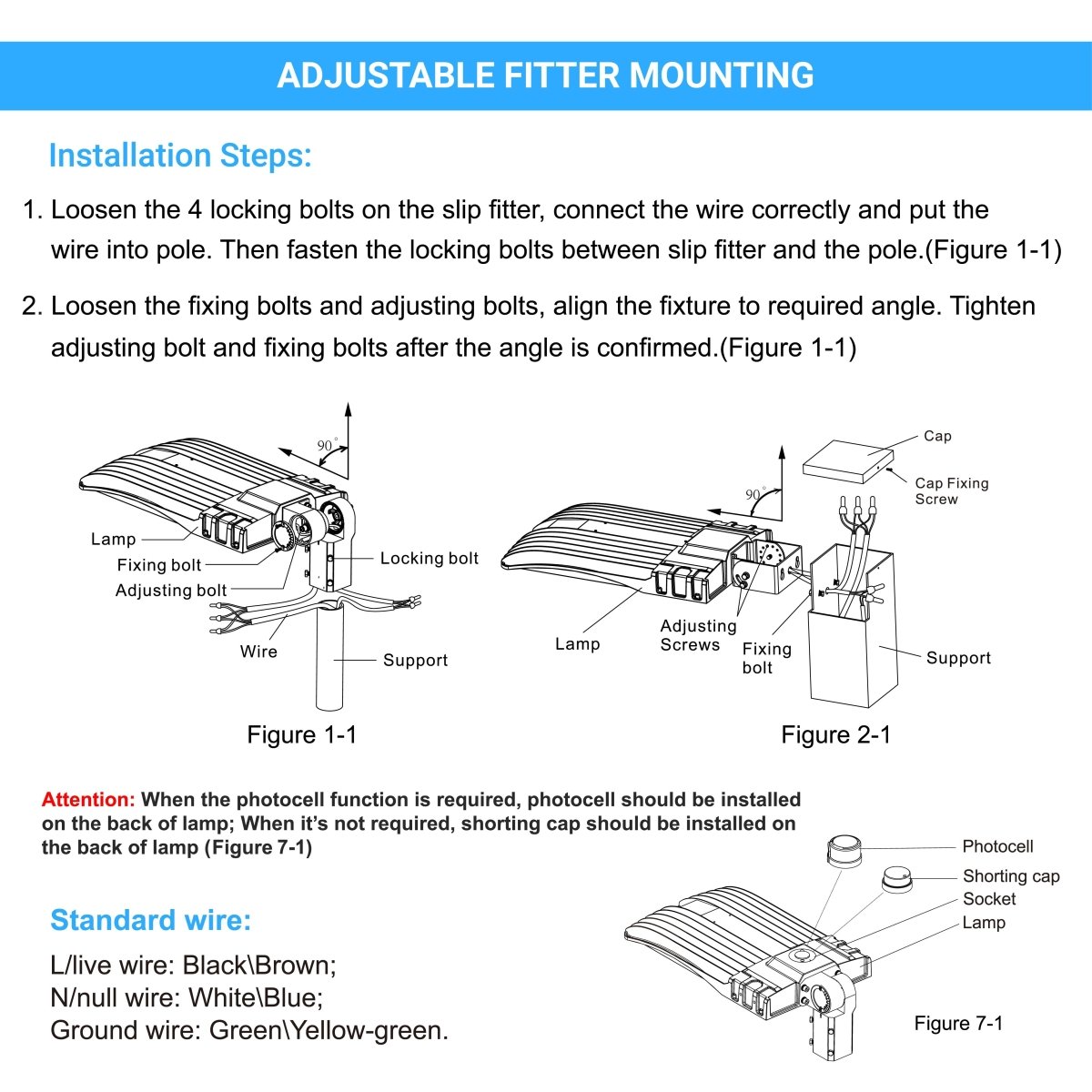

Extremely easy to install, these lights come with a universal mount, giving you the option to install them in any desired location be it a yoke, adjustable slip fitter, knuckle mounting, or just a plain wall.

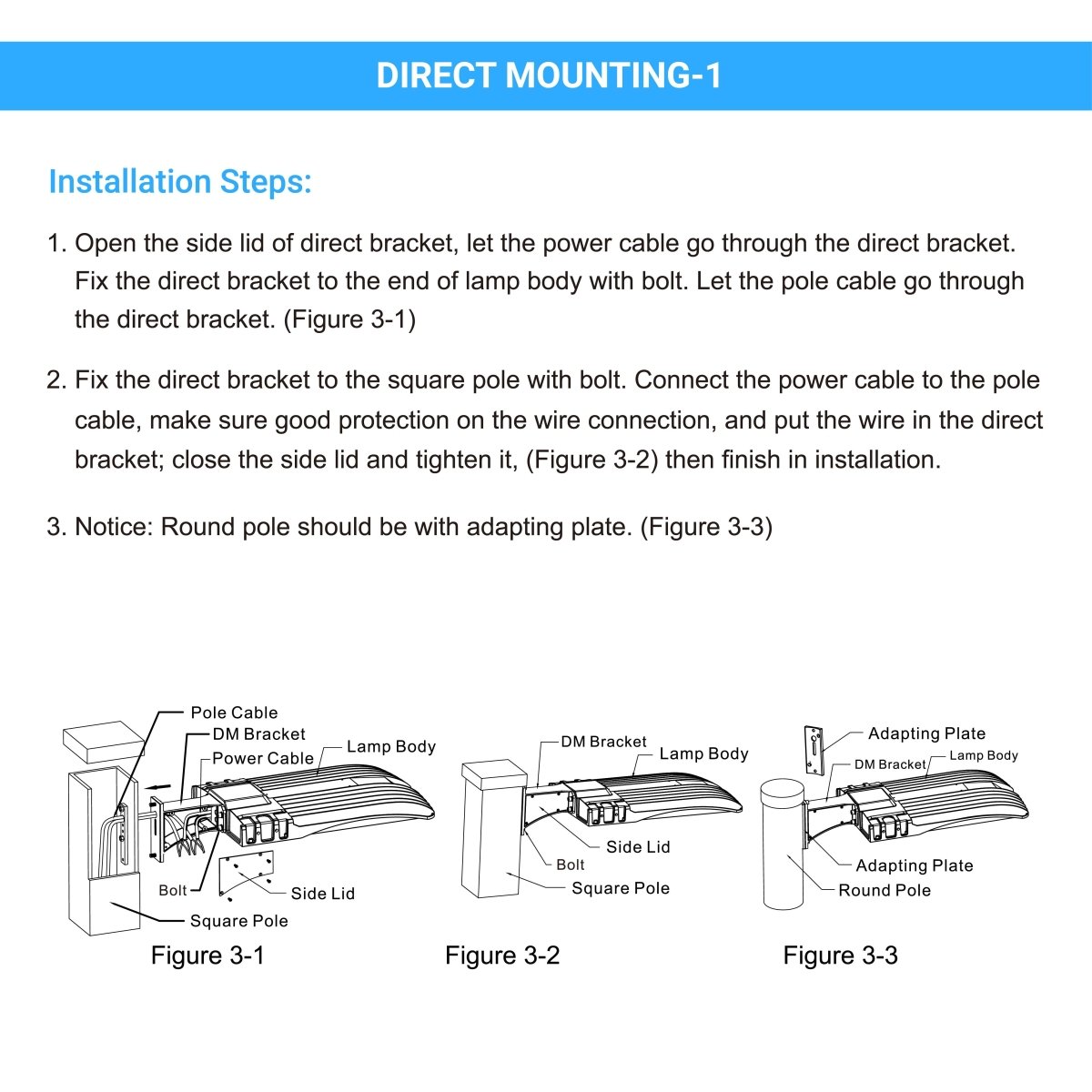

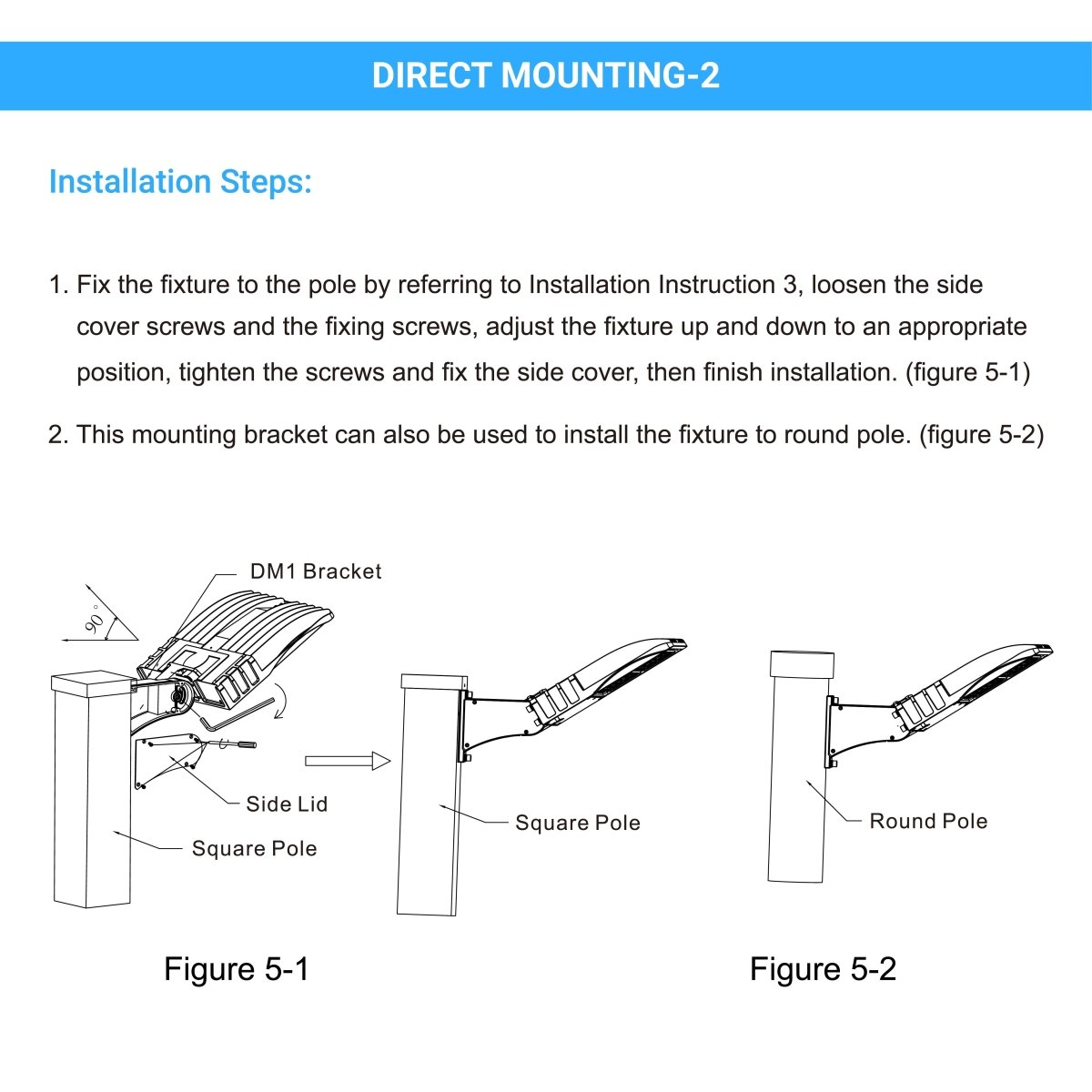

LEDMyplace offers one of the best mounting options that lower your installation costs by enabling a hassle-free, easy self-installation. This is suitable for both kinds of poles - round, square and also for wall mounting with the flexibility to adjust the head. Apart from easy self-installation, the universal mounting option also reduces your time by not requiring any re-drilling or cutting any pole tops when allowing for a change in the mounting process. With just two holes inside the poles and with just two bolts, you can easily undertake Universal Mounting. Our 300W LED pole light luminaire thus enables mounting in two ways -- vertical and horizontal. And, what you get out of these options is -- an enhanced optical control and to a certain degree the luminaire efficiency.

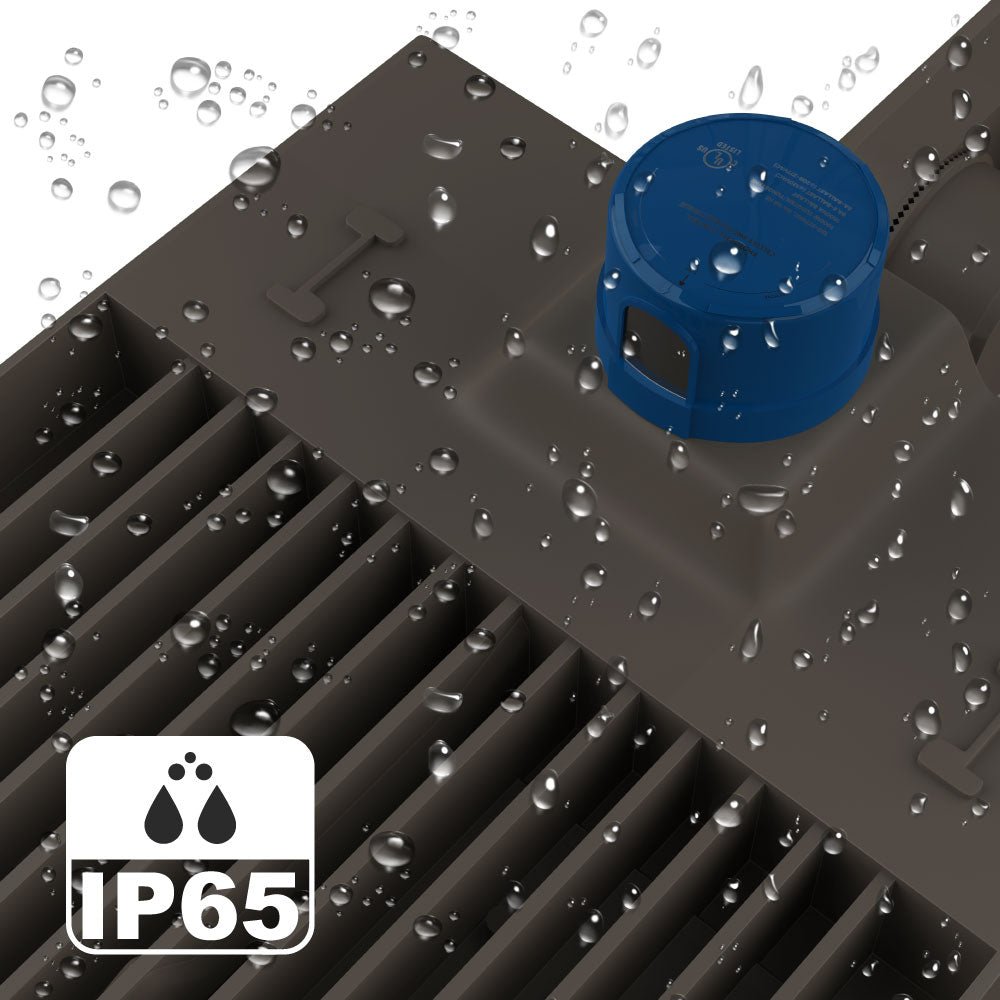

An IP65 Rating for Water-Resistance:
This LED pole light comes with an IP65 certified driver that can withstand harsh weather conditions. The lighting fixture is designed and tested to resist ingress of dust, dirt, or water (from the water jet or rainfall) making them dust and splash-proof. Hence, these LED Pole lights are ideal to use in outdoor locations where there are chances of dust, dirt, and dampness.
Polycarbonate Optics - For Optimal Performance and Durability:
Polycarbonate is used as an outer coating for our LED Pole light which results in optimal lighting performance and durability. The polycarbonate is responsible for dimensional stability, and high resistance towards external heat and any other impact.
Rugged Construction:
LED Pole lights have a robust build and simple design. With rugged aluminum casing on the outside, our outdoor area lights are built for durability. These lights can handle wind, dust, moisture, or snow. With a sturdy build and a tested lifespan of 50,000 hours our LED lights are a superior luminaire compared to HID or metal-halide lamps.

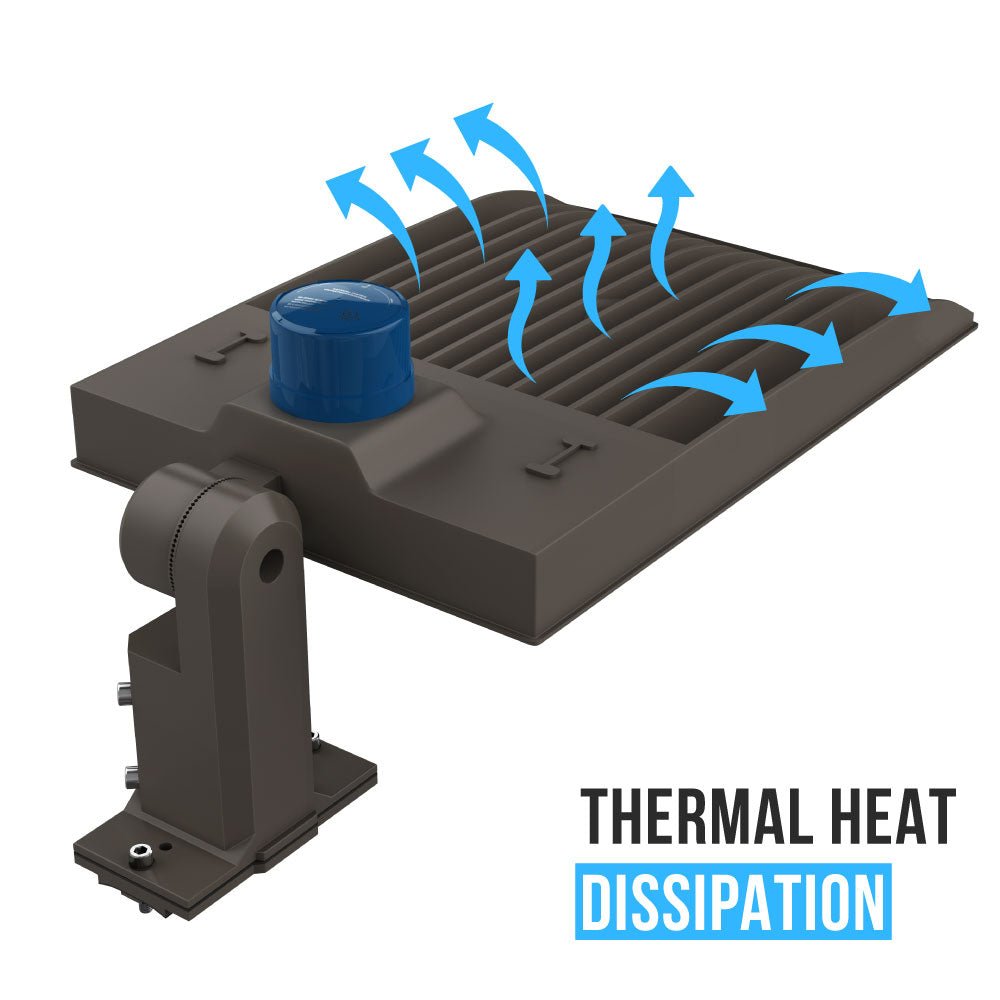

Thermal Heat Dissipation:
The High performance modular LED street light fixtures are engineered to remove heat through quality thermal management. For efficient and effective dissipation of heat, aluminum is used in the heat sink inside these high voltage pole lights. Being a good conductor aluminum can dissipate heat more easily. Giving these lights better durability and performance.
The PCB mounted LED technology comprised of multi-cluster LED's on single metal core board and is available in various color temperature of 5700K with CRI of 80 minimum. Polycarbonate prismatic optics ensure longevity and maximize dirt and bug resistance. Zero uptight optics reduce sky glow and meets Dark Sky requirements. Our special polycarbonate optics provide an overlapping pattern on application space eliminating dark spots. The use of ultra wide angled polycarbonate optics provides high application efficacy, uniformity, and glare control, with more uniformed light distribution, especially over wide areas and spaces.
Premium LED Chips:
Customer satisfaction is our first priority, that's why we ensure the best quality by using premium quality chips inside our LED light fixtures making them work with the highest operational efficiency.
The dimmable fixtures are the ideal replacement for traditional incandescent metal halide bulbs in terms of light quality, output, and compatibility. LEDMyplace's wide array of dimmable lighting results in easy to adjust light intensity at the location. Even at very minimal light levels, these Pole Lights remain stable and pure.
>80 CRI:
The LED Pole light has a Color Rendering Index(CRI) of 80, which means the colors you see under this light are accurate up to 70% compared to daylight(CRI=100).
Low-Cost Maintenance:
The LED pole lights are extremely low maintenance as it uses the latest LED technology. Moreover, with a low lumen depreciation, these lights function flawlessly until the end of their lifespan reducing maintenance costs.

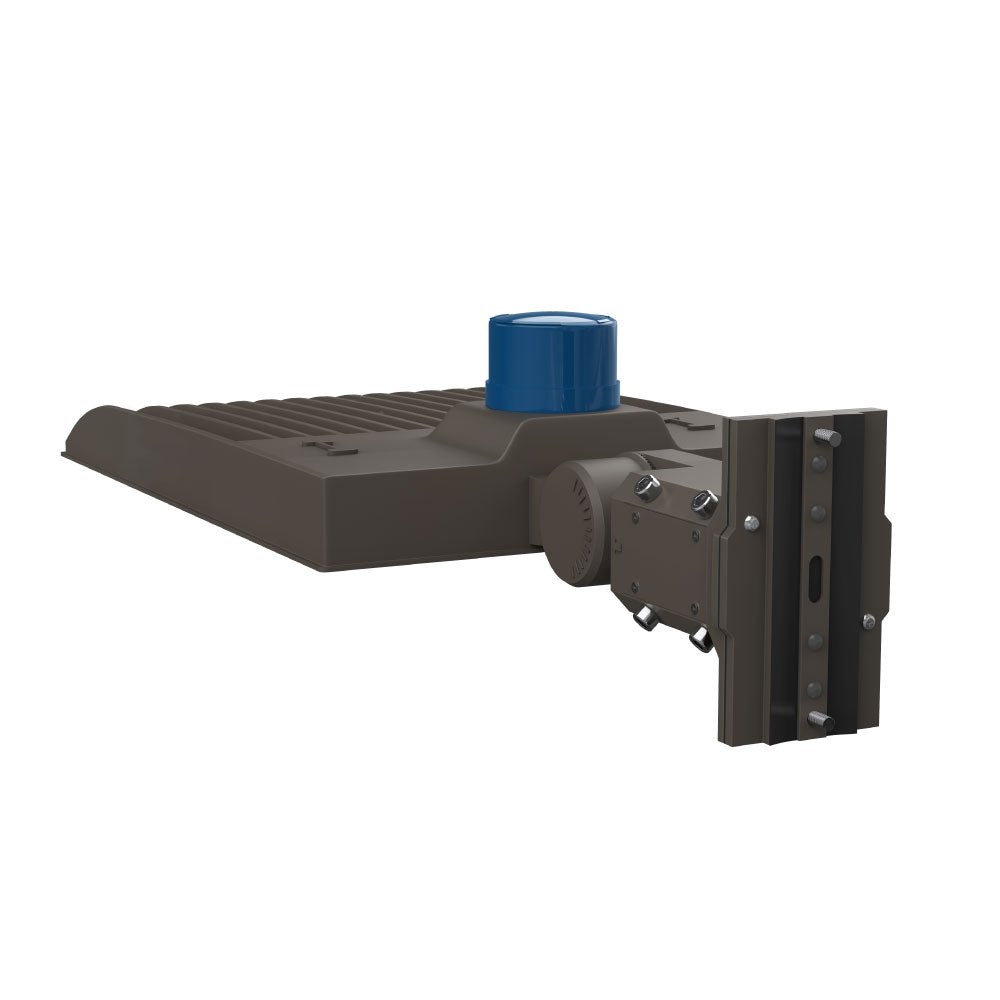

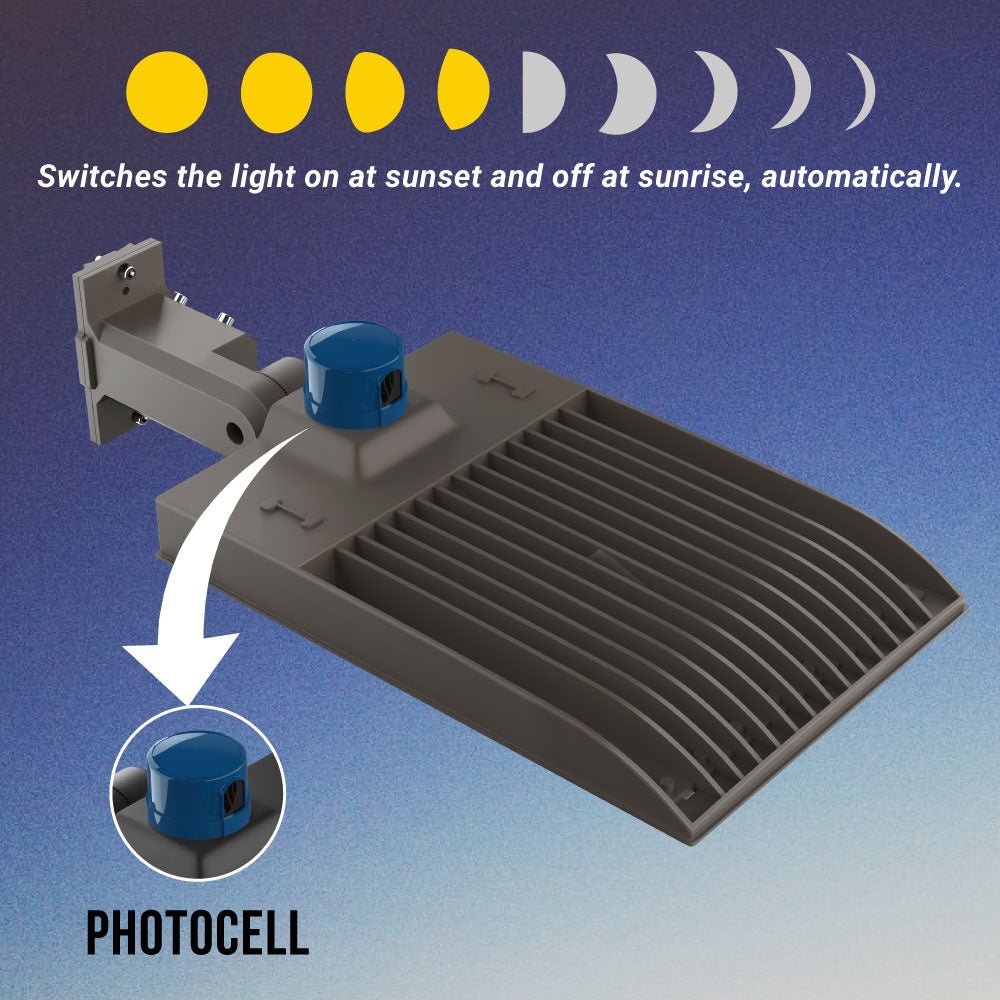

Depending upon the amount of light reaching the fixture, the Dusk to Dawn sensor gets automatically trigerred. This sensor light fixture will Auto On at night, Auto off in Daytime, Built -in Photocell Sensor will work automatically according to surrounding brightness. These sensors improve the security and safety at the location by automatically turning on lights when it gets dark or they detect motion. This results in auto-energy saving when lights get turned off.
It is required to test the luminaires for assuring that the fixtures are resistant to vibration. All our LED Lights have cleared pre-qualified tests for vibration. The vibration testing makes sure that the LED fixtures do not have any lack such as; loose parts, structural damage, power off, or any other anomalies.

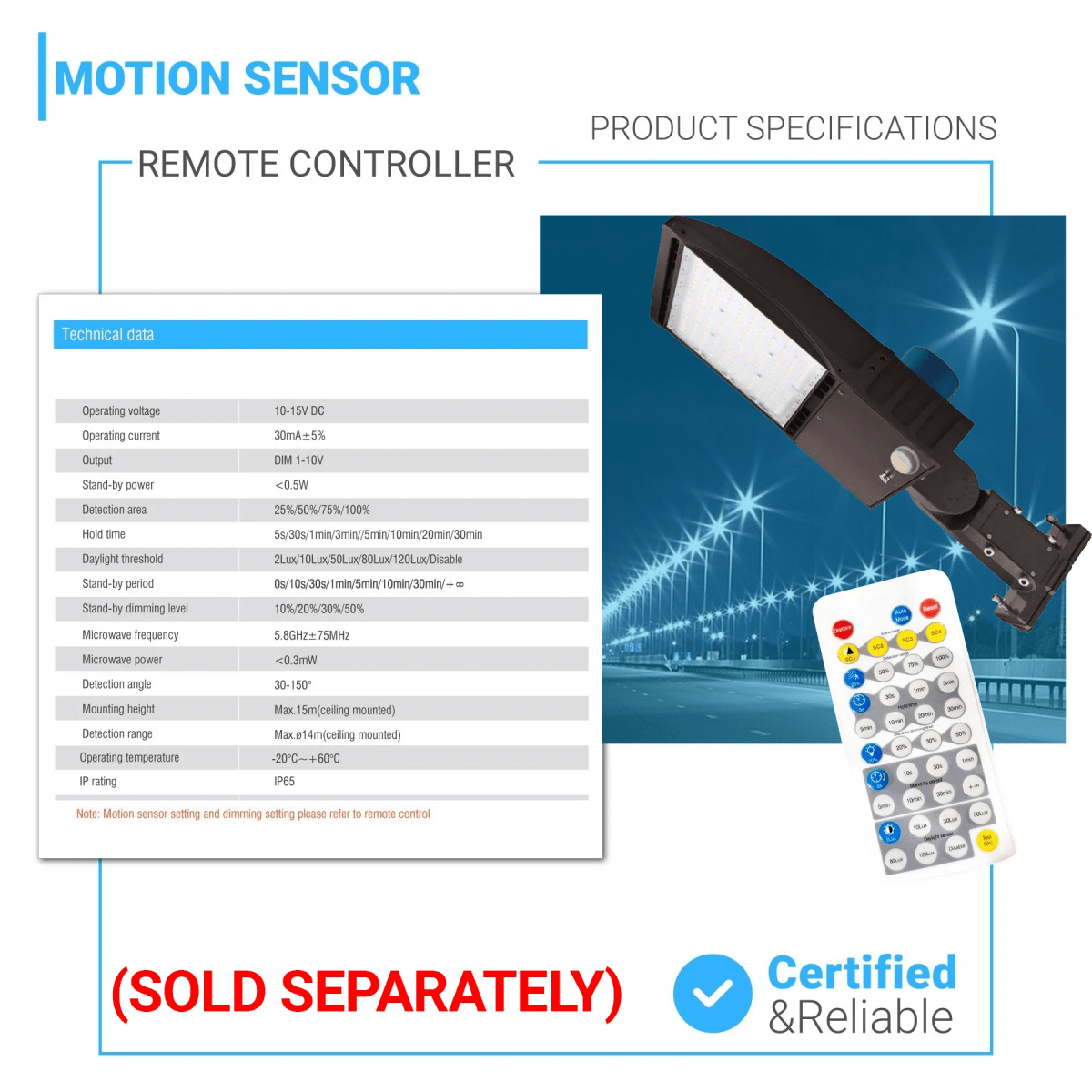

This LED Pole light has an active motion detectors. Motion can be detected through almost any surface that passes through it. The sensors allow energy saving without compromising comfort. With the combination with 1-10V dimmable drivers, they can achieve multi step dimming function, which is perfect for use in some areas that requires a light change notice before totally switch off.
Rebate Eligible:
LED pole lights are DLC-approved products, which makes you eligible for rebates and other incentives.
This product is compatible with the following dimmers. These dimmers work perfectly with our lights.
**For any other Dimmer please contact our customer support or check with your electrician.
| Beam Angle: | 150x85° Beam Angle |
| CCT: | 5700 Kelvin |
| Color Rendering Index(CRI): | >80 CRI |
| Dimensions (L x W x H): | 29.7 x 15.2 x 6.3 |
| DLC Listed: | Yes |
| Housing: | Aluminum |
| Life Hours: | 50,000 Hours Lifetime |
| MPN (Part No.): | PL016 |
| Replaces: | 1050 Watt Replacement |
| Voltage: | 120-277 Volt |
| Wattage: | 300 Watt |
| Operating Temperature: | -4 Degree F To +113 Degree F |
| Brand: | LEDMyplace |
| Certifications: | UL, DLC Listed |
| Color Temperature (Kelvin): | 5700 Kelvin |
| Dimmable: | 1-10V Dimmable |
| Fixture Color: | Bronze |
| IP Rating: | IP65 Rated |
| Lumens: | 39900 Lumens |
| Power Factor: | >0.9 |
| SKU: | WEN-S-G07-300WCT3A1-BRPMA&D5700K-W-MOTION-PCELL |
| Warranty: | 5 Years |
| Weight: | 23 lb |
1) how should light be ? 10 feet? 15? 2. How many watts to you think this would use in an 8 hrs? Want to hook this light up to solar system with its own battery bank and inverter. Thank you, Darrell
1. We recommend the light be at least 15ft up, anywhere from 15ft-30ft is preferred.
2.It doesn't use any more than the 300W it is, as it will always be a 300W light. Now kilowatts are different.
3. We do not recommend doing that as it will void your warranty.
What is the surge protection rating?
Its 10KV surge protected
