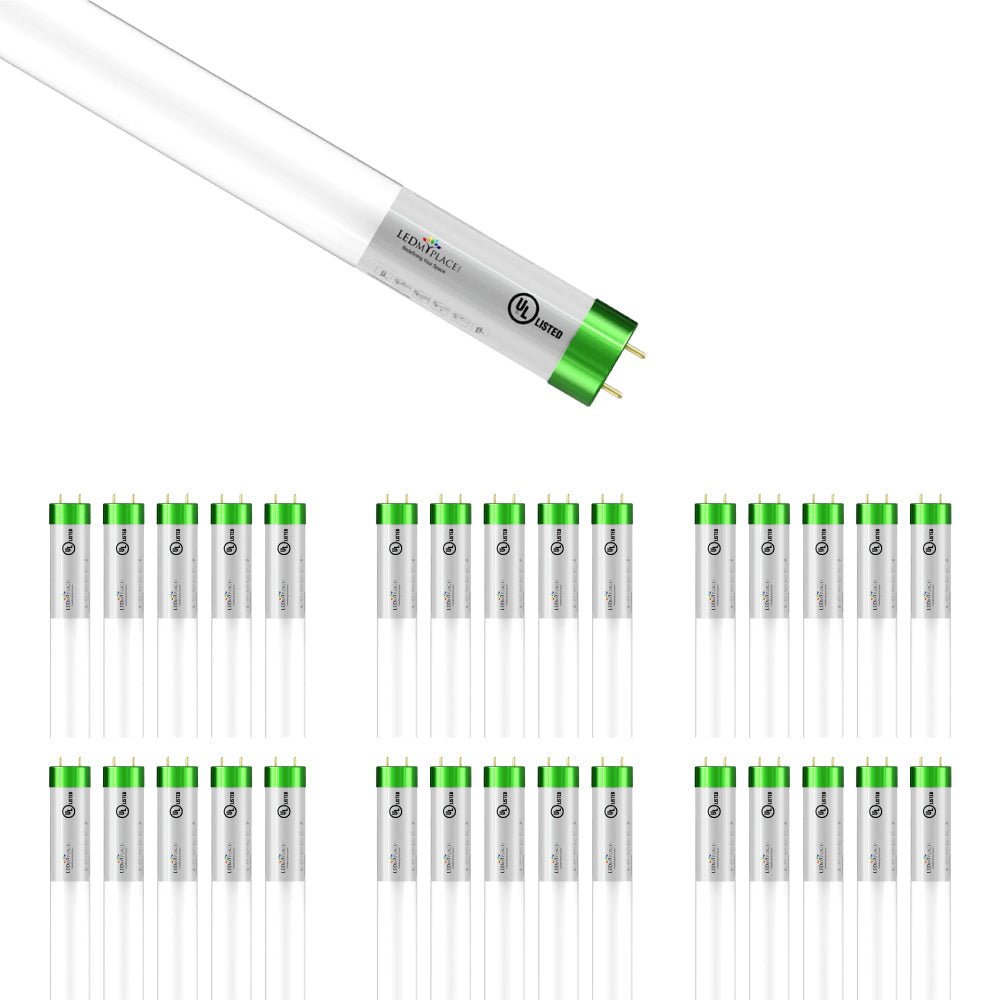

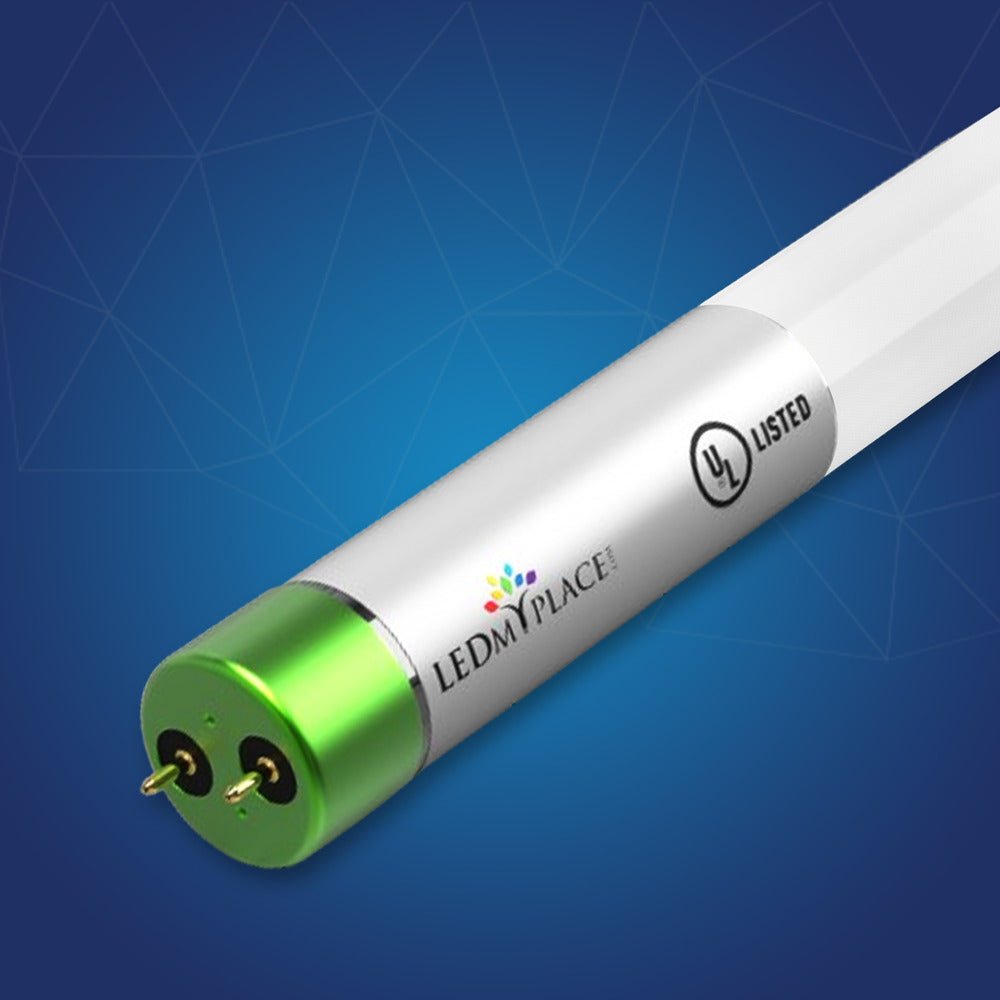

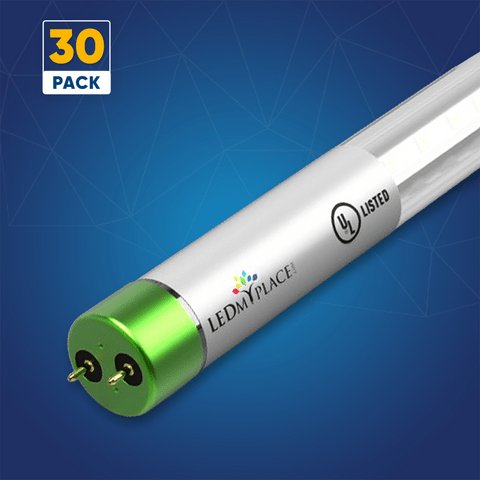

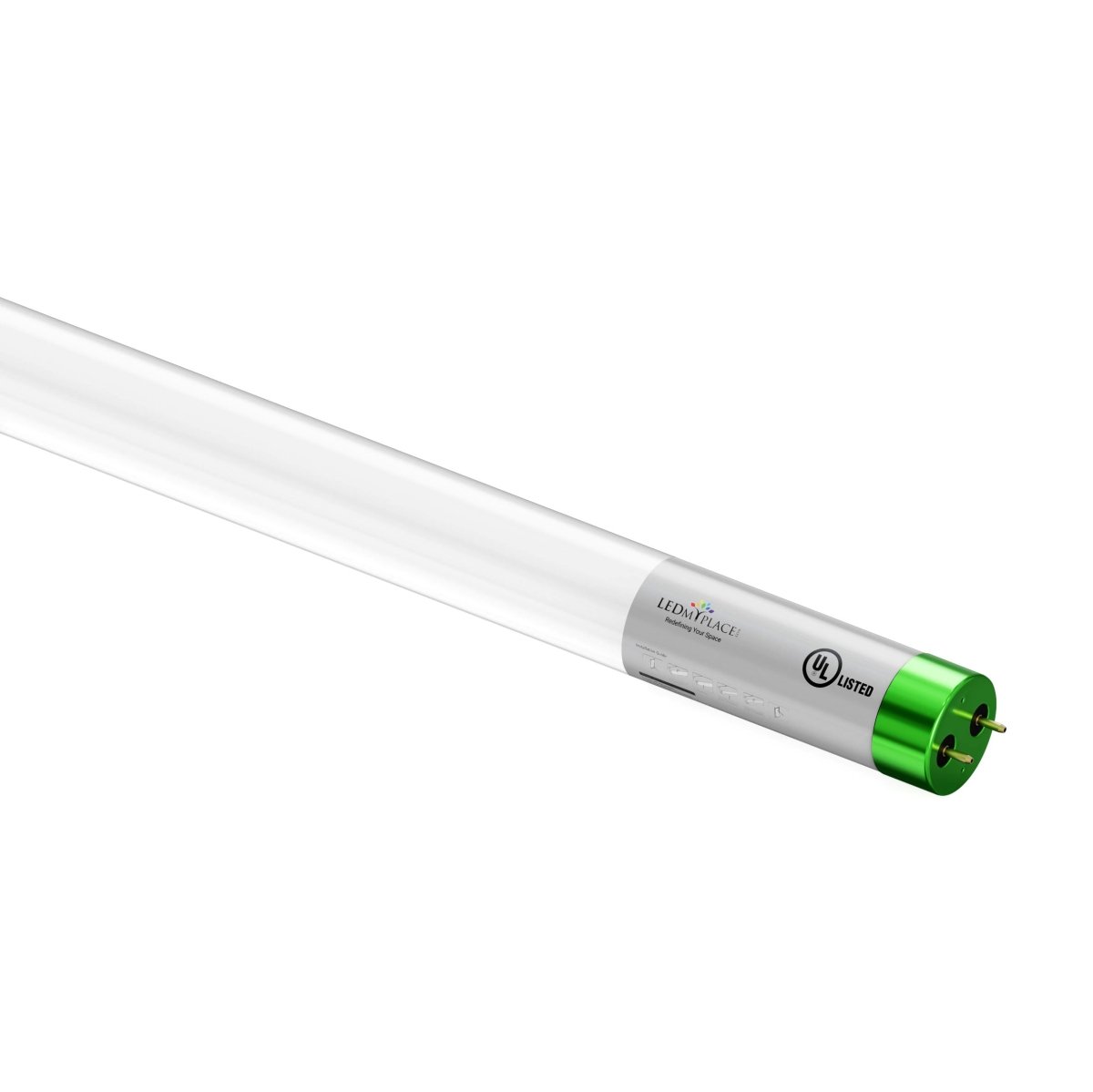

The 4ft LED Tube of 18W while delivering a significant amount of lumens can replace any T8, T10 or T12 fluorescent tube fixture of 50W and bring incredible energy-savings. This product with a beam angle of 220° and 6500K (cool white light) color temperature works great for any commercial or industrial setting. Being frosted, the tube can provide for even and uniform lighting. his tube can work with & without a ballast. kindly check the ballast compatibility list. Being hybrid in design, this tube can work with or without the existing ballast. The UL listing ensures complete safety of product use. You have a completely hassle-free manufacturer’s warranty for at least 5 years on this product.
Features of 4ft LED Tube Glass 18 Watt 6500 Kelvin

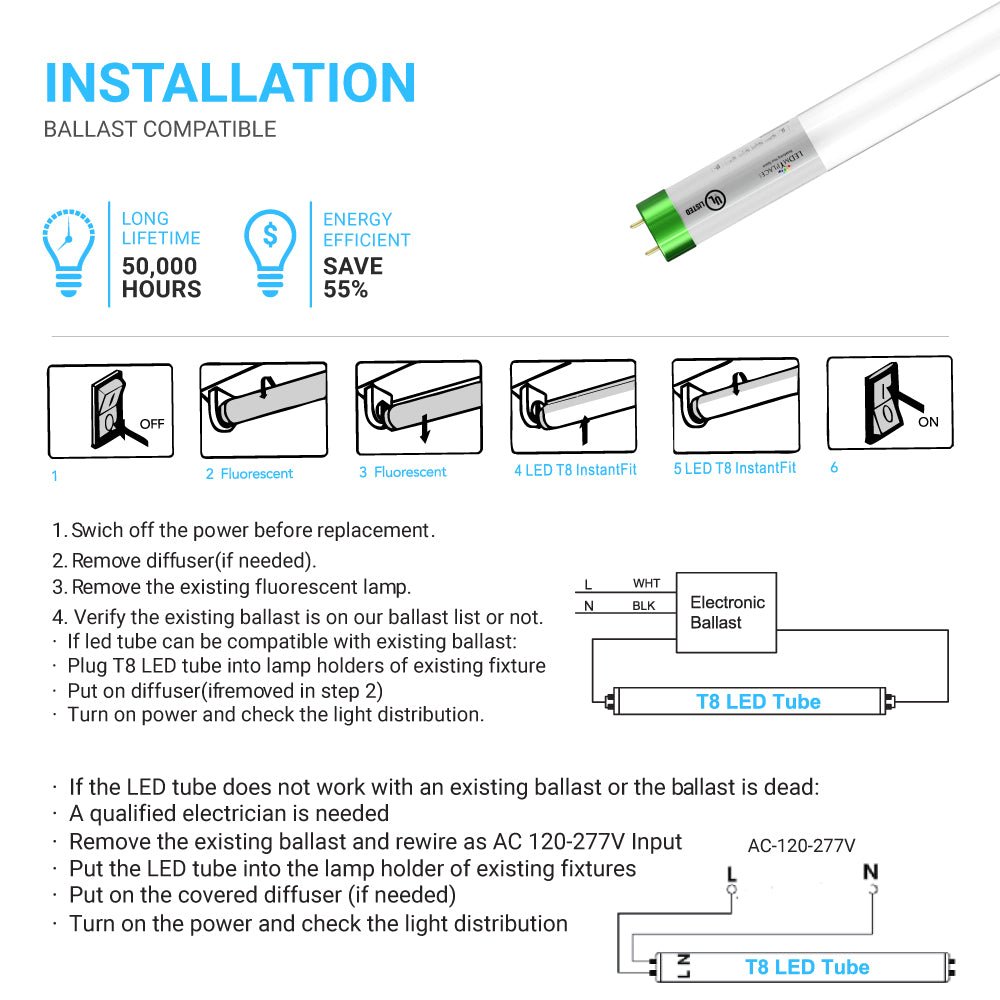

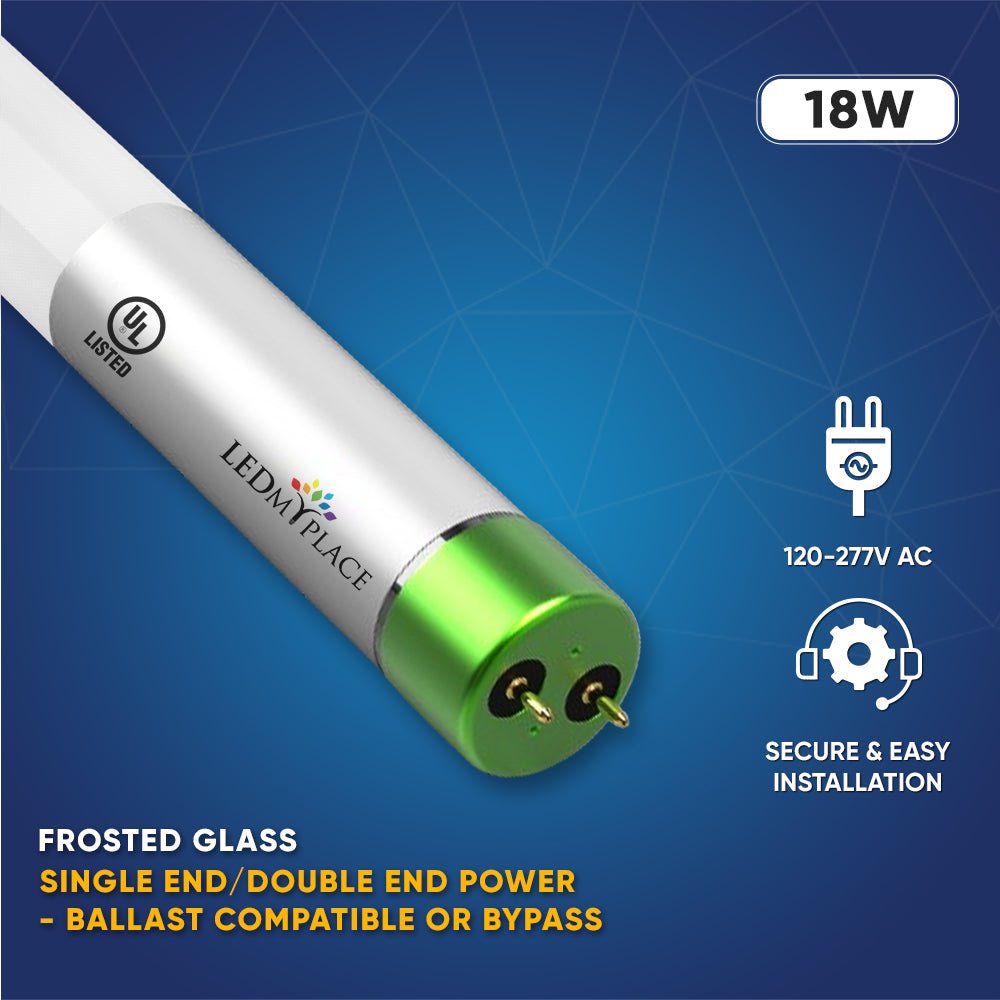

Some LED tubes are hybrid tubes or Type A+Type B in which case these tubes are flexible to work with the ballast or work without the ballast. They can be wired directly if there is a need for ballast bypass and can be plugged-in after removing the existing fluorescent tube fixture if it is found to be compatible with the existing ballast.

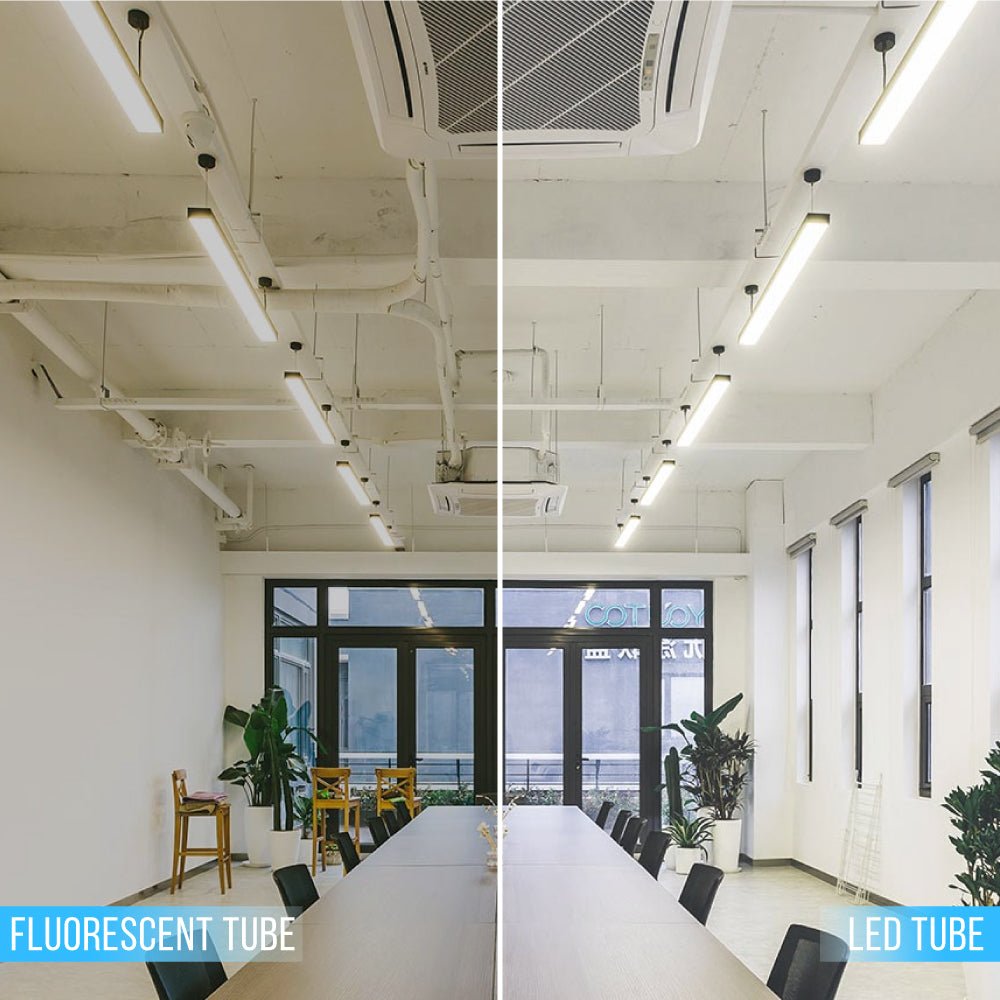

Whether it’s 2ft, 4ft or 8ft LED tube, one of the jaw-dropping features of LED tubes is that they don’t flicker unlike what you would have definitely observed in case of fluorescent tubes. The LED tubes start instantly and once they start, they don’t flicker and produce a humming sound.
The LED tubes accepts an input voltage of 120V-277V. You can go for a waterproof transformer in case you don’t have this voltage and wish to convert this voltage range to some other.
The LED tubes will require low or no maintenance if you are going for a ballast bypass option of LED tube installation. Though not very frequent, but you may have to replace the ballasts once in the total lifetime of LED tubes, if you are going for ballast compatibility option and hence you will have to bear with slightly higher maintenance costs when choosing the former option.
The lifespan of LED tubes is no less than 50,000 hours or 5.7 years, if the tubes are operated upon for 24 hours a day. Can last longer, if the tubes are kept ON for only 12 hours a day.
The CRI is greater than 80 for LED tubes, whatever object comes in the light distribution range appears to be real and natural up to 80% extent on a CRI scale of 1-100 and as it would have appeared in the natural light.
The 220 degrees or ultra wide beam angle is made use of when large areas need to be covered. All our LED tubes whether clear or frosted have a 220-degree beam angle.
The LED tubes can save energy up to 75% in extreme contrast with fluorescent tubes that consume lot of energy to bring you a higher energy bill. We highly recommend going for our LED tubes that are an excellent combo of lumen brightness and energy-savings.
The LED tubes have a big heat sink made of aluminum and that’s a pretty good reason as to why the LED tubes don’t warm up too soon to be in Consistent operation. This is in extreme contrast with the fluorescent tubes that warmed up too soon and required cooling down to operate efficiently.
Embedded inside the LED tube is a high-quality standalone chip -- SMD LED -- made from many numbers of chips to ensure high performance and reliability.
| Beam Angle: | >220° Beam Angle |
| Brightness: | 2400 Lumens |
| Certifications: | UL, RoHS Listed |
| Color Temperature (Kelvin): | 6500 Kelvin |
| Fixture Color: | Frosted |
| IP Rating: | IP20 Rated |
| Life Hours: | 50,000 Hours |
| Metal Halide Equal: | 50 Watt Replacement |
| Power Factor: | ≥0.9 |
| Shape: | Tube |
| UPC: | 719034338194 |
| Warranty: | 5 Years |
| Weight: | 0.2 lbs |
| Brand: | LEDMyplace |
| CCT: | 6500 Kelvin |
| Color Rendering Index(CRI): | >80 CRI |

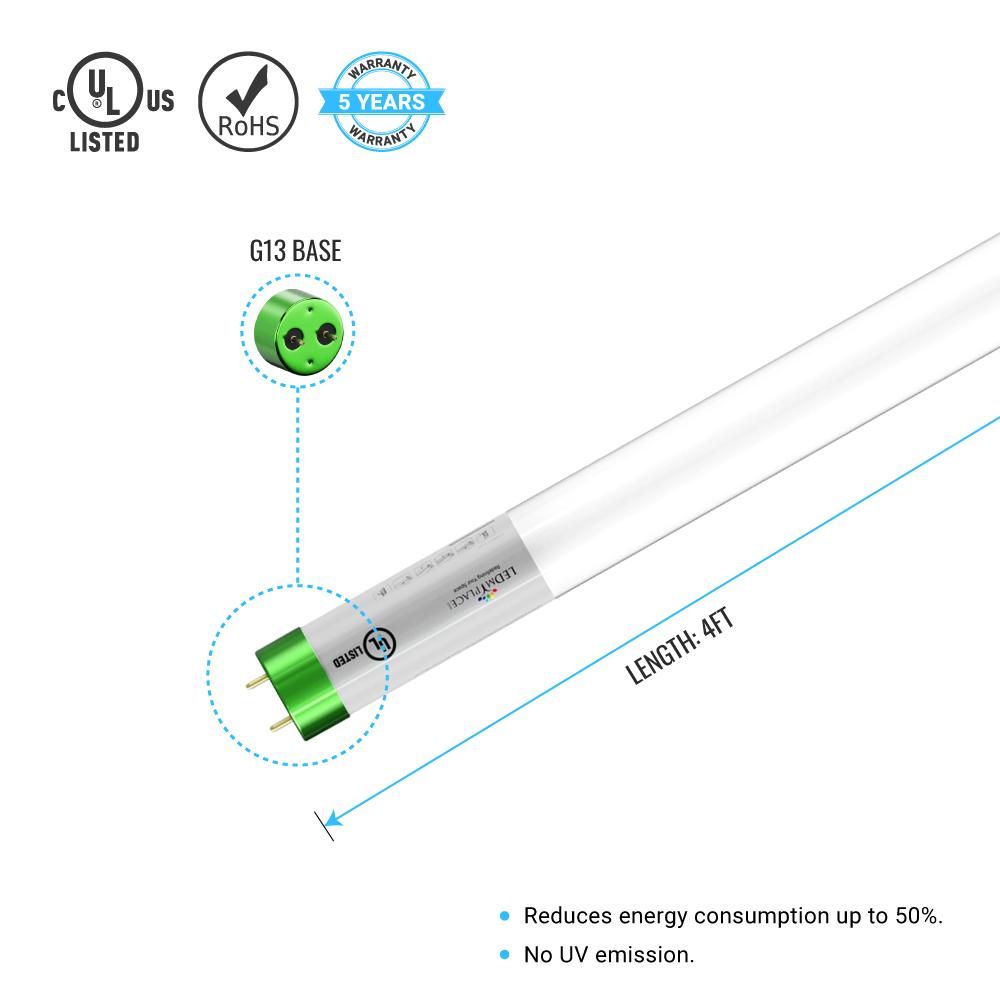

| Dimensions (L x W x H): | 47.76*1.02*1.02 |
| Housing: | Glass |
| LED Type: | SMD LEDs |
| Lumens: | 2400 Lumens |
| MPN (Part No.): | TB015 |
| Safety Rating: | UL, RoHS Listed |
| SKU: | WEN-T8GABUL1218M-65-A. |
| Voltage: | 120-277V |
| Wattage: | 18 |
| Operating Temperature: | -4 Degree F To +113 Degree F |
Is the TB015 a double ended or single ended tube for wiring without ballast?
Since it's a Hybrid, even with the ballast, you have the option of wiring as either ;
Single-Ended Power with 1 non-shunted tombstone at the wired end.
or
Double-Ended power with regular tombstone at each end
